SKU:

VW3A5208

sinus filter - 300 A - for Altivar variable speed drive

$12,834.74 INC GST

Qty:

Available for Shipping : 25-Jun-2025

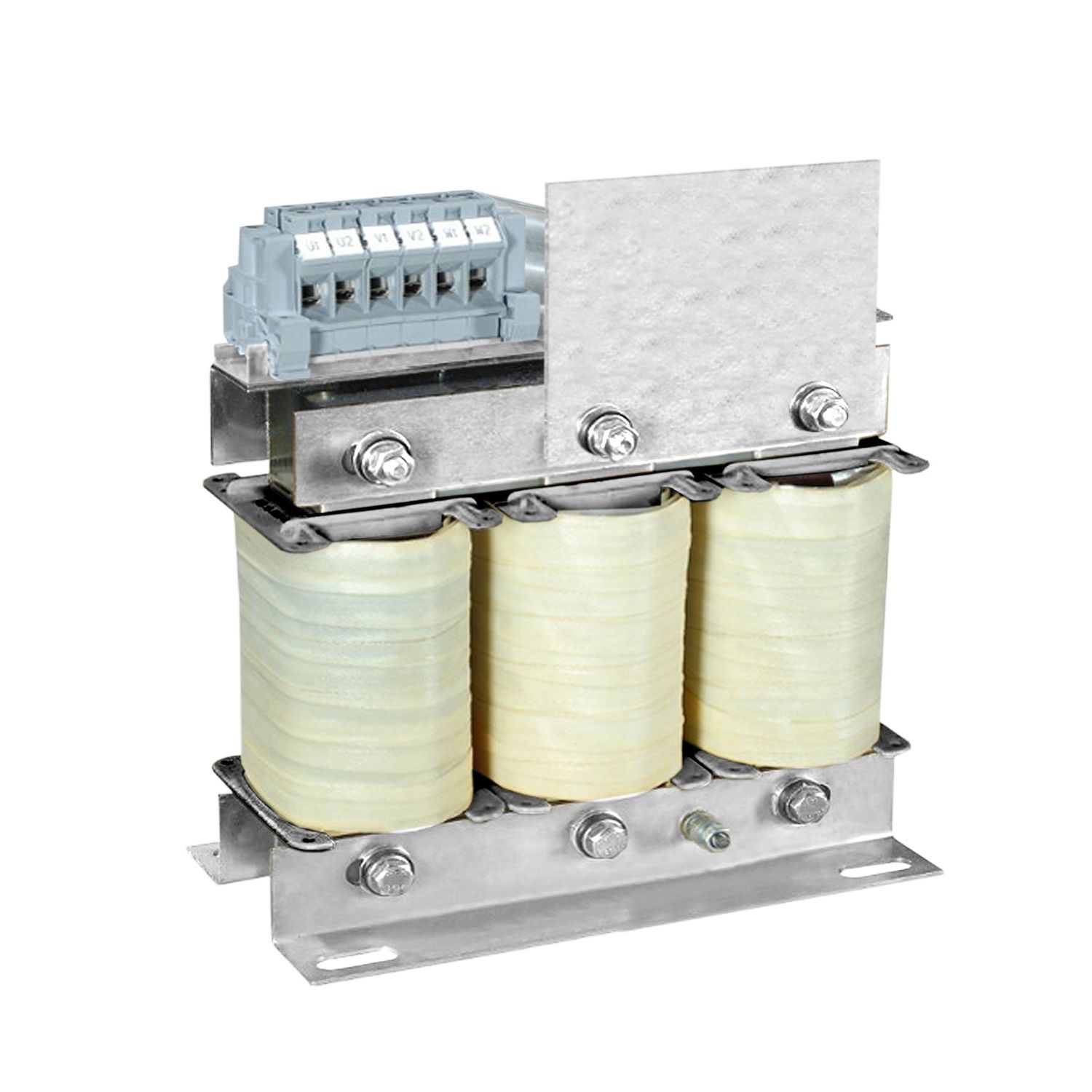

sinus filter - 300 A - for Altivar variable speed drive

Manufacturer: Schneider Electric

Catalogue

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Range compatibility	Altivar 61, Altivar 71, Altivar 61Q, Altivar 71Q
[In] rated current	300 A
Thermal losses	1360 W at 100 Hz
Product specific application	output filter
Product compatibility	ATV71HD55M3X, ATV71HC16N4, ATV71HC13N4, ATV61QC16N4, ATV61QC13N4, ATV61HD75M3X, ATV61HD55M3X, ATV61HC16N4, ATV71QC16N4, ATV71QC13N4, ATV71HD75M3X, ATV61HC13N4
Permissible voltage	500 V AC
Product or component type	sinus filter
Switching frequency	4...8 kHz
Maximum output frequency	100 Hz
Complementary
Maximum voltage drop at rated load	10 %
Max current	1.5 x nominal current (duration = 60 s)
Electrical connection	bare wires diameter: 11 mm
Net weight	165 kg
Environment
IP degree of protection	IP00
Operating altitude	1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating
Ambient air temperature for storage	-40-65 °C
Pollution degree	2 conforming to EN 50178
Relative humidity	0-95 %
Vibration resistance	1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2
Environmental characteristic	3S1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3B1 conforming to IEC 721-3-3
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation	-10-40 °C (without current derating), 40-50 °C (with current derating 1.5 % per °C)
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	77.0 cm
Package 1 Width	35.0 cm
Package 1 Length	54.0 cm
Package 1 Weight	171.5 kg
