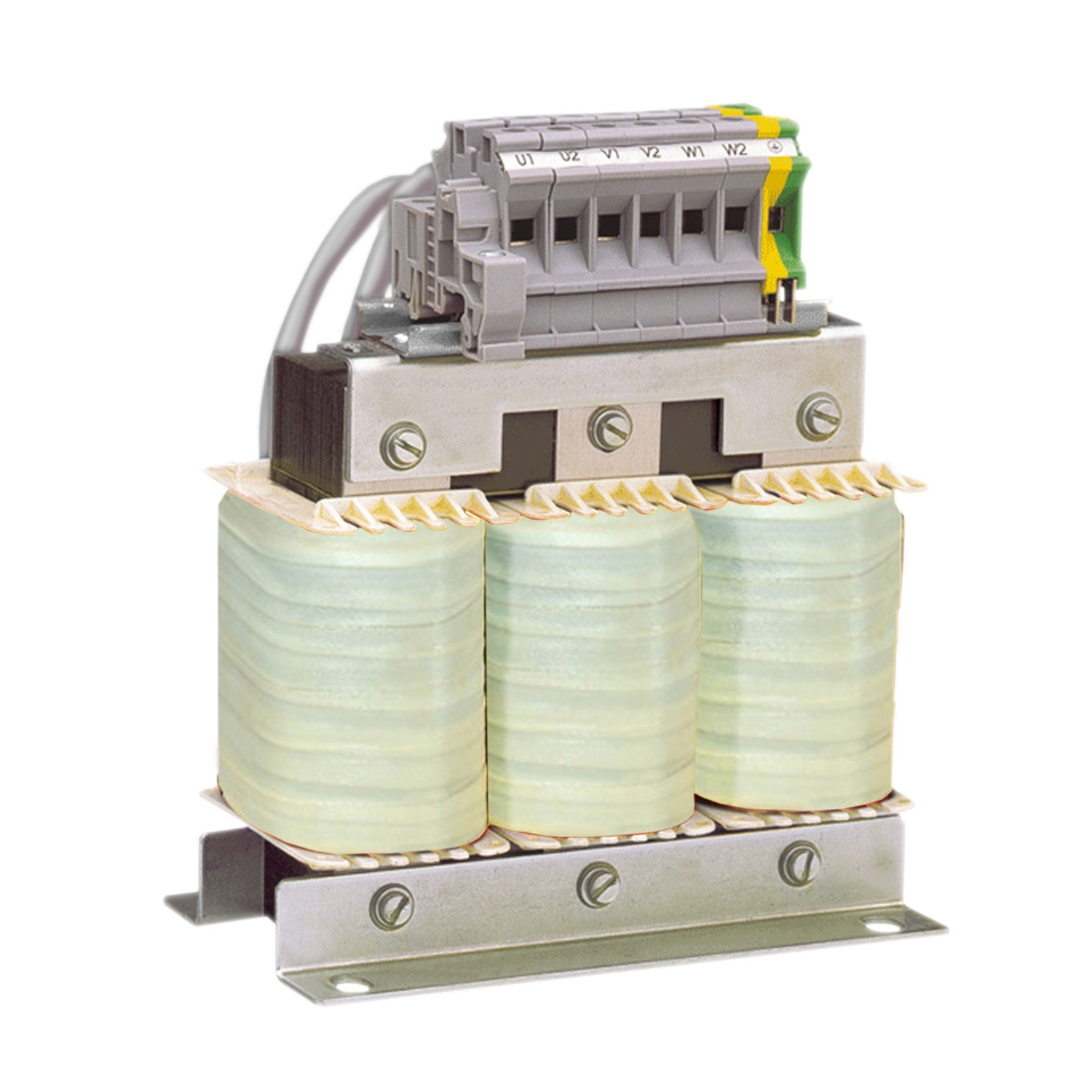

Picture of motor choke, Altivar, for variable speed drive, 759A, IP00
SKU:

VW3A5107

motor choke, Altivar, for variable speed drive, 759A, IP00

$5,086.02
Available for Shipping : 16-Jan-2025
Product Selector
motor choke, Altivar, for variable speed drive, 759A, IP00
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range. Its rated current equal to 759A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 93 kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Process ATV600, Altivar 71Q, Altivar 61, Altivar 61Q, Altivar Process ATV900, Altivar 71
[In] rated current 759 A
Product specific application output filter
Product compatibility ATV930 variable speed drive wall mount - 315 kW, 380...480 V, ATV930 variable speed drive wall mount - 250 kW, 380...480 V, ATV630 variable speed drive wall mount - 315 kW, 380...480 V, ATV630 variable speed drive wall mount - 250 kW, 380...480 V,  ATV71QC40Y,  ATV71QC31Y,  ATV71QC31N4, ATV71QC25N4,  ATV71HC50Y,  ATV71HC40Y,  ATV71HC40N4,  ATV71HC31N4, ATV71HC28N4,  ATV61QC50Y,  ATV61QC40Y,  ATV61QC40N4, ATV61QC31N4,  ATV61HC63Y,  ATV61HC50Y,  ATV61HC40N4, ATV61HC31N4, ATV61HC25N4, ATV71HC25N4
Sale per indivisible quantity 3
Product or component type motor choke
Electrical connection tag connector 2 x M12
Complementary
Thermal losses 598 W
DV/dt 1000 V/µs max at 690 V, 750 V/µs max at 500 V, 500 V/µs max at 400 V
Net weight 93 kg
Ambient air temperature for operation -10-50 °C
Maximum motor cable length 400 m unshielded cable P motor 400-630 kW at 500...690 V 2, 250 m shielded cable P motor 400-630 kW at 500...690 V 2, 250 m unshielded cable P motor 400-630 kW at 500...690 V 1, 150 m shielded cable P motor 400-630 kW at 500...690 V 1, 250 m unshielded cable P motor 250-355 kW at 380...480 V 1, 200 m shielded cable P motor 250-355 kW at 380...480 V 1
Maximum output frequency 100 Hz
Environment
Ambient air temperature for storage -25-70 °C
IP degree of protection IP00, IP20 (with kits VW3A9612,613)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 75.000 cm
Package 1 Width 60.000 cm
Package 1 Length 80.000 cm
Package 1 Weight 100.500 kg

Related products

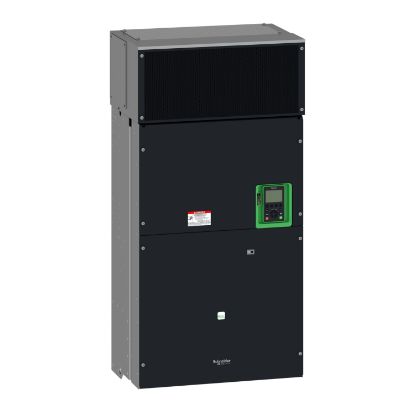

variable speed drive, Altivar Process ATV600, ATV630, 250kW, 400hp, 380 to 480V, IP00
