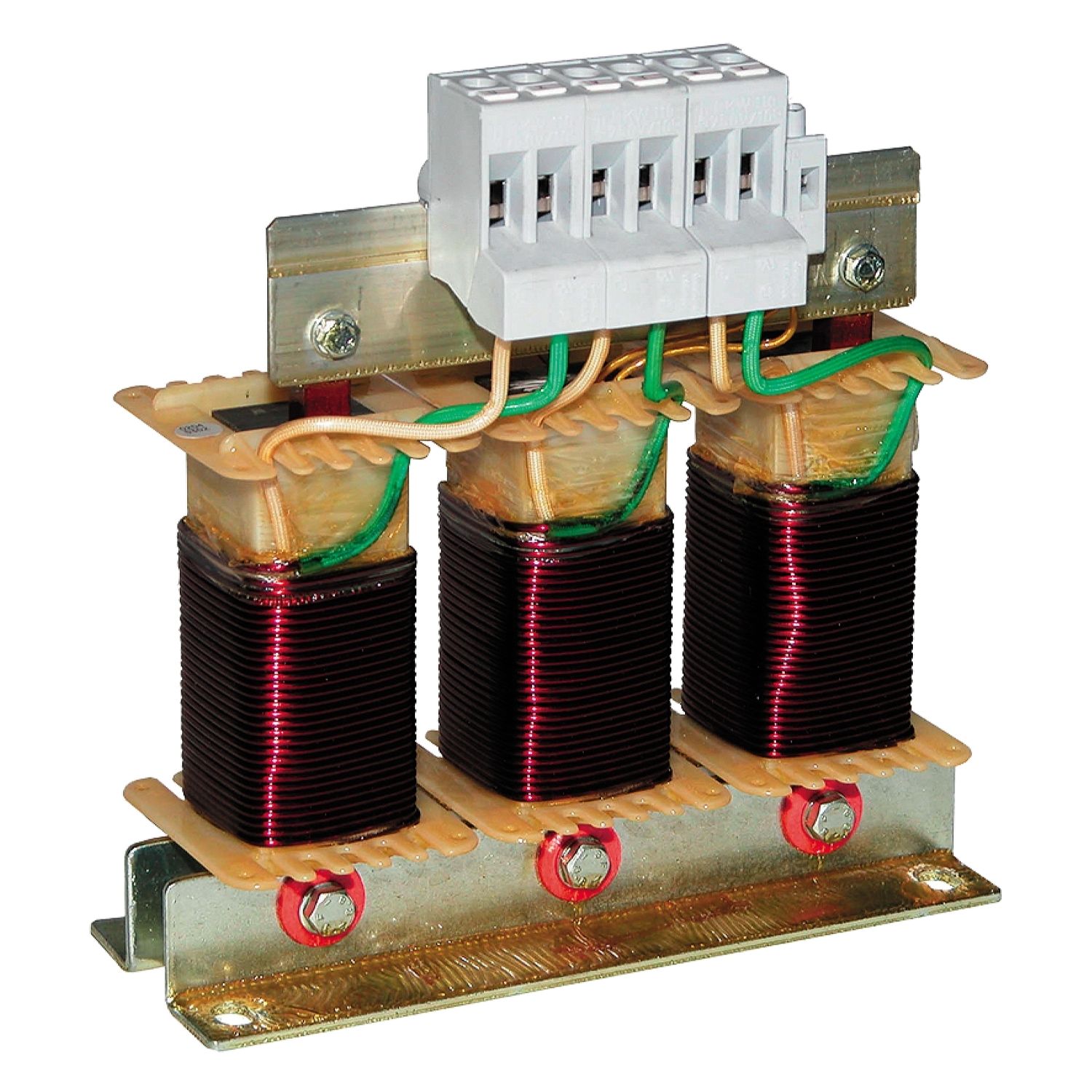

Picture of motor choke, Altivar, for variable speed drive, 90A
SKU:

VW3A5103

motor choke, Altivar, for variable speed drive, 90A

$967.64
Available for Shipping : 30-Oct-2024
Product Selector
motor choke, Altivar, for variable speed drive, 90A
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range. Its rated current is equal to 90A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 10kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Process ATV600, Altivar Process ATV900, Altivar 71, Altivar 61, Altivar 212
[In] rated current 90 A
Product specific application output filter
Product compatibility ATV930 variable speed drive, 15 hp, 600 V three phase, ATV930 variable speed drive, 10 hp, 600 V three phase, ATV930 variable speed drive, 7.5 hp, 600 V three phase, ATV930 variable speed drive, 5 hp, 600 V three phase, ATV930 variable speed drive, 3 hp, 600 V three phase, ATV630 variable speed drive, 15 hp, 600 V three phase, ATV630 variable speed drive, 10 hp, 600 V three phase, ATV630 variable speed drive, 7.5 hp, 600 V three phase, ATV630 variable speed drive, 5 hp, 600 V three phase, ATV630 variable speed drive, 3 hp, 600 V three phase, ATV930 variable speed drive - 11 kW, 500...690 V three phase, ATV930 variable speed drive - 7.5 kW, 500...690 V three phase, ATV930 variable speed drive - 5.5 kW, 500...690 V three phase, ATV930 variable speed drive - 4 kW, 500...690 V three phase, ATV930 variable speed drive - 3 kW, 500...690 V three phase, ATV930 variable speed drive - 2.2 kW, 500...690 V three phase, ATV630 variable speed drive - 11 kW, 500...690 V three phase, ATV630 variable speed drive - 7.5 kW, 500...690 V three phase, ATV630 variable speed drive - 5.5 kW, 500...690 V three phase, ATV630 variable speed drive - 4 kW, 500...690 V three phase, ATV630 variable speed drive - 3 kW, 500...690 V three phase, ATV630 variable speed drive - 2.2 kW, 500...690 V three phase, ATV71WD37N4, ATV71WD30N4, ATV71HD37N4,  ATV71HD30Y,  ATV71HD22Y,  ATV71HD22N4,  ATV71HD22M3X,  ATV71HD18Y,  ATV71HD18M3X,  ATV71HD15Y,  ATV71HD15M3X,  ATV71HD11M3X,  ATV61WD37N4C,  ATV61WD37N4,  ATV61WD30N4C,  ATV61WD30N4,  ATV61WD22N4C,  ATV61WD22N4, ATV61HD37N4,  ATV61HD30Y, ATV61HD30N4,  ATV61HD22Y,  ATV61HD22N4,  ATV61HD22M3X,  ATV61HD18Y,  ATV61HD18M3X,  ATV61HD15Y,  ATV61HD15M3X,  ATV61HD11M3X,  ATV212WU75N4C,  ATV212WU75N4,  ATV212WU55N4C,  ATV212WU55N4,  ATV212WU40N4C,  ATV212WU40N4,  ATV212WU30N4C,  ATV212WU30N4,  ATV212WU22N4C,  ATV212WU22N4,  ATV212WU15N4C,  ATV212WU15N4,  ATV212WD11N4C,  ATV212WD11N4,  ATV212W075N4C,  ATV212W075N4, ATV212HU75N4, ATV212HU75M3X, ATV212HU55N4, ATV212HU55M3X, ATV212HU40N4, ATV212HU40M3X, ATV212HU30N4, ATV212HU30M3X, ATV212HU22N4, ATV212HU22M3X, ATV212HU15N4, ATV212HU15M3X, ATV212HD11N4,  ATV212HD11M3X, ATV212H075N4, ATV212H075M3X, ATV71WU75N4, ATV71WU55N4,  ATV71WD18N4,  ATV71WD15N4,  ATV71WD11N4, ATV71PU75N4Z, ATV71PU55N4Z,  ATV71PD11N4Z,  ATV71HU75Y,  ATV71HU75S6X, ATV71HU75N4,  ATV71HU75M3,  ATV71HU55Y,  ATV71HU55S6X, ATV71HU55N4, ATV71HU55M3,  ATV71HU40Y,  ATV71HU40S6X,  ATV71HU40M3,  ATV71HU30Y,  ATV71HU30S6X,  ATV71HU30M3,  ATV71HU22Y,  ATV71HU22S6X,  ATV71HU15S6X,  ATV71HD18N4,  ATV71HD15N4,  ATV71HD11Y,  ATV71HD11N4,  ATV61WU75N4C,  ATV61WU75N4,  ATV61WU55N4C,  ATV61WU55N4,  ATV61WD18N4C,  ATV61WD18N4,  ATV61WD15N4C,  ATV61WD15N4,  ATV61WD11N4C,  ATV61WD11N4,  ATV61HU75Y,  ATV61HU75S6X, ATV61HU75N4,  ATV61HU75M3,  ATV61HU55Y,  ATV61HU55S6X, ATV61HU55N4, ATV61HU55M3,  ATV61HU40Y,  ATV61HU40S6X,  ATV61HU40M3,  ATV61HU30Y,  ATV61HU30S6X,  ATV61HU30M3,  ATV61HU22S6X,  ATV61HD18N4,  ATV61HD15N4,  ATV61HD11Y,  ATV61HD11N4,  ATV71WU40N4,  ATV71WU30N4,  ATV71WU22N4,  ATV71WU15N4,  ATV71W075N4,  ATV71PU40N4Z,  ATV71PU30N4Z,  ATV71PU22N4Z,  ATV71PU15N4Z,  ATV71P075N4Z,  ATV71HU40N4,  ATV71HU30N4,  ATV71HU22N4,  ATV71HU15N4,  ATV71H075N4,  ATV61WU40N4C,  ATV61WU40N4,  ATV61WU30N4C,  ATV61WU30N4,  ATV61WU22N4C,  ATV61WU22N4,  ATV61WU15N4C,  ATV61WU15N4,  ATV61W075N4C,  ATV61W075N4,  ATV61HU40N4,  ATV61HU30N4,  ATV61HU22N4,  ATV61HU15N4,  ATV61H075N4
Sale per indivisible quantity 1
Product or component type motor choke
Electrical connection bare wires diameter: 9 mm
Complementary
Thermal losses 350 W
DV/dt 1000 V/µs max at 690 V, 750 V/µs max at 500 V, 500 V/µs max at 400 V
Net weight 10 kg
Protection type thermal protection by temperature-controlled switch, tripping temperature: 125 °C for <250 V AC, <0.5 A
Ambient air temperature for operation -10-50 °C
Maximum motor cable length 166 m unshielded cable P motor 37-37 kW at 380...480 V 1, 97 m shielded cable P motor 37-37 kW at 380...480 V 1, 150 m unshielded cable P motor 2.2-30 kW at 500...690 V 2, 100 m shielded cable P motor 2.2-30 kW at 500...690 V 2, 250 m unshielded cable P motor 2.2-7.5 kW at 500...690 V 2, 150 m shielded cable P motor 2.2-7.5 kW at 500...690 V 2, 100 m unshielded cable P motor 2.2-30 kW at 500...690 V 1, 65 m shielded cable P motor 2.2-30 kW at 500...690 V 1, 150 m unshielded cable P motor 2.2-7.5 kW at 500...600 V 1, 75 m shielded cable P motor 2.2-7.5 kW at 500...600 V 1, 170 m unshielded cable P motor 22-30 kW at 380...480 V 1, 140 m shielded cable P motor 22-30 kW at 380...480 V 1, 200 m unshielded cable P motor 0.75-18.5 kW at 380...480 V 1, 160 m shielded cable P motor 0.75-18.5 kW at 380...480 V 1, 300 m unshielded cable P motor 11-22 kW at 200...240 V 1, 150 m shielded cable P motor 11-22 kW at 200...240 V 1, 300 m unshielded cable P motor 2.2-7.5 kW at 200...240 V 1, 300 m shielded cable P motor 2.2-7.5 kW at 200...240 V 1
Maximum output frequency 100 Hz
Environment
Ambient air temperature for storage -25-70 °C
IP degree of protection IP00, IP20 (with kits VW3A9612,613)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 28.000 cm
Package 1 Width 26.500 cm
Package 1 Length 28.000 cm
Package 1 Weight 9.711 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 90.816 kg
