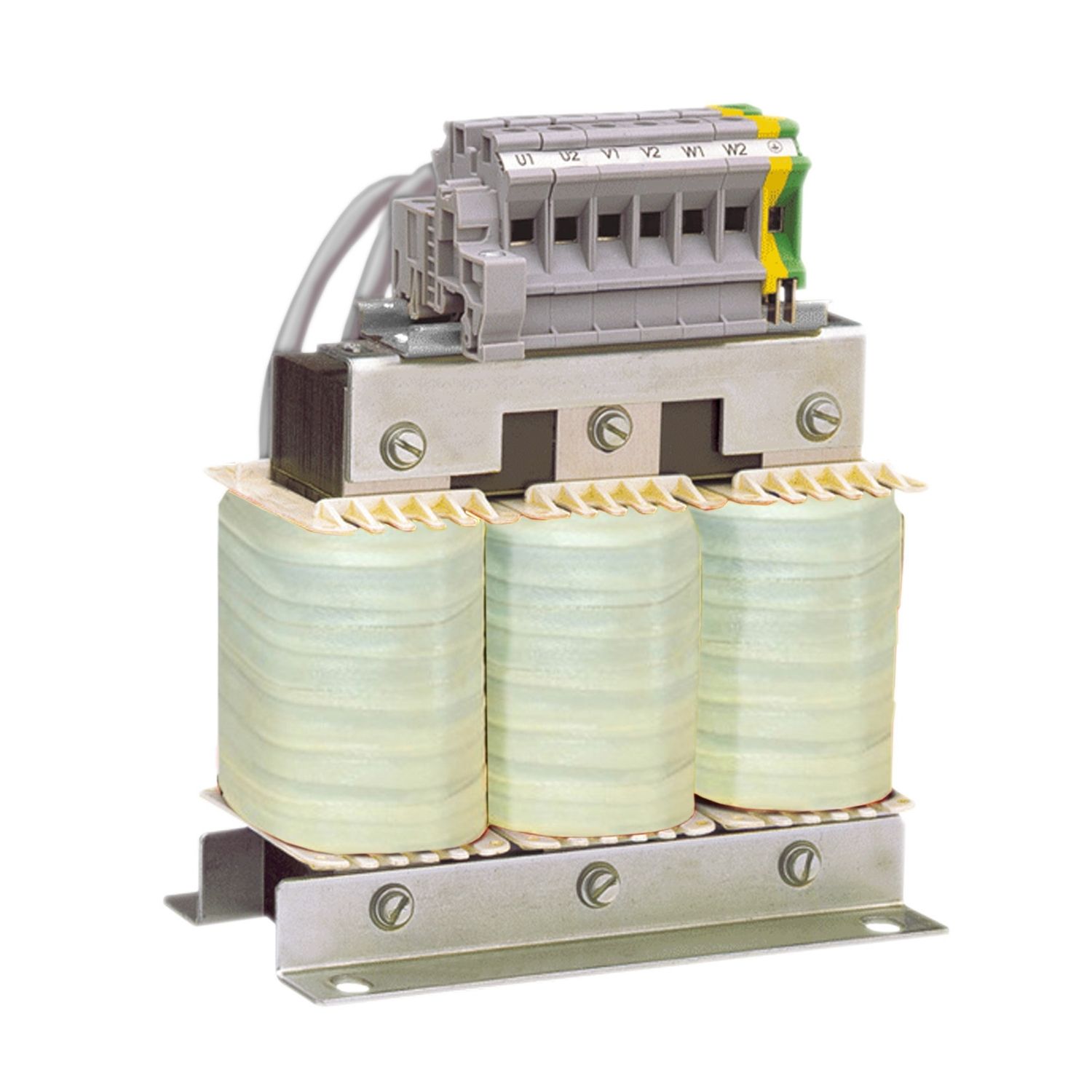

Picture of motor choke, Altivar, for variable speed drive, 314A, IP00
SKU:

VW3A5105

motor choke, Altivar, for variable speed drive, 314A, IP00

$1,901.69
Available for Shipping : 09-Dec-2024
motor choke, Altivar, for variable speed drive, 314A, IP00
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range. Its rated current equal to 314A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 32 kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current. It is sold in indivisible quantity of 3.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar 71, Altivar 61, Altivar 61Q, Altivar 71Q
[In] rated current 314 A
Product specific application output filter
Product compatibility ATV71QC16Y,  ATV71QC13Y, ATV71QC13N4, ATV71QC11N4, ATV71HD75M3X, ATV71HD55M3X,  ATV71HC20Y,  ATV71HC16Y, ATV71HC13N4, ATV71HC11N4,  ATV61QC20Y,  ATV61QC16Y, ATV61QC16N4, ATV61QC13N4, ATV61HD75M3X, ATV61HD55M3X,  ATV61HC25Y,  ATV61HC20Y, ATV61HC13N4, ATV61HC11N4
Sale per indivisible quantity 3
Product or component type motor choke
Electrical connection tag connector M10
Complementary
Thermal losses 475 W
DV/dt 1000 V/µs max at 690 V, 750 V/µs max at 500 V, 500 V/µs max at 400 V
Net weight 32 kg
Ambient air temperature for operation -10-50 °C
Maximum motor cable length 400 m unshielded cable P motor 160-250 kW at 500...690 V 2, 250 m shielded cable P motor 160-250 kW at 500...690 V 2, 250 m unshielded cable P motor 160-250 kW at 500...690 V 1, 150 m shielded cable P motor 160-250 kW at 500...690 V 1, 250 m unshielded cable P motor 110-132 kW at 380...480 V 1, 150 m shielded cable P motor 110-132 kW at 380...480 V 1, 300 m unshielded cable P motor 55-75 kW at 200...240 V 1, 150 m shielded cable P motor 55-75 kW at 200...240 V 1
Maximum output frequency 100 Hz
Environment
Ambient air temperature for storage -25-70 °C
IP degree of protection IP00, IP20 (with kits VW3A9612,613)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 47 cm
Package 1 Width 39 cm
Package 1 Length 59 cm
Package 1 Weight 38 kg
