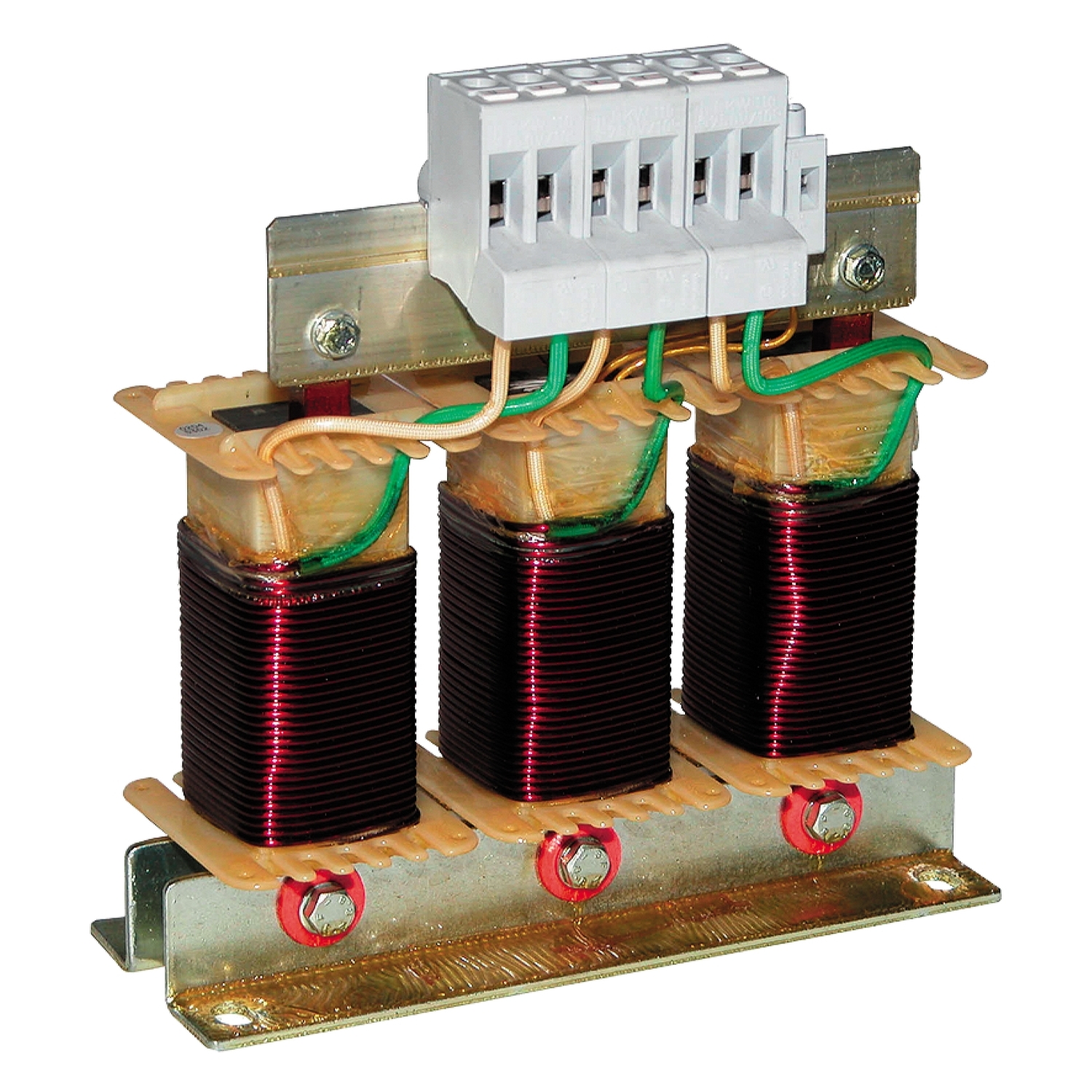

Picture of motor choke, Altivar, for variable speed drive, 215A, set of 3
SKU:

VW3A5104

motor choke, Altivar, for variable speed drive, 215A, set of 3

$1,407.79
Available for Shipping : 30-Oct-2024
Product Selector
motor choke, Altivar, for variable speed drive, 215A, set of 3
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range. Its rated current equal to 215A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 15.5kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current. It is sold in indivisible quantity of 3.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar 61, Altivar Process ATV900, Altivar Process ATV600, Altivar 71, Altivar 212, Altivar 71Q, Altivar 61Q
[In] rated current 215 A
Product specific application output filter
Product compatibility ATV930 variable speed drive, 100 hp, 600 V three phase, ATV930 variable speed drive, 75 hp, 600 V three phase, ATV930 variable speed drive, 60 hp, 600 V three phase, ATV930 variable speed drive, 50 hp, 600 V three phase, ATV930 variable speed drive, 40 hp, 600 V three phase, ATV930 variable speed drive, 30 hp, 600 V three phase, ATV930 variable speed drive, 25 hp, 600 V three phase, ATV930 variable speed drive, 20 hp, 600 V three phase, ATV630 variable speed drive, 100 hp, 600 V three phase, ATV630 variable speed drive, 75 hp, 600 V three phase, ATV630 variable speed drive, 60 hp, 600 V three phase, ATV630 variable speed drive, 50 hp, 600 V three phase, ATV630 variable speed drive, 40 hp, 600 V three phase, ATV630 variable speed drive, 30 hp, 600 V three phase, ATV630 variable speed drive, 25 hp, 600 V three phase, ATV630 variable speed drive, 20 hp, 600 V three phase, ATV930 variable speed drive - 90 kW, 500...690 V three phase, ATV930 variable speed drive - 75 kW, 500...690 V three phase, ATV930 variable speed drive - 55 kW, 500...690 V three phase, ATV930 variable speed drive - 45 kW, 500...690 V three phase, ATV930 variable speed drive - 37 kW, 500...690 V three phase, ATV930 variable speed drive - 30 kW, 500...690 V three phase, ATV930 variable speed drive - 22 kW, 500...690 V three phase, ATV930 variable speed drive - 18.5 kW, 500...690 V three phase, ATV930 variable speed drive - 15 kW, 500...690 V three phase, ATV630 variable speed drive - 90 kW, 500...690 V three phase, ATV630 variable speed drive - 75 kW, 500...690 V three phase, ATV630 variable speed drive - 55 kW, 500...690 V three phase, ATV630 variable speed drive - 45 kW, 500...690 V three phase, ATV630 variable speed drive - 37 kW, 500...690 V three phase, ATV630 variable speed drive - 30 kW, 500...690 V three phase, ATV630 variable speed drive - 22 kW, 500...690 V three phase, ATV630 variable speed drive - 18.5 kW, 500...690 V three phase, ATV630 variable speed drive - 15 kW, 500...690 V three phase, ATV71WD75N4, ATV71WD55N4, ATV71WD45N4, ATV71QD90N4,  ATV71QC11Y,  ATV71HD90Y, ATV71HD90N4,  ATV71HD75Y, ATV71HD75N4,  ATV71HD55Y, ATV71HD55N4,  ATV71HD45Y, ATV71HD45N4, ATV71HD45M3X,  ATV71HD37Y, ATV71HD37M3X, ATV71HD30M3X,  ATV71HC13Y,  ATV71HC11Y,  ATV61WD90N4C,  ATV61WD90N4,  ATV61WD75N4C,  ATV61WD75N4,  ATV61WD55N4C,  ATV61WD55N4,  ATV61WD45N4C,  ATV61WD45N4,  ATV61QC13Y, ATV61QC11N4,  ATV61HD90Y, ATV61HD90N4,  ATV61HD75Y, ATV61HD75N4,  ATV61HD55Y, ATV61HD55N4,  ATV61HD45Y, ATV61HD45N4, ATV61HD45M3X,  ATV61HD37Y, ATV61HD37M3X, ATV61HD30M3X,  ATV61HC16Y,  ATV61HC13Y,  ATV61HC11Y,  ATV212WD15N4C,  ATV212WD15N4,  ATV212HD15M3X, ATV930 variable speed drive, 15 hp, 600 V three phase, ATV930 variable speed drive, 10 hp, 600 V three phase, ATV930 variable speed drive, 7.5 hp, 600 V three phase, ATV930 variable speed drive, 5 hp, 600 V three phase, ATV930 variable speed drive, 3 hp, 600 V three phase, ATV630 variable speed drive, 15 hp, 600 V three phase, ATV630 variable speed drive, 10 hp, 600 V three phase, ATV630 variable speed drive, 7.5 hp, 600 V three phase, ATV630 variable speed drive, 5 hp, 600 V three phase, ATV630 variable speed drive, 3 hp, 600 V three phase, ATV930 variable speed drive - 11 kW, 500...690 V three phase, ATV930 variable speed drive - 7.5 kW, 500...690 V three phase, ATV930 variable speed drive - 5.5 kW, 500...690 V three phase, ATV930 variable speed drive - 4 kW, 500...690 V three phase, ATV930 variable speed drive - 3 kW, 500...690 V three phase, ATV930 variable speed drive - 2.2 kW, 500...690 V three phase, ATV630 variable speed drive - 11 kW, 500...690 V three phase, ATV630 variable speed drive - 7.5 kW, 500...690 V three phase, ATV630 variable speed drive - 5.5 kW, 500...690 V three phase, ATV630 variable speed drive - 4 kW, 500...690 V three phase, ATV630 variable speed drive - 3 kW, 500...690 V three phase, ATV630 variable speed drive - 2.2 kW, 500...690 V three phase, ATV71WD37N4, ATV71WD30N4, ATV71HD37N4,  ATV71HD30Y,  ATV71HD22Y,  ATV71HD22N4,  ATV71HD18Y,  ATV71HD15Y,  ATV61WD37N4C,  ATV61WD37N4,  ATV61WD30N4C,  ATV61WD30N4,  ATV61WD22N4C,  ATV61WD22N4, ATV61HD37N4,  ATV61HD30Y, ATV61HD30N4,  ATV61HD22Y,  ATV61HD22N4,  ATV61HD18Y,  ATV61HD15Y, ATV212HU15N4, ATV71WU75N4, ATV71WU55N4,  ATV71WD18N4,  ATV71WD15N4,  ATV71WD11N4, ATV71PU75N4Z, ATV71PU55N4Z,  ATV71PD11N4Z,  ATV71HU75S6X, ATV71HU75N4,  ATV71HU55S6X, ATV71HU55N4,  ATV71HU40S6X,  ATV71HU30S6X,  ATV71HU22S6X,  ATV71HU15S6X,  ATV71HD18N4,  ATV71HD15N4,  ATV71HD11Y,  ATV71HD11N4,  ATV61WU75N4C,  ATV61WU75N4,  ATV61WU55N4C,  ATV61WU55N4,  ATV61WD18N4C,  ATV61WD18N4,  ATV61WD15N4C,  ATV61WD15N4,  ATV61WD11N4C,  ATV61WD11N4,  ATV61HU75S6X, ATV61HU75N4,  ATV61HU55S6X, ATV61HU55N4,  ATV61HU40S6X,  ATV61HU30S6X,  ATV61HU22S6X,  ATV61HD18N4,  ATV61HD15N4,  ATV61HD11N4
Sale per indivisible quantity 3
Product or component type motor choke
Electrical connection tag connector M10
Complementary
Thermal losses 430 W
DV/dt 1000 V/µs max at 690 V, 750 V/µs max at 500 V, 500 V/µs max at 400 V
Net weight 15.5 kg
Ambient air temperature for operation -10-50 °C
Maximum motor cable length 300 m unshielded cable P motor 90-90 kW at 380...480 V 1, 200 m shielded cable P motor 90-90 kW at 380...480 V 1, 300 m unshielded cable P motor 37-37 kW at 380...480 V 1, 200 m shielded cable P motor 37-37 kW at 380...480 V 1, 400 m unshielded cable P motor 90-160 kW at 500...690 V 2, 300 m unshielded cable P motor 30-90 kW at 500...690 V 2, 250 m shielded cable P motor 30-160 kW at 500...690 V 2, 250 m unshielded cable P motor 30-160 kW at 500...690 V 1, 150 m shielded cable P motor 30-160 kW at 500...690 V 1, 250 m unshielded cable P motor 11-30 kW at 500...690 V 2, 150 m shielded cable P motor 11-30 kW at 500...690 V 2, 150 m unshielded cable P motor 2.2-30 kW at 500...690 V 1, 100 m shielded cable P motor 2.2-30 kW at 500...690 V 1, 400 m unshielded cable P motor 2.2-7.5 kW at 500...600 V 2, 250 m shielded cable P motor 2.2-7.5 kW at 500...600 V 2, 250 m unshielded cable P motor 2.2-7.5 kW at 500...600 V 1, 150 m shielded cable P motor 2.2-7.5 kW at 500...600 V 1, 300 m unshielded cable P motor 45-75 kW at 380...480 V 1, 150 m shielded cable P motor 45-75 kW at 380...480 V 1, 300 m unshielded cable P motor 22-30 kW at 380...480 V 1, 150 m shielded cable P motor 22-30 kW at 380...480 V 1, 300 m unshielded cable P motor 5.5-18.5 kW at 380...480 V 1, 200 m shielded cable P motor 5.5-18.5 kW at 380...480 V 1, 300 m unshielded cable P motor 30-45 kW at 200...240 V 1, 150 m shielded cable P motor 30-45 kW at 200...240 V 1
Maximum output frequency 100 Hz
Environment
Ambient air temperature for storage -25-70 °C
IP degree of protection IP00, IP20 (with kits VW3A9612,613)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 40.000 cm
Package 1 Width 60.000 cm
Package 1 Length 40.000 cm
Package 1 Weight 18.000 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 44.500 kg
