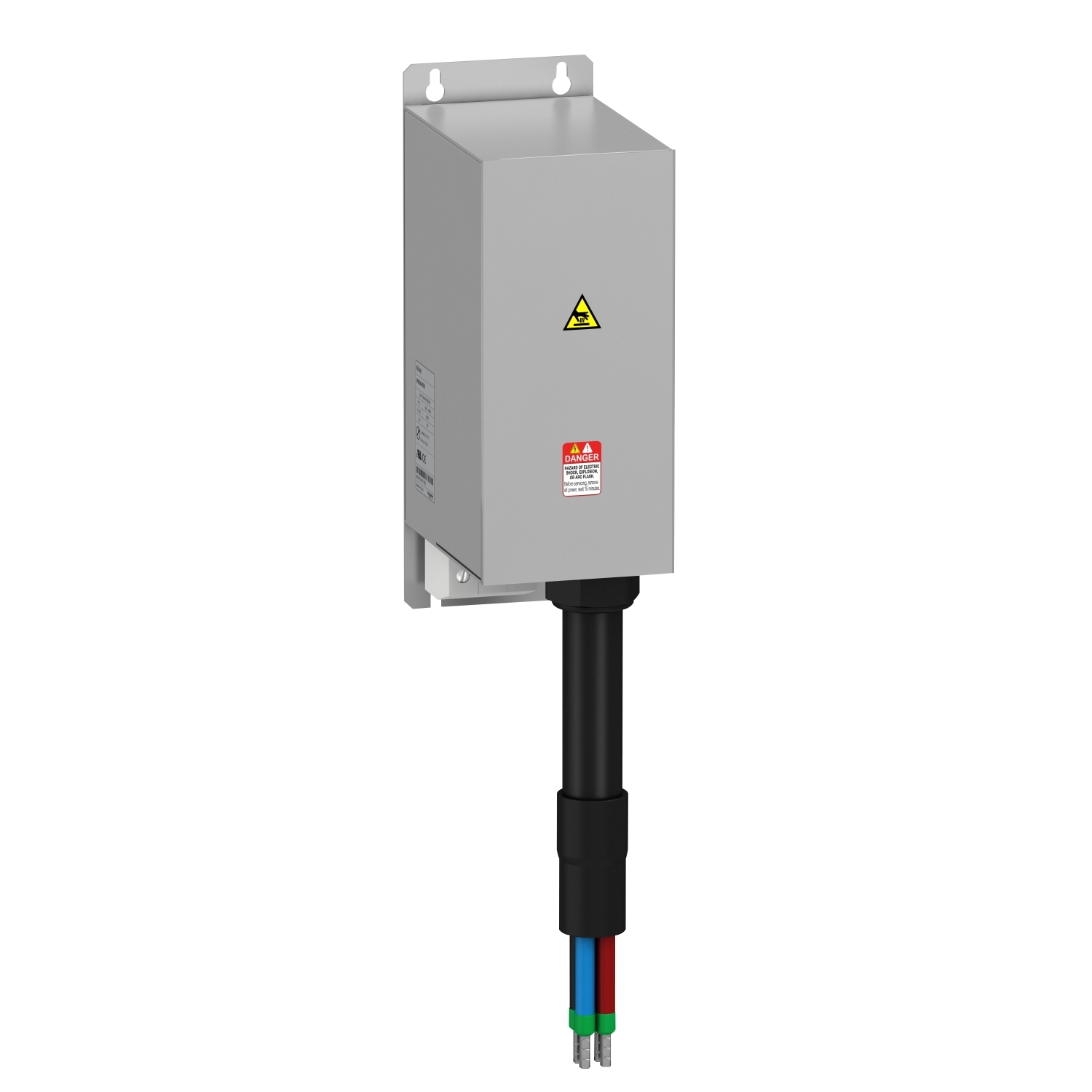

Picture of EMC radio interference input filter, for variable speed drive, 100A
SKU:

VW3A4706

EMC radio interference input filter, for variable speed drive, 100A

$2,244.40
Available for Shipping : 30-Oct-2024
Product Selector
EMC radio interference input filter, for variable speed drive, 100A
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 100A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2 or C3. Its protection index is IP20. It weighs 6.5kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.

Products specifications

Attribute name Attribute value
Main
Thermal losses 12.4 W
Range compatibility Altivar Process ATV900, Altivar Process ATV600, Altivar Machine ATV340
[In] rated current 100 A
Product specific application radio interference input filter
Mounting location at variable speed drive side
Network number of phases three phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV340 motor: 37 kW, 380...480 V, variable speed drive ATV340 motor: 30 kW, 380...480 V, variable speed drive ATV950 wall mount, motor: 45 kW, 380...480 V, variable speed drive ATV950 wall mount, motor: 37 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 22 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 18.5 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 45 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 37 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 45 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 37 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 22 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 18.5 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 45 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 37 kW, 380...480 V
Range of product Altivar
Complementary
Depth 180 mm
Width 120 mm
Electrical connection terminal 50 mm² AWG 1/0
Network rated voltage 200-240 V, 380-480 V
Earth leakage current 13.9 mA at 400 V 50 Hz TT, 13.9 mA at 400 V 50 Hz TN
Net weight 6.5 kg
Maximum motor cable length 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 380...480 V, 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 200...240 V, 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 200...240 V, 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 200...240 V, 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 380...480 V, 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 380...480 V
Tolerance 10 %
Height 340 mm
Mechanical robustness vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3
Environment
Operating altitude 1000...4000 m with current derating 1 % per 100 m, 0...1000 m without current derating
IP degree of protection IP21with kit VW3A47906, IP20mounting side by side
Relative humidity 5-95 % without condensation conforming to IEC 61800-5-1
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation 50-60 °C (with current derating 1.5 % per °C), -10-50 °C (without current derating)
Standards IEC 61800-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 28.500 cm
Package 1 Width 37.500 cm
Package 1 Length 53.000 cm
Package 1 Weight 11.179 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 58.248 kg

Related products

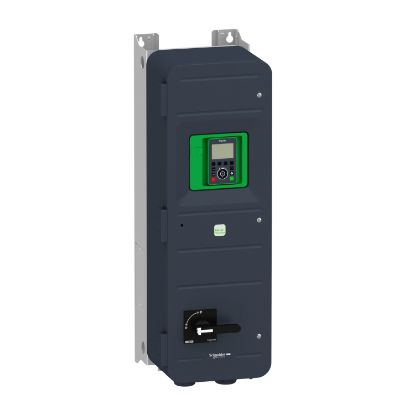

Picture of variable speed drive, Altivar Process ATV600, ATV650, 37kW, 400 to 480V, IP55, disconnect switch
