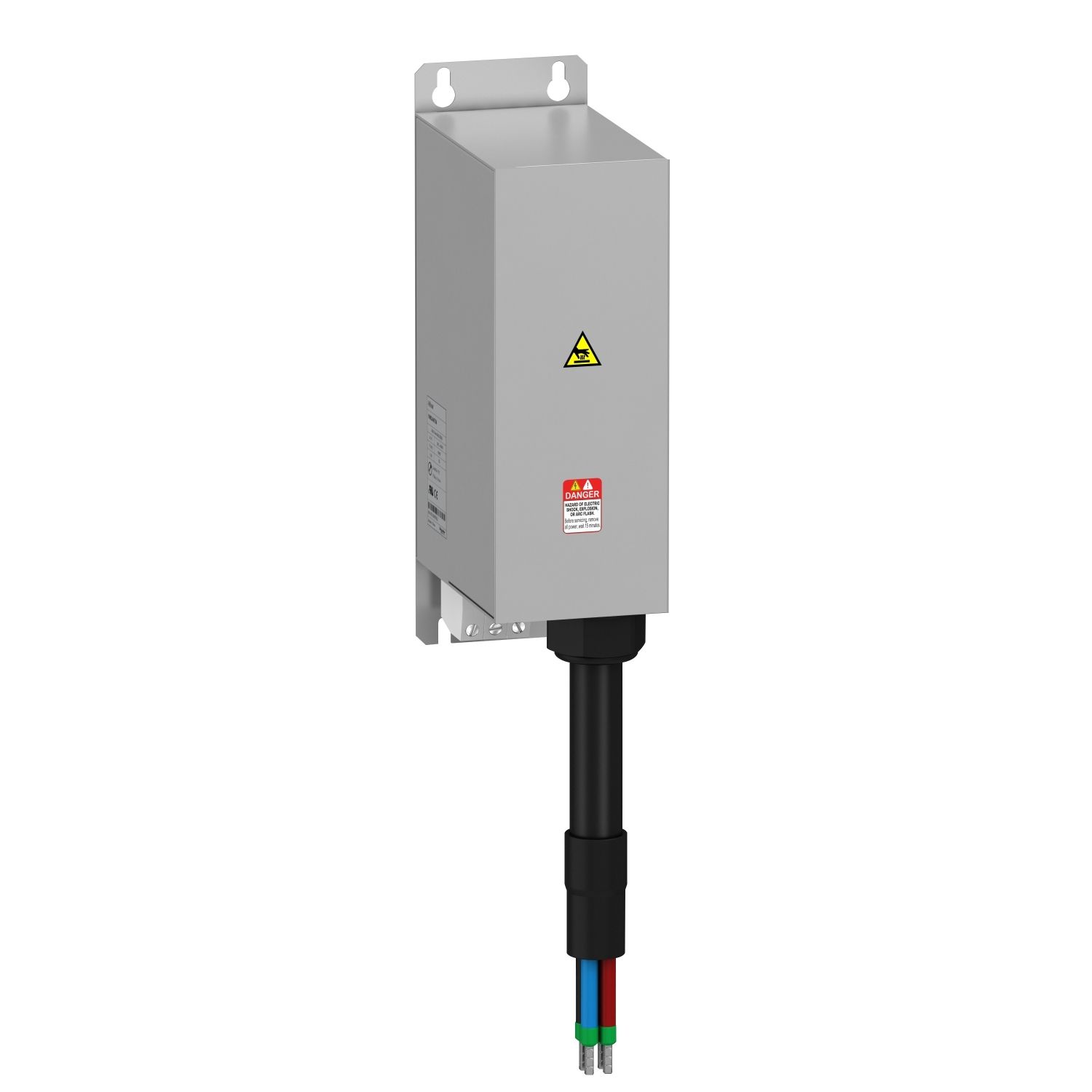

Picture of EMC radio interference input filter - for variable speed drive - 50 A
SKU:

VW3A4704

EMC radio interference input filter - for variable speed drive - 50 A

$893.72
Available for Shipping : 30-Oct-2024
Product Selector
EMC radio interference input filter - for variable speed drive - 50 A
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Thermal losses 8 W
Range compatibility Altivar Process ATV600, Altivar Process ATV900
[In] rated current 50 A
Product specific application radio interference input filter
Network number of phases three phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV950 wall mount, motor: 22 kW, 380...480 V, variable speed drive ATV950 wall mount, motor: 18.5 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 11 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 22 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 18.5 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 22 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 18.5 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 11 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 22 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 18.5 kW, 380...480 V
Range of product Altivar
Complementary
Depth 165 mm
Width 90 mm
Electrical connection terminal 16 mm² AWG 4
Network rated voltage 200-240 V, 380-480 V
Earth leakage current 7.6 mA at 400 V 50 Hz TT, 7.6 mA at 400 V 50 Hz TN
Net weight 5.2 kg
Maximum motor cable length 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 380...480 V, 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 200...240 V, 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 200...240 V, 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 200...240 V, 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 380...480 V, 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 380...480 V
Tolerance 10 %
Height 283 mm
Mechanical robustness vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3
Environment
Operating altitude 1000...4000 m with current derating 1 % per 100 m, 0...1000 m without current derating
IP degree of protection IP21with kit VW3A47904, IP20mounting side by side
Relative humidity 5-95 % without condensation conforming to IEC 61800-5-1
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation 50-60 °C (with current derating 1.5 % per °C), -10-50 °C (without current derating)
Standards IEC 61800-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 29.000 cm
Package 1 Width 37.500 cm
Package 1 Length 52.500 cm
Package 1 Weight 6.242 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 35.240 kg
