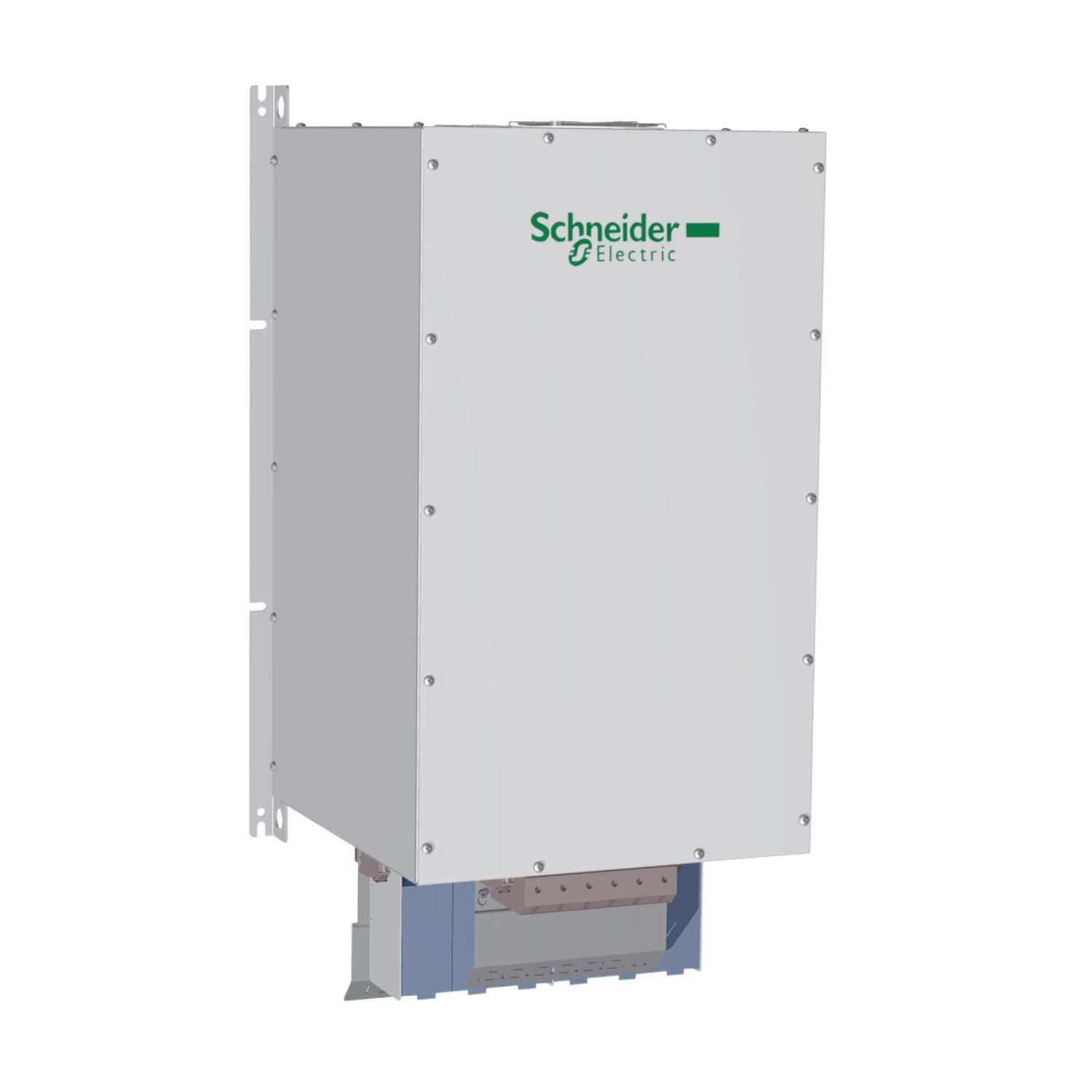

Picture of passive filter, Altivar, 316A, 400V, 50Hz, for variable speed drive
SKU:

VW3A46116

passive filter, Altivar, 316A, 400V, 50Hz, for variable speed drive

$13,725.95
Available for Shipping : 17-Feb-2025
Product Selector
passive filter, Altivar, 316A, 400V, 50Hz, for variable speed drive
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
This passive filter is an option for variable speed drives of Altivar range. Its rated current is equal to 316A. It is used as an input filter in order to obtain total harmonic distortion of less than 10% or 5%. Its protection index is IP20. It weighs 142kg and its dimensions are, 468mm wide, 900.06mm high, 448.5mm deep. It is designed to be used for drives in the first environment (restricted distribution, domestic applications).

Products specifications

Attribute name Attribute value
Main
Product specific application reduction of current harmonics
Product or component type passive filter
Complementary
Supply frequency 50 Hz +/- 2 %
Range compatibility Altivar Process ATV900, Altivar 71, Altivar Process ATV600, Altivar 61
Max current 1.5 x nominal current (duration = 60 s)
Quantity per drive 2 filters per drive for variable speed drive ATV930 wall mount, motor: 315 kW/500 hp, 2 filters per drive for variable speed drive ATV630 wall mount, motor: 315 kW/500 hp, 1 filter per drive for variable speed drive ATV930 wall mount, motor: 160 kW/250 hp, 1 filter per drive for variable speed drive ATV630 wall mount, motor: 160 kW/250 hp, 2 filters per drive for variable speed drive ATV71Q motor: 355 kW, 2 filters per drive for variable speed drive ATV71Q motor: 315 kW/500 hp, 1 filter per drive for variable speed drive ATV71Q motor: 160 kW/250 hp, 2 filters per drive for variable speed drive ATV61Q motor: 355 kW, 1 filter per drive for variable speed drive ATV61Q motor: 160 kW/250 hp, 2 filters per drive for variable speed drive ATV71H motor: 355 kW, 2 filters per drive for variable speed drive ATV71H motor: 315 kW/500 hp, 1 filter per drive for variable speed drive ATV71H motor: 160 kW/250 hp, 2 filters per drive for variable speed drive ATV61H motor: 355 kW, 1 filter per drive for variable speed drive ATV61H motor: 160 kW/250 hp, 2 filters per drive for variable speed drive ATV61Q motor: 280 kW/450 hp, 2 filters per drive for variable speed drive ATV61H motor: 280 kW/450 hp
[Us] rated supply voltage 400 V +/- 10 %
Electrical insulation class class F
Net weight 142 kg
Network number of phases 3 phases
Efficiency 98 %
THDI 10 % for variable speed drive ATV930 motor: 315 kW/500 hp, 10 % for variable speed drive ATV630 motor: 315 kW/500 hp, 10 % for variable speed drive ATV930 motor: 160 kW/250 hp, 10 % for variable speed drive ATV630 motor: 160 kW/250 hp, 10 % for variable speed drive ATV71Q motor: 355 kW, 10 % for variable speed drive ATV71Q motor: 315 kW/500 hp, 10 % for variable speed drive ATV71Q motor: 160 kW/250 hp, 10 % for variable speed drive ATV61Q motor: 355 kW, 10 % for variable speed drive ATV61Q motor: 160 kW/250 hp, 10 % for variable speed drive ATV71H motor: 355 kW, 10 % for variable speed drive ATV71H motor: 315 kW/500 hp, 10 % for variable speed drive ATV71H motor: 160 kW/250 hp, 10 % for variable speed drive ATV61H motor: 355 kW, 10 % for variable speed drive ATV61H motor: 160 kW/250 hp, 10 % for variable speed drive ATV61Q motor: 280 kW/450 hp, 10 % for variable speed drive ATV61H motor: 280 kW/450 hp
Thermal losses 925 W
[In] rated current 316 A for output, 304 A for input
Electrical connection X1-1...X2-3 terminal, connection capacity: 25...300 mm², A, B terminal, connection capacity: 2.5 mm²
Cos phi 0.99-0.99 (100 % of line current), 0.85-0.85 (75 % of line current), 1-1 (150 % of line current)
Environment
Operating altitude > 1000...4000 m with current derating 5 % per 1000 m, <= 1000 m without current derating
Relative humidity 5-85 % without condensation
Ambient air temperature for storage -25-65 °C during transport, -25-55 °C storage in original packaging
IP degree of protection IP55 (enclosure mounting), IP20
Vibration resistance 0.7 gn (f= 13.2-150 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 5-13.2 Hz) conforming to IEC 60068-2-6
Ambient air temperature for operation 5-45 °C (without current derating), 45-60 °C (with current derating 3 % per °C)
Standards IEC 61000-3-2, G5/4 engineering recommendation, IEC 61000-3-4, IEC 61000-3-12, IEC 61000-2-4, IEC 61000-2-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 71.000 cm
Package 1 Width 80.000 cm
Package 1 Length 120.000 cm
Package 1 Weight 163.441 kg
