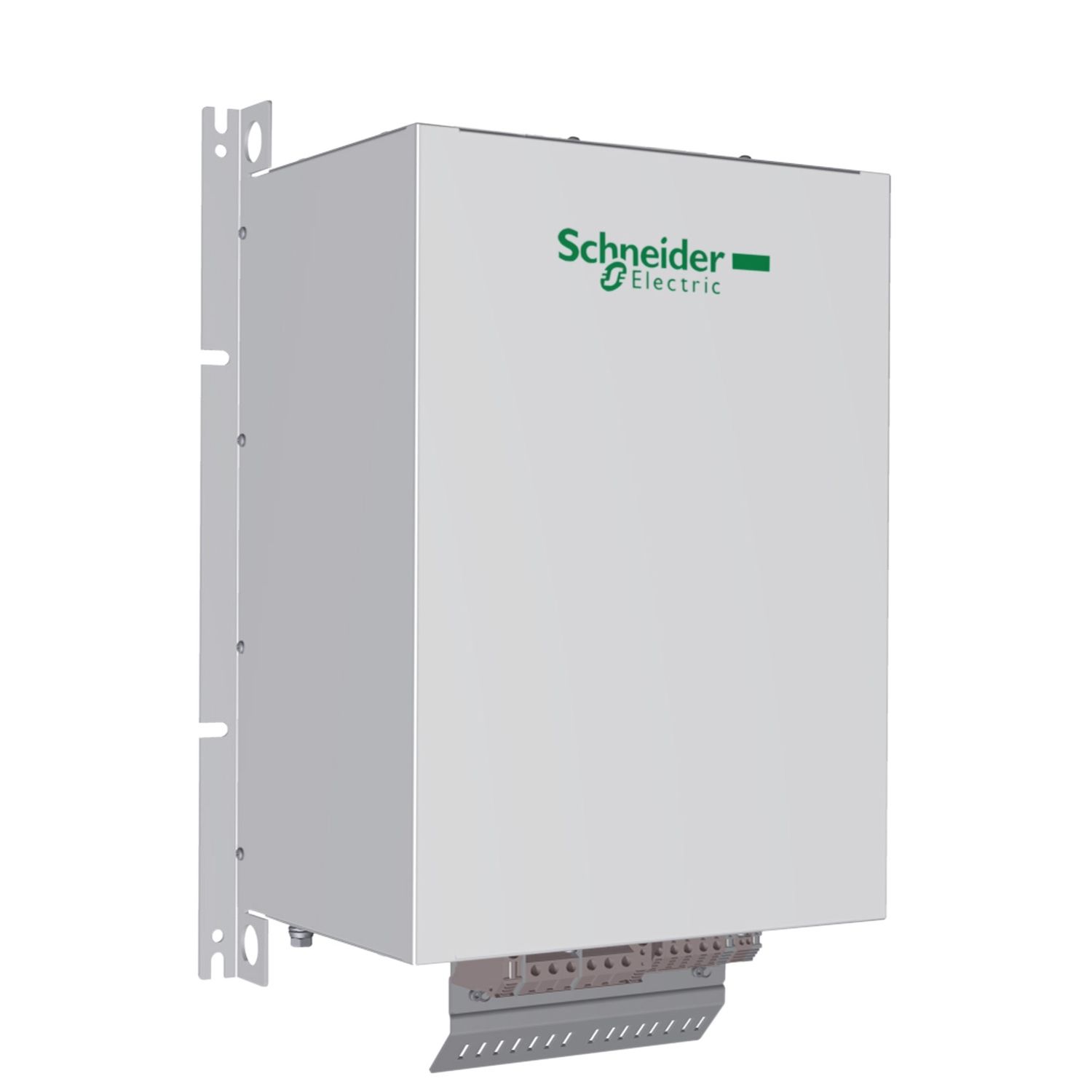

Picture of passive filter, Altivar, 45A, 400V, 50Hz, for variable speed drive
SKU:

VW3A46107

passive filter, Altivar, 45A, 400V, 50Hz, for variable speed drive

$3,715.39
Available for Shipping : 17-Feb-2025
Product Selector
passive filter, Altivar, 45A, 400V, 50Hz, for variable speed drive
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
This passive filter is an option for variable speed drives of Altivar range. Its rated current is equal to 45A. It is used as an input filter in order to obtain total harmonic distortion of less than 10% or 5%. Its protection index is IP20. It weighs 37kg, and its dimensions are 378mm wide, 594.08mm high, and 242mm deep. It is designed to be used for drives in the first environment (restricted distribution, domestic applications).

Products specifications

Attribute name Attribute value
Main
Product specific application reduction of current harmonics
Product or component type passive filter
Complementary
Supply frequency 50 Hz +/- 2 %
Range compatibility Altivar 61, Altivar Process ATV900, Altivar 71, Altivar Process ATV600
Max current 1.5 x nominal current (duration = 60 s)
Quantity per drive 1 filter per drive for variable speed drive ATV930 wall mount, motor: 22 kW/30 hp, 1 filter per drive for variable speed drive ATV950 wall mount, motor: 22 kW/30 hp, 1 filter per drive for variable speed drive ATV630 wall mount, motor: 22 kW/30 hp, 1 filter per drive for variable speed drive ATV650 wall mount, motor: 22 kW/30 hp, 1 filter per drive for variable speed drive ATV71W motor: 22 kW/30 hp, 1 filter per drive for variable speed drive ATV71H motor: 22 kW/30 hp, 1 filter per drive for variable speed drive ATV61H motor: 22 kW/30 hp, 1 filter per drive for variable speed drive ATV61W motor: 22 kW/30 hp
[Us] rated supply voltage 400 V +/- 10 %
Electrical insulation class class F
Net weight 39 kg
Network number of phases 3 phases
Efficiency 98 %
THDI 10 % for variable speed drive ATV930 motor: 22 kW/30 hp, 10 % for variable speed drive ATV950 motor: 22 kW/30 hp, 10 % for variable speed drive ATV630 motor: 22 kW/30 hp, 10 % for variable speed drive ATV650 motor: 22 kW/30 hp, 16 % for variable speed drive ATV71W motor: 22 kW/30 hp, 16 % for variable speed drive ATV71H motor: 22 kW/30 hp, 16 % for variable speed drive ATV61H motor: 22 kW/30 hp, 10 % for variable speed drive ATV61W motor: 22 kW/30 hp
Thermal losses 274 W
[In] rated current 45 A for output, 43 A for input
Electrical connection X1-1...X2-3 terminal, connection capacity: 1.5...25 mm², A, B terminal, connection capacity: 2.5 mm²
Cos phi 0.99-0.99 (100 % of line current), 0.85-0.85 (75 % of line current), 1-1 (150 % of line current)
Environment
Operating altitude > 1000...4000 m with current derating 5 % per 1000 m, <= 1000 m without current derating
Relative humidity 5-85 % without condensation
Ambient air temperature for storage -25-65 °C during transport, -25-55 °C storage in original packaging
IP degree of protection IP55 (enclosure mounting), IP20
Vibration resistance 0.7 gn (f= 13.2-150 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 5-13.2 Hz) conforming to IEC 60068-2-6
Ambient air temperature for operation 5-45 °C (without current derating), 45-60 °C (with current derating 3 % per °C)
Standards IEC 61000-3-2, IEC 61000-2-2, IEC 61000-3-12, G5/4 engineering recommendation, IEC 61000-3-4, IEC 61000-2-4
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 61.000 cm
Package 1 Width 60.000 cm
Package 1 Length 80.000 cm
Package 1 Weight 60.500 kg

Related products

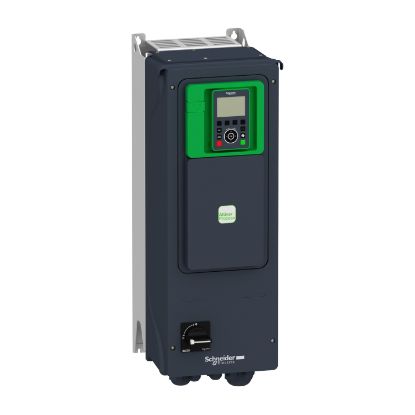

Picture of variable speed drive, Altivar Process ATV600, ATV650, 22kW, 400 to 480V, IP55, disconnect switch
