Picture of line choke - 0.1 mH - 428 A - 3 phases - 495 W - for variable speed drive
SKU:

VW3A4572

line choke - 0.1 mH - 428 A - 3 phases - 495 W - for variable speed drive

$2,745.02
Availability: Please contact our sales team on 1300 724 622.
line choke - 0.1 mH - 428 A - 3 phases - 495 W - for variable speed drive
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet

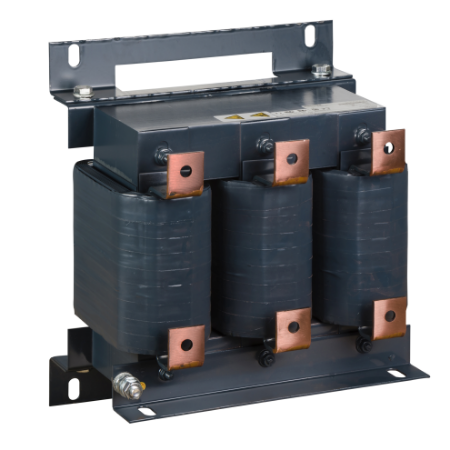

This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 428A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 0.1mH. It weighs 90kg and its dimensions are, 385mm wide, 440mm high, 295mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

Products specifications

Attribute name Attribute value
Main
Device application reduction of current harmonics
Range compatibility Altivar 61Q, Altivar 61, Altivar 71Q, Altivar 71
[In] rated current 428 A
Saturation current 770 A
Electrical connection bare wires diameter: 13 mm
Product compatibility ATV71QC63Y - line choke - 1 per drive, ATV71QC50Y - line choke - 1 per drive, ATV71QC31Y - line choke - 1 per drive, ATV71QC25Y - line choke - 1 per drive, ATV71HC63Y - line choke - 2 per drive, ATV71HC50Y - line choke - 2 per drive, ATV71HC31Y - line choke - 1 per drive, ATV71HC25Y - line choke - 1 per drive, ATV61QC80Y - line choke - 2 per drive, ATV61QC63Y - line choke - 2 per drive, ATV61QC40Y - line choke - 1 per drive, ATV61QC31Y - line choke - 1 per drive, ATV61HC80Y - line choke - 2 per drive, ATV61HC63Y - line choke - 2 per drive, ATV61HC40Y - line choke - 2 per drive, ATV61HC31Y - line choke - 2 per drive
Value of inductance 0.1 mH
Network number of phases three phase
Product or component type line choke
Range of product Altivar
Thermal losses 495 W
Complementary
Supply frequency 50...60 Hz
Maximum voltage drop at rated load 5 %
Depth 295 mm
Width 385 mm
Max current 1.65 x nominal current (duration = 60 s)
Minimum clearance distance 5.5 mm IEC 60664
Electrical insulation class class F
Leakage distance 11.5 mm conforming to IEC 60664
Net weight 90 kg
Height 440 mm
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating
IP degree of protection terminals: IP00, choke: IP00
Ambient air temperature for storage -25-70 °C
Pollution degree 2 conforming to EN 50178
Relative humidity 0-95 %
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
Environmental characteristic 3S1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3B1 conforming to IEC 721-3-3
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation 0-45 °C (without current derating), 45-55 °C (with current derating of 2 % per °C)
Standards VDE 0160 level 1, IEC 60076 (with HD398), EN 50178
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 46.000 cm
Package 1 Width 38.000 cm
Package 1 Length 58.000 cm
Package 1 Weight 85.750 kg
