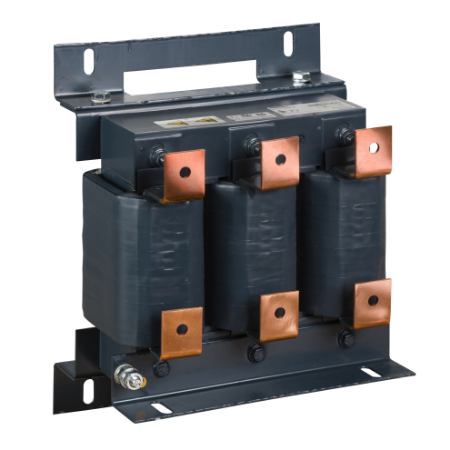

Picture of line choke - 0.06 mH - 450 A - 3 phases - 335 W - for variable speed drive
SKU:

VW3A4569

line choke - 0.06 mH - 450 A - 3 phases - 335 W - for variable speed drive

$2,719.82
Availability: Please contact our sales team on 1300 724 622.
line choke - 0.06 mH - 450 A - 3 phases - 335 W - for variable speed drive
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 450A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 0.06mH. It weighs 70kg and its dimensions are, 320mm wide, 385mm high, 250mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

Products specifications

Attribute name Attribute value
Main
Device application reduction of current harmonics
Range compatibility Altivar 71Q, Altivar 61Q, Altivar 71, Altivar 61
[In] rated current 450 A
Saturation current 574 A
Electrical connection bare wires diameter: 13 mm
Product compatibility ATV61HD90M3X - line choke - 1 per drive, ATV71QC20N4 - line choke - 1 per drive, ATV71HC40N4 - line choke - 1 per drive, ATV71HC20N4 - line choke - 1 per drive, ATV61QC25N4 - line choke - 1 per drive, ATV61HC50N4D - line choke - 1 per drive, ATV61HC25N4D - line choke - 2 per drive, ATV61HC22N4D - line choke - 2 per drive
Value of inductance 0.06 mH
Network number of phases three phase
Product or component type line choke
Range of product Altivar
Thermal losses 335 W
Complementary
Supply frequency 50...60 Hz
Maximum voltage drop at rated load 5 %
Depth 250 mm
Width 320 mm
Max current 1.65 x nominal current (duration = 60 s)
Minimum clearance distance 5.5 mm IEC 60664
Electrical insulation class class F
Leakage distance 11.5 mm conforming to IEC 60664
Net weight 70 kg
Height 385 mm
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating
IP degree of protection terminals: IP00, choke: IP00
Ambient air temperature for storage -25-70 °C
Pollution degree 2 conforming to EN 50178
Relative humidity 0-95 %
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
Environmental characteristic 3S1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3B1 conforming to IEC 721-3-3
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation 0-45 °C (without current derating), 45-55 °C (with current derating of 2 % per °C)
Standards IEC 60076 (with HD398), VDE 0160 level 1, EN 50178
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 50.0 cm
Package 1 Width 38.5 cm
Package 1 Length 58.0 cm
Package 1 Weight 75.0 kg
