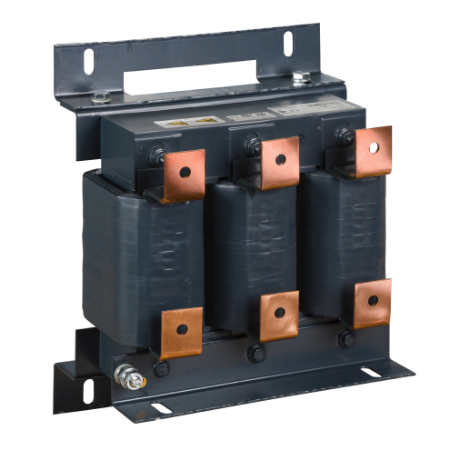

Picture of line choke - 0.085 mH - 300 A - 3 phases - 315 W - for variable speed drive
SKU:

VW3A4568

line choke - 0.085 mH - 300 A - 3 phases - 315 W - for variable speed drive

$2,014.25
Availability: Please contact our sales team on 1300 724 622.
line choke - 0.085 mH - 300 A - 3 phases - 315 W - for variable speed drive
Be the first to review this product
Manufacturer: Telemecanique
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 300A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 0.085mH. It weighs 46kg and its dimensions are, 320mm wide, 385mm high, 210mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

Products specifications

Attribute name Attribute value
Main
Device application reduction of current harmonics
Range compatibility Altivar 71, Altivar 71Q, Altivar 61, Altivar 61Q
[In] rated current 300 A
Saturation current 474 A
Electrical connection bare wires diameter: 11 mm
Product compatibility ATV61HD75M3X - line choke - 1 per drive, ATV71QC40Y - line choke - 1 per drive, ATV71QC13N4 - line choke - 2 per drive, ATV71HC40Y - line choke - 1 per drive, ATV61QC50Y - line choke - 2 per drive, ATV61QC16N4 - line choke - 1 per drive, ATV61HC50Y - line choke - 2 per drive, ATV61HC16N4D - line choke - 2 per drive
Value of inductance 0.085 mH
Network number of phases three phase
Product or component type line choke
Range of product Altivar
Thermal losses 315 W
Complementary
Supply frequency 50...60 Hz
Maximum voltage drop at rated load 5 %
Depth 210 mm
Width 320 mm
Max current 1.65 x nominal current (duration = 60 s)
Minimum clearance distance 5.5 mm IEC 60664
Electrical insulation class class F
Leakage distance 11.5 mm conforming to IEC 60664
Net weight 46 kg
Height 385 mm
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without derating
IP degree of protection terminals: IP00, choke: IP00
Ambient air temperature for storage -25-70 °C
Pollution degree 2 conforming to EN 50178
Relative humidity 0-95 %
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
Environmental characteristic 3S1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3B1 conforming to IEC 721-3-3
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation 0-45 °C (without current derating), 45-55 °C (with current derating of 2 % per °C)
Standards IEC 60076 (with HD398), VDE 0160 level 1, EN 50178
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 43.000 cm
Package 1 Width 40.000 cm
Package 1 Length 48.000 cm
Package 1 Weight 54.750 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 50.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 118.000 kg
