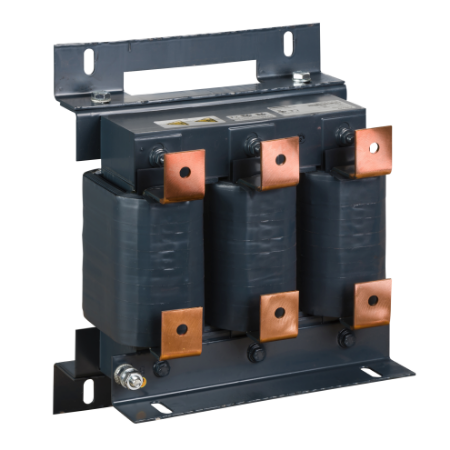

Picture of line choke - 0.066 mH - 344 A - 3 phases - 258 W - for variable speed drive
SKU:

VW3A4561

line choke - 0.066 mH - 344 A - 3 phases - 258 W - for variable speed drive

$2,200.72 INC GST
Availability: Please contact our sales team on 1300 724 622.
line choke - 0.066 mH - 344 A - 3 phases - 258 W - for variable speed drive
Be the first to review this product
Manufacturer: Telemecanique
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 344A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 0.066mH. It weighs 47kg and its dimensions are, 320mm wide, 380mm high, 225mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

Products specifications

Attribute name Attribute value
Main
Device application reduction of current harmonics
Range compatibility Altivar 71, Altivar 71Q, Altivar 61Q, Altivar 61
[In] rated current 344 A
Saturation current 685 A
Electrical connection bare wires diameter: 11 mm
Product compatibility ATV71QC31N4 - line choke - 1 per drive, ATV71QC16N4 - line choke - 1 per drive, ATV71HC16N4 - line choke - 2 per drive, ATV61QC40N4 - line choke - 2 per drive, ATV61QC20N4 - line choke - 1 per drive, ATV61HC22N4D - line choke - 1 per drive
Value of inductance 0.066 mH
Network number of phases three phase
Product or component type line choke
Range of product Altivar
Thermal losses 258 W
Complementary
Supply frequency 50...60 Hz
Maximum voltage drop at rated load 5 %
Depth 225 mm
Width 320 mm
Max current 1.65 x nominal current (duration = 60 s)
Minimum clearance distance 5.5 mm IEC 60664
Electrical insulation class class F
Leakage distance 11.5 mm conforming to IEC 60664
Net weight 47 kg
Height 380 mm
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m
IP degree of protection terminals: IP00, choke: IP00
Ambient air temperature for storage -25-70 °C
Pollution degree 2 conforming to EN 50178
Relative humidity 0-95 %
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
Environmental characteristic 3S1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3B1 conforming to IEC 721-3-3
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation 0-45 °C (without current derating), 45-55 °C (with current derating of 2 % per °C)
Standards EN 50178, IEC 60076 (with HD398), VDE 0160 level 1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 42.000 cm
Package 1 Width 38.000 cm
Package 1 Length 58.000 cm
Package 1 Weight 59.750 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 128.000 kg
