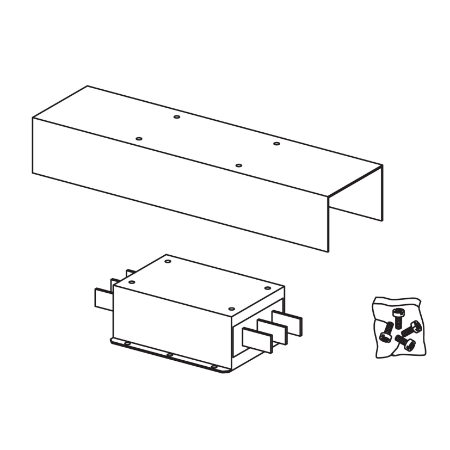

Picture of EMC radio interference input filter - 3 phase supply - 273 A
SKU:

VW3A4410

EMC radio interference input filter - 3 phase supply - 273 A

$1,921.85
Availability: Please contact our sales team on 1300 724 622.
EMC radio interference input filter - 3 phase supply - 273 A
Be the first to review this product
Manufacturer: Telemecanique
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Thermal losses 60 W
Range compatibility Altivar 61Q, Altivar 61, Altivar 71Q, Altivar 71
[In] rated current 273 A
Product specific application radio interference input filter
Network number of phases three phase
Product or component type EMC input filter
Product compatibility ATV71QD90N4, ATV71QC13N4, ATV71QC11N4, ATV71HD90N4, ATV71HD75M3X, ATV71HD55M3X, ATV71HC13N4, ATV71HC11N4, ATV61QC16N4, ATV61QC13N4, ATV61QC11N4, ATV61HD90N4, ATV61HD75M3X, ATV61HD55M3X, ATV61HC16N4, ATV61HC13N4, ATV61HC11N4
Range of product Altivar
Complementary
Electrical connection M10 bars
Network rated voltage 200-240 V, 380-500 V
Earth leakage current 500 mA at 400 V 50 Hz, 285 mA at 400 V 50 Hz
Net weight 22 kg
Tolerance 10 %
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating
IP degree of protection IP30with kits VW3A9601, 602, IP00
Relative humidity 0-93 % conforming to IEC 68-2-3
Ambient air temperature for storage -25-85 °C
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27
Ambient air temperature for operation -25-45 °C
Standards EN 133200
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 19.000 cm
Package 1 Width 32.000 cm
Package 1 Length 90.000 cm
Package 1 Weight 15.750 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 160.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 151.000 kg
