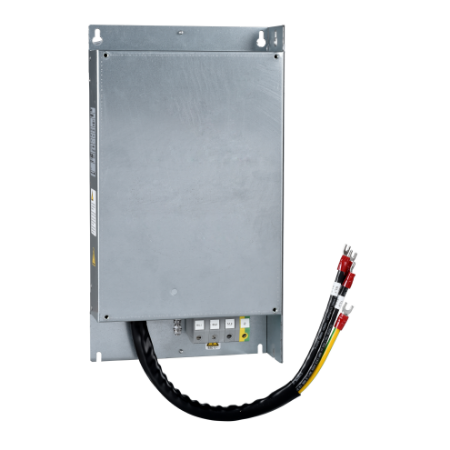

Picture of additionnal EMC footprint filter S4 - 3-phase supply - 35 A
SKU:

VW3A4403

additionnal EMC footprint filter S4 - 3-phase supply - 35 A

$456.11
Available for Shipping : 30-Jan-2025
additionnal EMC footprint filter S4 - 3-phase supply - 35 A
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 35A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2. Its protection index is IP20. It weighs 5.8kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.

Products specifications

Attribute name Attribute value
Main
Thermal losses 24 W for 200...240 V AC ATV61/ATV71 variable speed drives, 14 W for 380...480 V AC ATV61/ATV71 variable speed drives
Range compatibility Altivar 61, Altivar 71
[In] rated current 35 A
Product specific application radio interference input filter
Network number of phases three phase
Product or component type EMC input filter
Product compatibility ATV71WU75N4, ATV71WU55N4, ATV71PU75N4Z, ATV71PU55N4Z, ATV71HU75N4, ATV71HU55N4, ATV71HU55M3, ATV61HU75N4, ATV61HU55N4, ATV61HU55M3
Range of product Altivar
Complementary
Electrical connection terminal 10 mm² AWG 6
Tightening torque 1.5 N.m
Network rated voltage 200-240 V, 380-500 V
Earth leakage current 3 mA at 400 V 50 Hz, 7 mA at 400 V 50 Hz
Net weight 5.8 kg
Tolerance 10 %
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating
IP degree of protection IP41 (upper part), IP20
Relative humidity 0-93 % conforming to IEC 68-2-3
Ambient air temperature for storage -40-65 °C
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27
Ambient air temperature for operation -10-50 °C
Standards EN 133200
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13 cm
Package 1 Width 61.5 cm
Package 1 Length 27.5 cm
Package 1 Weight 3.075 kg
