SKU:

VW3A3503

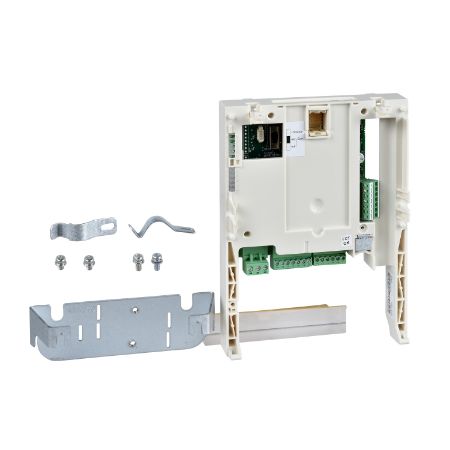

water solution multi-pump card - 24 V DC - for Altivar speed drive

$3,055.20

Qty:

Available for Shipping : 19-Nov-2024

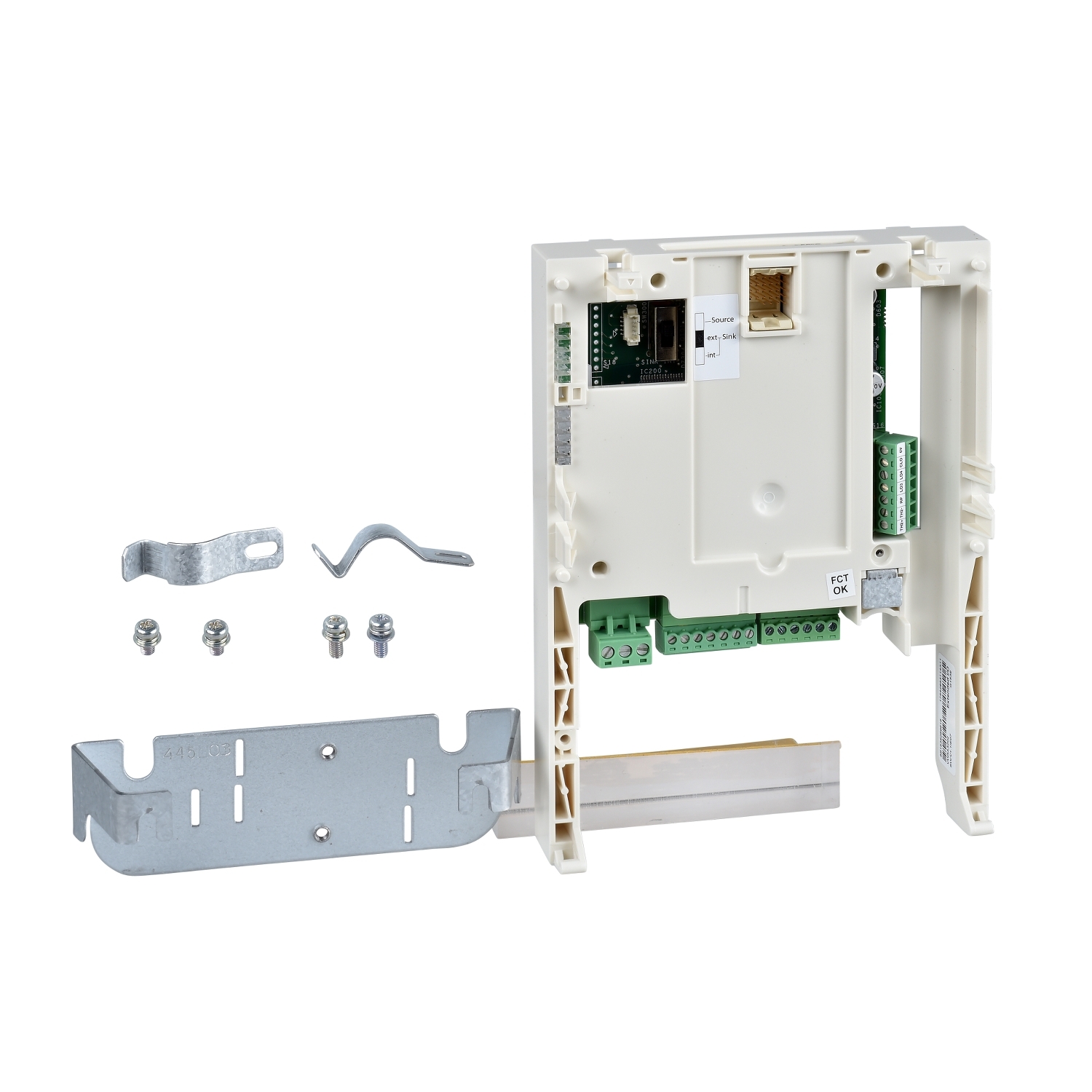

water solution multi-pump card - 24 V DC - for Altivar speed drive

Manufacturer: Telemecanique

Catalogue

Instruction sheet

User guide

Product environmental

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Discrete output type	(LO51...LO56) logic output, compatible with level 1 PLC
Analogue input type	AI51, AI52 current analog input: 0...20 mA, impedance: 250 Ohm, resolution: 10 bits
Supply circuit type	DC
Range compatibility	Altivar 61, Altivar 61Q
Discrete input number	10
Discrete input type	(LI51...LI60) logic inputs, 24 V DC, compatible with level 1 PLC (voltage limits: <= 30 V), impedance: 4.4 kOhm
Discrete output logic	(LO51...LO56) positive
Analogue output number	2
Discrete output number	6
Analogue input number	2
Battery type	lithium
Product or component type	water solution multi-pump card
Analogue output type	AO51, AO52 current analog output: 0...20 mA, impedance: 500 Ohm, resolution: 10 bits
Discrete input logic	positive (LI51...LI60), <= 5 V (state 0), >= 11 V (state 1)
[Us] rated supply voltage	24 V
Complementary
Electrical connection	terminal, 1.5 mm² / AWG 16, 0.25 N.m
Battery life	8 year(s)
Supply voltage limits	19-30 V
Maximum output current	0.2 A, logic output
Connector type	9-way male SUB-D connector
Net weight	0.32 kg
Discrete output voltage	24 V DC, maximum switching voltage: 30 V logic output
Current consumption	80 mA no load, 200 mA maximum per logic output, 2 A maximum
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7.2 cm
Package 1 Width	17.5 cm
Package 1 Length	23.0 cm
Package 1 Weight	412.0 g
Unit Type of Package 2	2
Number of Units in Package 2	7
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	3.471 kg
