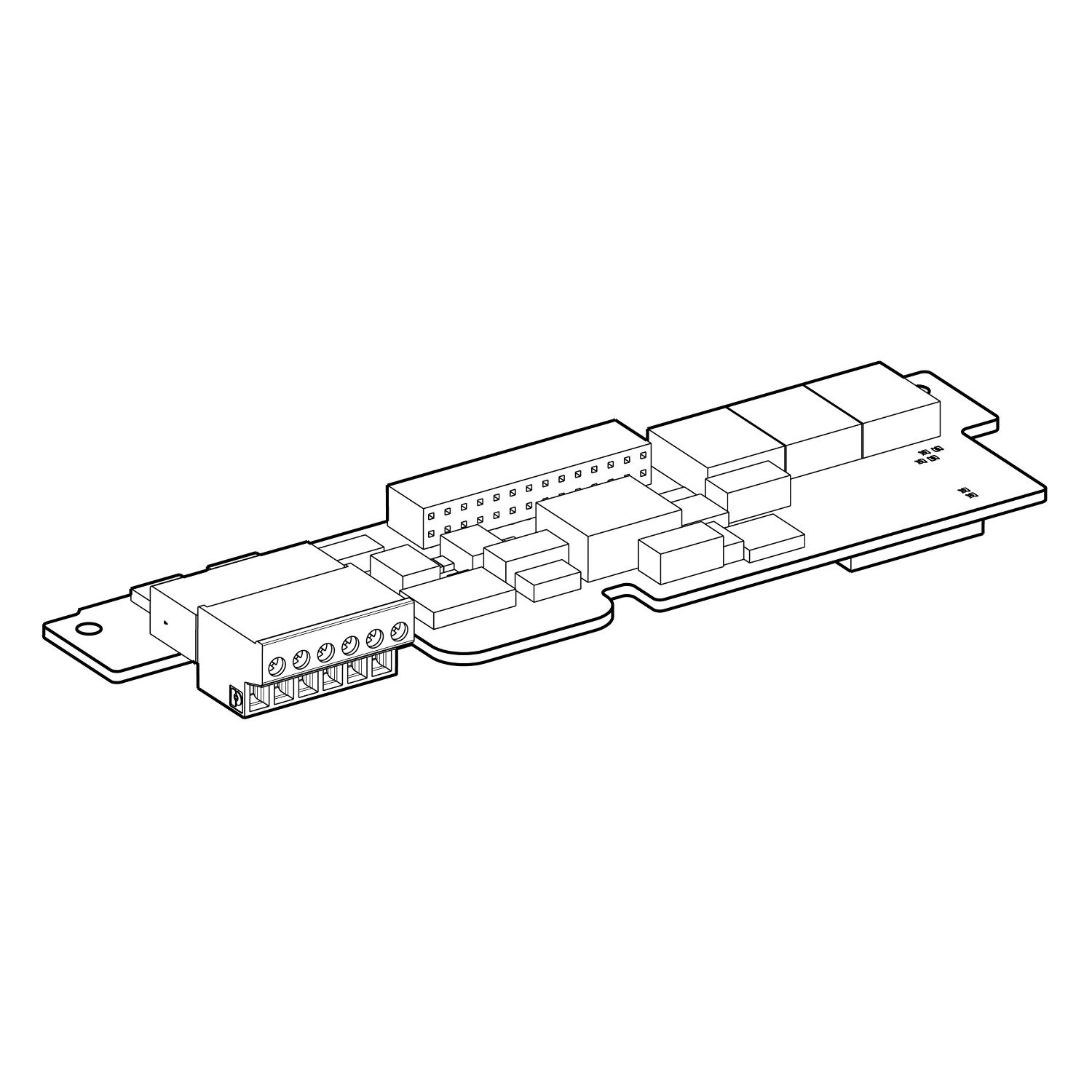

Picture of encoder interface card, Altivar, with push-pull outputs, 24V DC
SKU:

VW3A3407

encoder interface card, Altivar, with push-pull outputs, 24V DC

$563.62
Available for Shipping : 10-Oct-2024
encoder interface card, Altivar, with push-pull outputs, 24V DC
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product environmental
Product Page Link
Product Data Sheet
This encoder interface card can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. It is compatible with push-pull outputs encoder technology. This card is simple to install and remove, it is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar 61 and Altivar 71.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 24 V DC (voltage limits: 20-30 V)
Number of pulses per revolution 5000 for ATV71H...N4, 5000 for ATV71H...M3X, 5000 for ATV71H...M3, 5000 for all ATV61 drives, 10000 for ATV71H......383
Range of product Altivar
Discrete output type push-pull
Range compatibility Altivar Lift, Altivar 61, Altivar 71, Altivar 71Q, Altivar 61Q
Product or component type encoder interface card
Complementary
Voltage state 1 guaranteed > 11.5...< 25 V
Protection type short-circuit protection,  overload protection
Electrical connection terminal, connection capacity: 0.2 mm² (AWG 24) <500 m cable length, encoder, 100 mA at 14 V
Maximum cable distance between devices 500 m
Maximum operating frequency 300 kHz
Input signal compliment of B/AB/A, compliment of A, B, A
Input impedance 1000 Ohm
Maximum supply current 0.175 A
Voltage state 0 guaranteed <= 1.5 V
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 17.000 cm
Package 1 Length 23.000 cm
Package 1 Weight 142.000 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.503 kg
