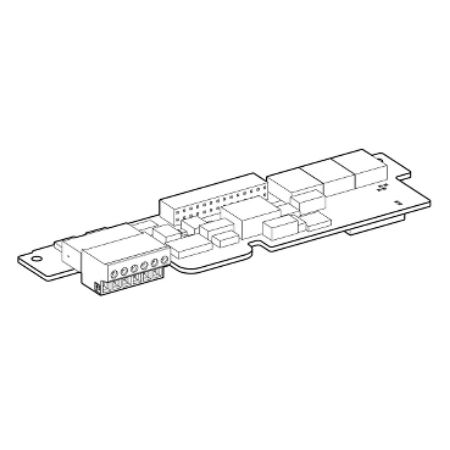

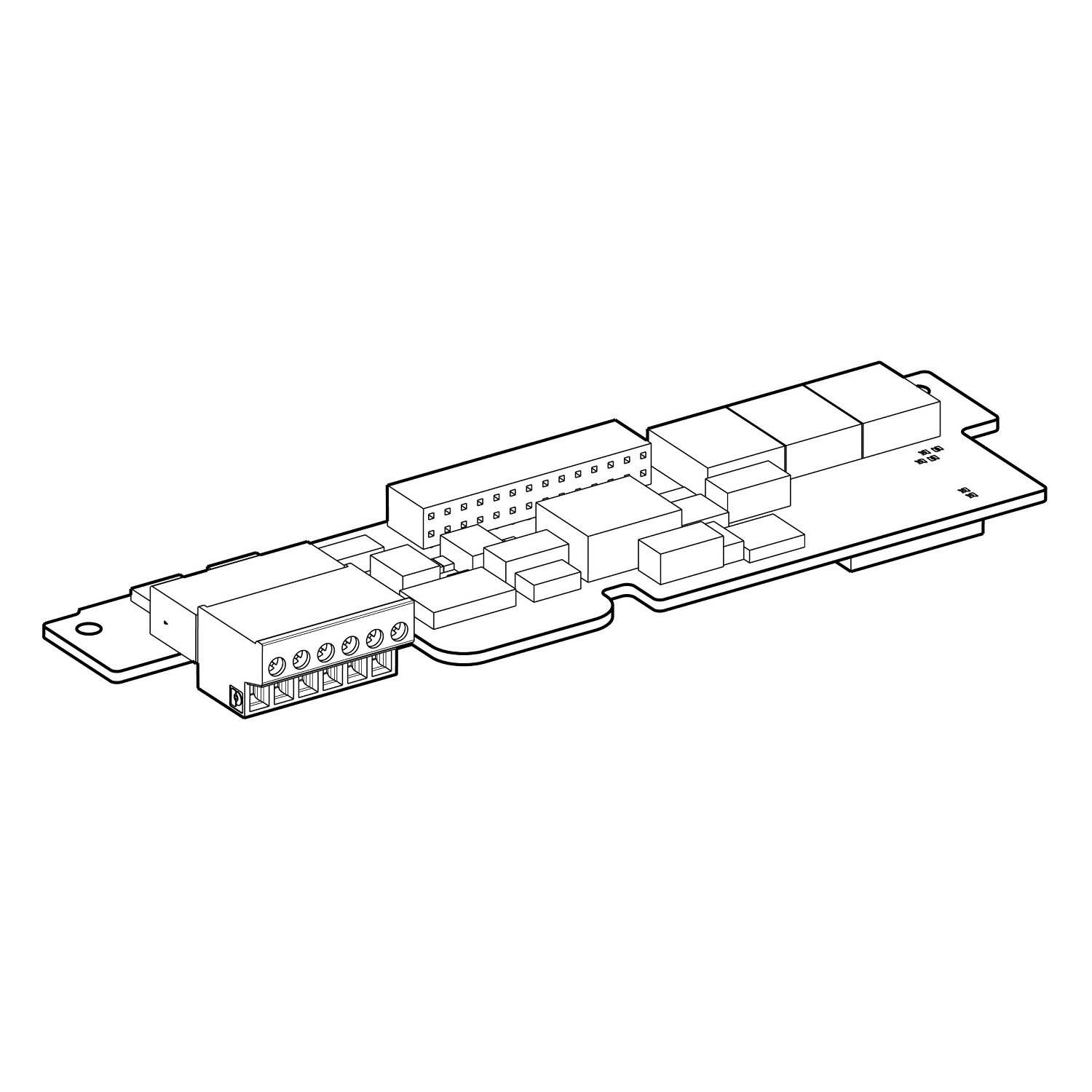

Picture of encoder interface card with push-pull outputs - 12 V DC
SKU:

VW3A3405

encoder interface card with push-pull outputs - 12 V DC

$557.74
Available for Shipping : 14-Nov-2024
encoder interface card with push-pull outputs - 12 V DC
Be the first to review this product
Manufacturer: Telemecanique
Catalogue
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 12 V DC (voltage limits: 12-13 V)
Number of pulses per revolution 5000 for ATV71H...N4, 5000 for ATV71H...M3X, 5000 for ATV71H...M3, 5000 for all ATV61 drives, 10000 for ATV71H......383
Range of product Altivar
Discrete output type push-pull
Range compatibility Altivar 61, Altivar 71Q, Altivar 71, Altivar Lift, Altivar 61Q
Product or component type encoder interface card
Complementary
Voltage state 1 guaranteed > 7.7...< 13 V
Protection type overload protection, short-circuit protection
Electrical connection terminal, connection capacity: 1.5 mm² (AWG 15) <500 m cable length, encoder, 175 mA at 10 V, terminal, connection capacity: 1 mm² (AWG 17) <500 m cable length, encoder, 100 mA at 10 V, terminal, connection capacity: 0.75 mm² (AWG 18) <200 m cable length, encoder, 175 mA at 10 V, terminal, connection capacity: 0.5 mm² (AWG 20) <200 m cable length, encoder, 100 mA at 10 V, terminal, connection capacity: 0.5 mm² (AWG 20) <100 m cable length, encoder, 175 mA at 10 V, terminal, connection capacity: 0.2 mm² (AWG 24) <100 m cable length, encoder, 100 mA at 10 V
Maximum cable distance between devices 500 m
Maximum operating frequency 300 kHz
Input signal compliment of B/AB/A, compliment of A, B, A
Input impedance 1 kOhm
Maximum supply current 0.175 A
Voltage state 0 guaranteed <= 1.5 V
Net weight 0.2 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 17.0 cm
Package 1 Length 23.0 cm
Package 1 Weight 149.0 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.515 kg
