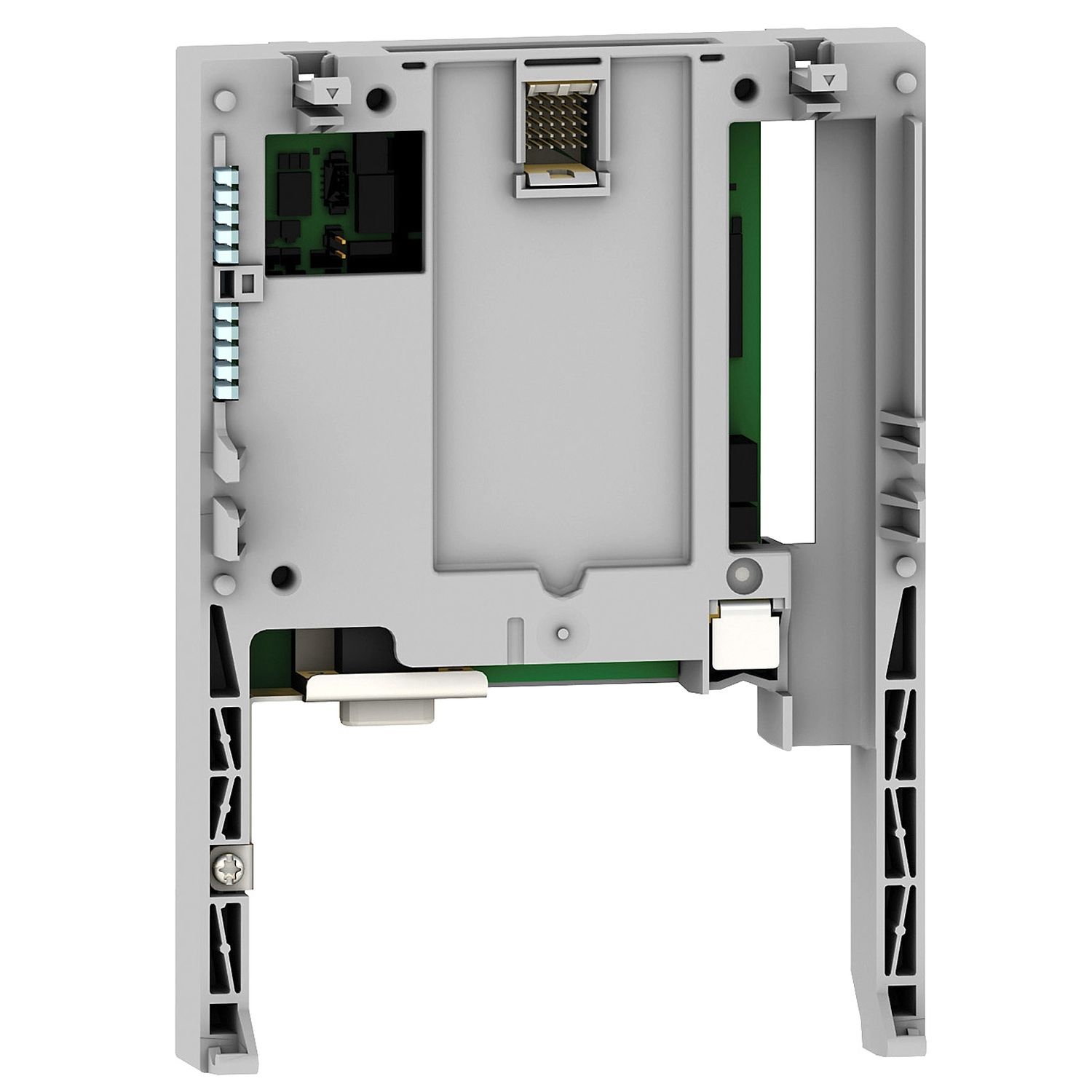

Picture of EtherNet IP, Modbus TCP communication card, Altivar, 10 to 100Mbps, 2 x RJ45 connectors
SKU:

VW3A3320

EtherNet IP, Modbus TCP communication card, Altivar, 10 to 100Mbps, 2 x RJ45 connectors

$1,370.83 EXCL GST
Available for Shipping : 02-Feb-2025
EtherNet IP, Modbus TCP communication card, Altivar, 10 to 100Mbps, 2 x RJ45 connectors
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
User guide
Product Page Link
Product Data Sheet
This EtherNet/IP communication card is an option for variable speed drives of Altivar range. It is equipped with 2 RJ45 connectors. It is compatible with Altivar 61 and Altivar 71. It enables integration of your variable speed drive in your process control network. It weighs 300g.

Products specifications

Attribute name Attribute value
Main
Web services message statistics, Ethernet statistics, drive recorder, Ethernet/IP setup, drive monitor, Altivar chart, Modbus TCP scanner setup, security, e-mail, data editor, FDR Agent, Ethernet/IP scanner setup, drive parameters, Altivar viewer
Connector type 2 RJ45 connectors
Transmission rate 10/100 Mbps
Range compatibility Altivar 61, Altivar 71
Communication port protocol Modbus TCP, EtherNet/IP
Product or component type communication card
Physical interface IEEE 802.3 for Ethernet IP/Modbus TCP
Complementary
Web server embedded
Display type graphic display terminal for reference received, graphic display terminal for number of frames received, graphic display terminal for control word received, 1 LED for TX/RX (Transmit/Receive port 2), 1 LED for TX/RX (Transmit/Receive port 1), 1 LED for NS (Network Status), 1 LED for MS (Module Status), 1 LED for Link (Link Status)
Communication network type ICMP, IP conforming to RFC791
Exchange mode half duplex and full duplex
Addressing IP addressing manual, BOOTP or DHCP
Communication transport type TCP conforming to RFC793, UDP
Communication data link LLC : IEEE 802.2, MAC : IEEE 802.3
Communication service SNMP, read/write multiple registers (23), read input registers (04), read holding registers (03), FTP, diagnostics (08), CIP AC Drive (02) profile, I/O profile, read device identification (43/14), Ethernet/IP adapter, write single register (06), write multiple registers (16), TFTP, CiA 402 profile
Net weight 0.3 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.600 cm
Package 1 Width 17.500 cm
Package 1 Length 23.500 cm
Package 1 Weight 281.000 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.452 kg
Unit Type of Package 3 3
Number of Units in Package 3 28
Package 3 Height 45.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 13.808 kg
