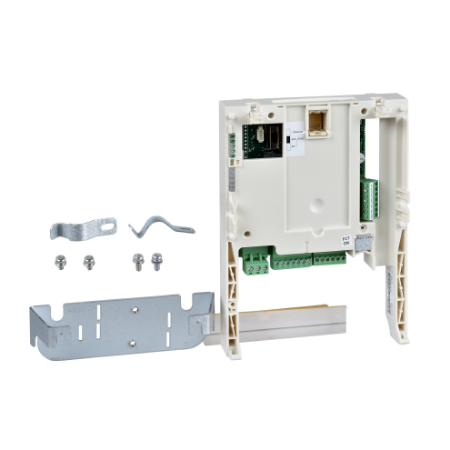

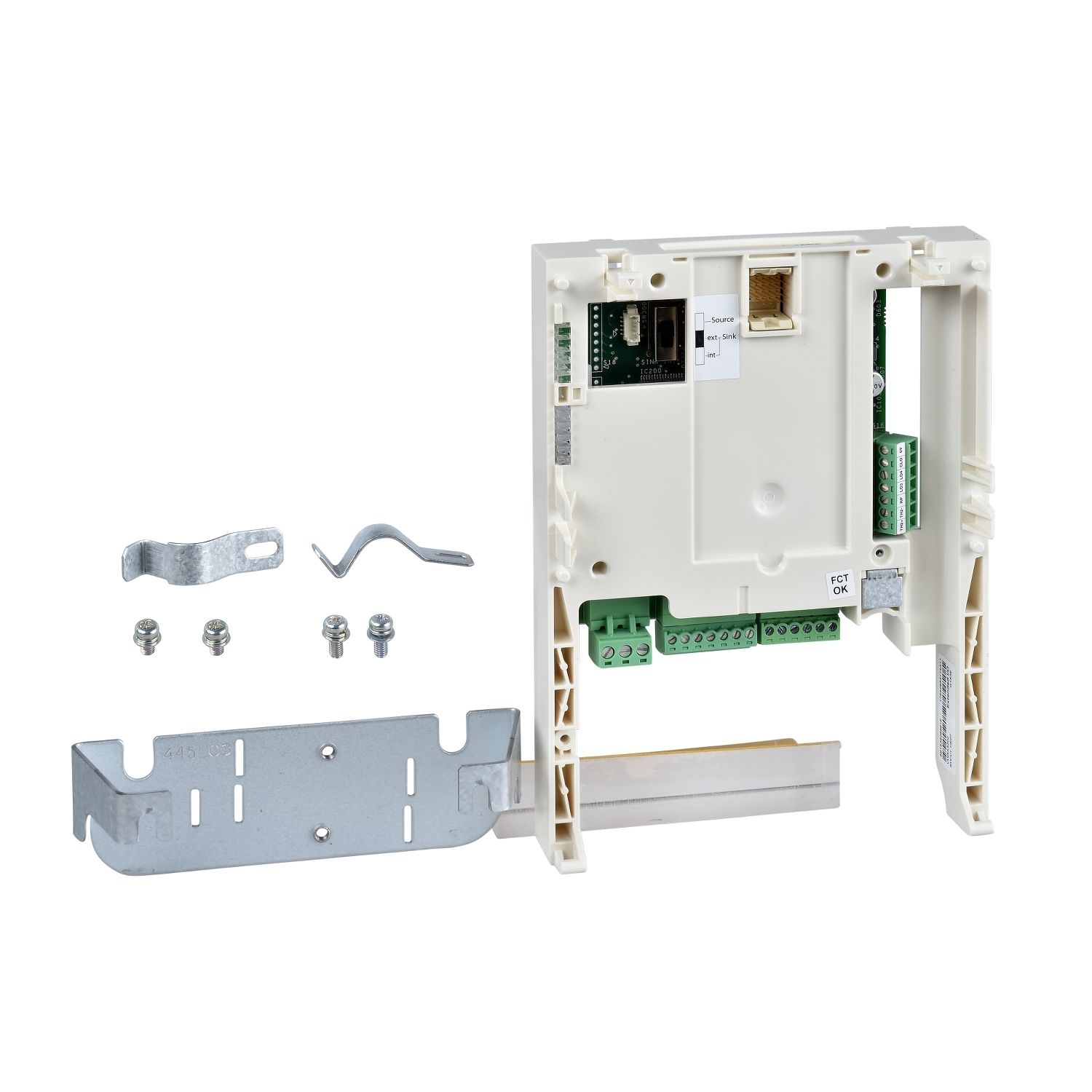

Picture of extended Input Output card, Altivar
SKU:

VW3A3202

extended Input Output card, Altivar

$511.54 EXCL GST
Available for Shipping : 16-Feb-2025
extended Input Output card, Altivar
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalogue
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
This extended I/O card enables your drive to meet the needs of more complex or extensive applications. It comprises four logic inputs, two analog inputs, one input for PTC probe and one frequency control input. It also comprises three logic outputs and two analog outputs. It is compatible with Altivar 61 and Altivar 71.

Products specifications

Attribute name Attribute value
Main
Supply internal supply, 24 V DC (21-27 V) , <0.2 A for overload and short-circuit protection, internal supply for reference potentiometer, 10.5 V DC (10-11 V) , <0.01 A, impedance: 1-10 kOhm for overload and short-circuit protection
Analogue output number 2
Discrete input type (LI11...LI14) programmable, compatible with level 1 PLC, impedance: 3.5 kOhm, sampling time: 4-6 ms, (RP) frequency control, sampling time: 4-6 ms
Analogue input type AI4 software-configurable voltage: 0...10 V DC, 24 V max, impedance: 30000 Ohm, sampling time: 4-6 ms, resolution: 11 bits, AI4 software-configurable current: 0...20 mA, impedance: 250 Ohm, sampling time: 4-6 ms, resolution: 11 bits, AI3-/Al3+ differential current programmable: 0...20 mA, impedance: 250 Ohm, sampling time: 4-6 ms, resolution: 11 bits + sign
Range compatibility Altivar 61, Altivar 71, Altivar 71Q, Altivar Lift, Altivar 61Q
Discrete input number 6
Discrete output logic (LO3, LO4) positive,  (LO3, LO4) negative
Discrete output number 5
Analogue input number 2
Product or component type extended I/O card
Discrete output type (R4A, R4B, R4C) configurable relay logic,  (LO3, LO4) assignable logic, sampling time: 4-6 ms, compatible with level 1 PLC
Analogue output type AO3 software-configurable voltage: +/- 10 V DC, impedance: 470 Ohm, sampling time: 4-6 ms, resolution: 10 bits, AO3 software-configurable current: 0...20 mA, impedance: 500 Ohm, sampling time: 4-6 ms, resolution: 10 bits, AO2 software-configurable voltage: +/- 10 V DC, impedance: 470 Ohm, sampling time: 4-6 ms, resolution: 10 bits, AO2 software-configurable current: 0...20 mA, impedance: 500 Ohm, sampling time: 4-6 ms, resolution: 10 bits
Discrete input logic positive (RP), < 1.2 V (state 0), >= 3.5 V (state 1), positive (LI11...LI14), <= 5 V (state 0), >= 11 V (state 1), negative (LI11...LI14), >= 16 V (state 0), <= 10 V (state 1)
Complementary
Discrete input frequency 0...30 kHz frequency control
Electrical connection terminal, 1.5 mm² / AWG 16, 0.25 N.m
PTC probe input TH2+, TH2- for 6 PTC probe, impedance: <= 1.5 Ohm, TH2+, TH2- short circuit protection, impedance: < 0.05 Ohm, TH2+, TH2- reset resistance, impedance: 1.8 Ohm, TH2+, TH2- trip resistance, impedance: 3 kOhm
Minimum switching current 3 mA at 24 V DC for configurable relay logic
Maximum output current 0.2 A, assignable logic
Discrete output voltage 24 V DC (voltage limits: <= 30 V) assignable logic
Discrete input voltage 24 V DC (voltage limits: <= 30 V) for programmable
Electrical durability 100000 cycles for configurable relay logic
Net weight 0.3 kg
Maximum switching current configurable relay logic 1.5 A at 30 V DC on inductive load, cos phi = 0.4 and L/R = 7 ms, configurable relay logic 1.5 A at 250 V AC on inductive load, cos phi = 0.4 and L/R = 7 ms, configurable relay logic 5 A at 30 V DC on resistive load, cos phi = 1 , configurable relay logic 5 A at 250 V AC on resistive load, cos phi = 1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 17.000 cm
Package 1 Length 23.000 cm
Package 1 Weight 382.000 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.208 kg
