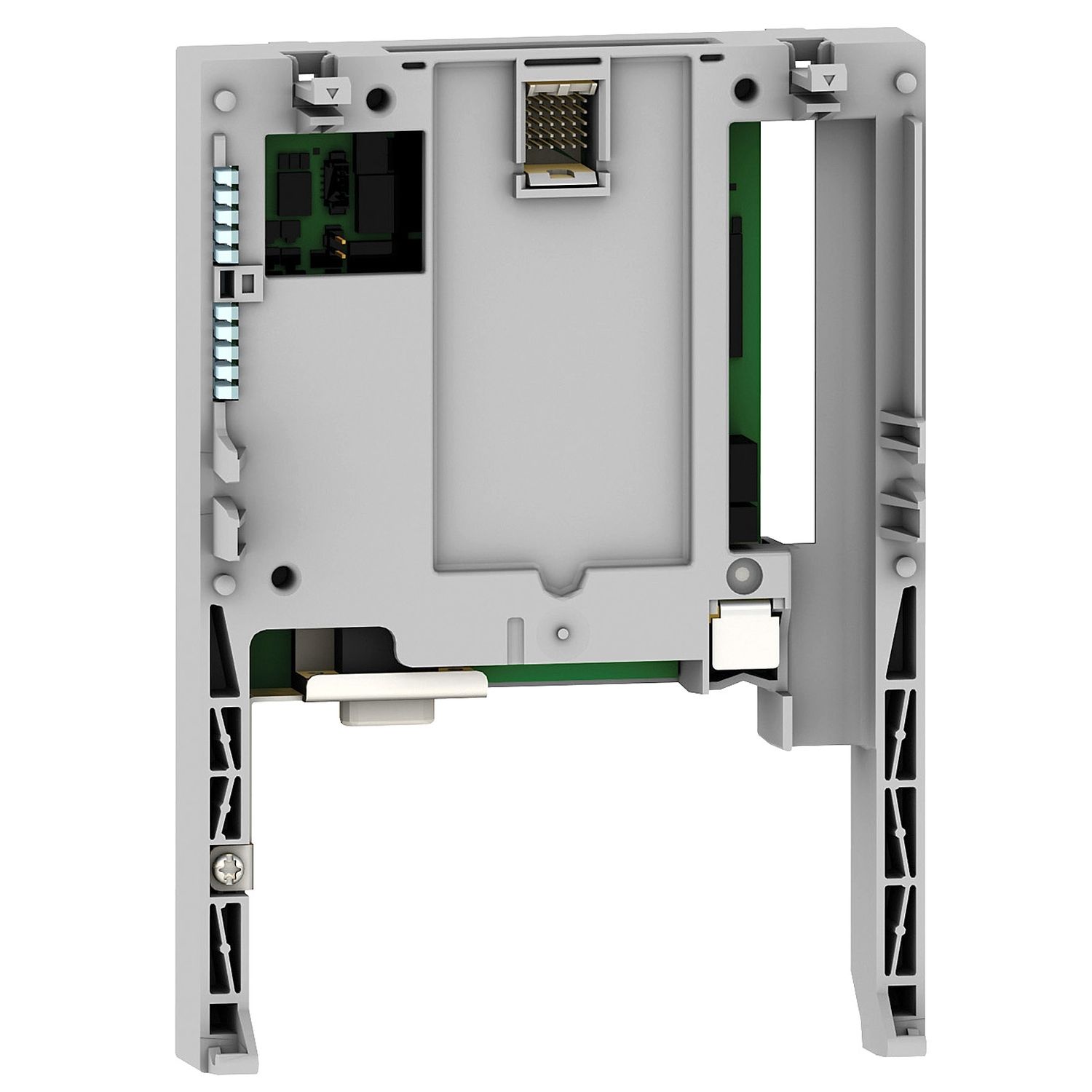

Picture of Modbus TCP communication card, 10 to 100Mbps, 1 x RJ45 connector
SKU:

VW3A3310D

Modbus TCP communication card, 10 to 100Mbps, 1 x RJ45 connector

$1,081.88 INC GST
Available for Shipping : 22-May-2025
Modbus TCP communication card, 10 to 100Mbps, 1 x RJ45 connector
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
This communication card is an option for variable speed drives of Altivar 71 and Altivar 61 ranges. It is equipped with 2 RJ45 connectors. It enables integration of your variable speed drive in your process control network. It uses a modbus TCP communication class C20 protocol. It weighs 0.3kg. It is designed for daisy chain mounting. It conforms to IEEE 802.2, IEE 802.3, RFC791 and RFC793 standards.

Products specifications

Attribute name Attribute value
Main
Web services security, e-mail, data editor, FDR Agent, IO Scanner, Altivar chart, Ethernet statistics, Altivar viewer
Connector type 1 RJ45
Transmission rate 10 Mbps, 100 Mbps
Range compatibility Altivar 61Q, Altivar 71Q, Altivar 71, Altivar 61
Product specific application for daisy chain mounting
Communication port protocol Modbus TCP
Product or component type communication card
Physical interface Ethernet 2
Complementary
Web server embedded
Concept Transparent Ready class C20
Display type web server, graphic display terminal for reference received, graphic display terminal for control word received, 1 LED for TX (transmission), 1 LED for STS (IP address), 1 LED for RX (reception), 1 LED for FLT (Ethernet fault), 1 LED for 10/100 Mbps (speed)
Communication network type IP conforming to RFC791
Exchange mode half duplex and full duplex
Communication transport type TCP conforming to RFC793, 8 connections maximum, UDP
Communication data link MAC : IEEE 802.3, LLC : IEEE 802.2
Communication service read input registers (04), read holding registers (03), read device identification (43), I/O scanning service can be inhibited, FTP, diagnostics (08), communication monitoring can be inhibited, adjustable, I/O profile, write single register (06), write multiple registers (16), TFTP, SNMP, read/write multiple registers (23), CiA 402 profile
Net weight 0.3 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 17.200 cm
Package 1 Length 23.500 cm
Package 1 Weight 282.000 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.490 kg
