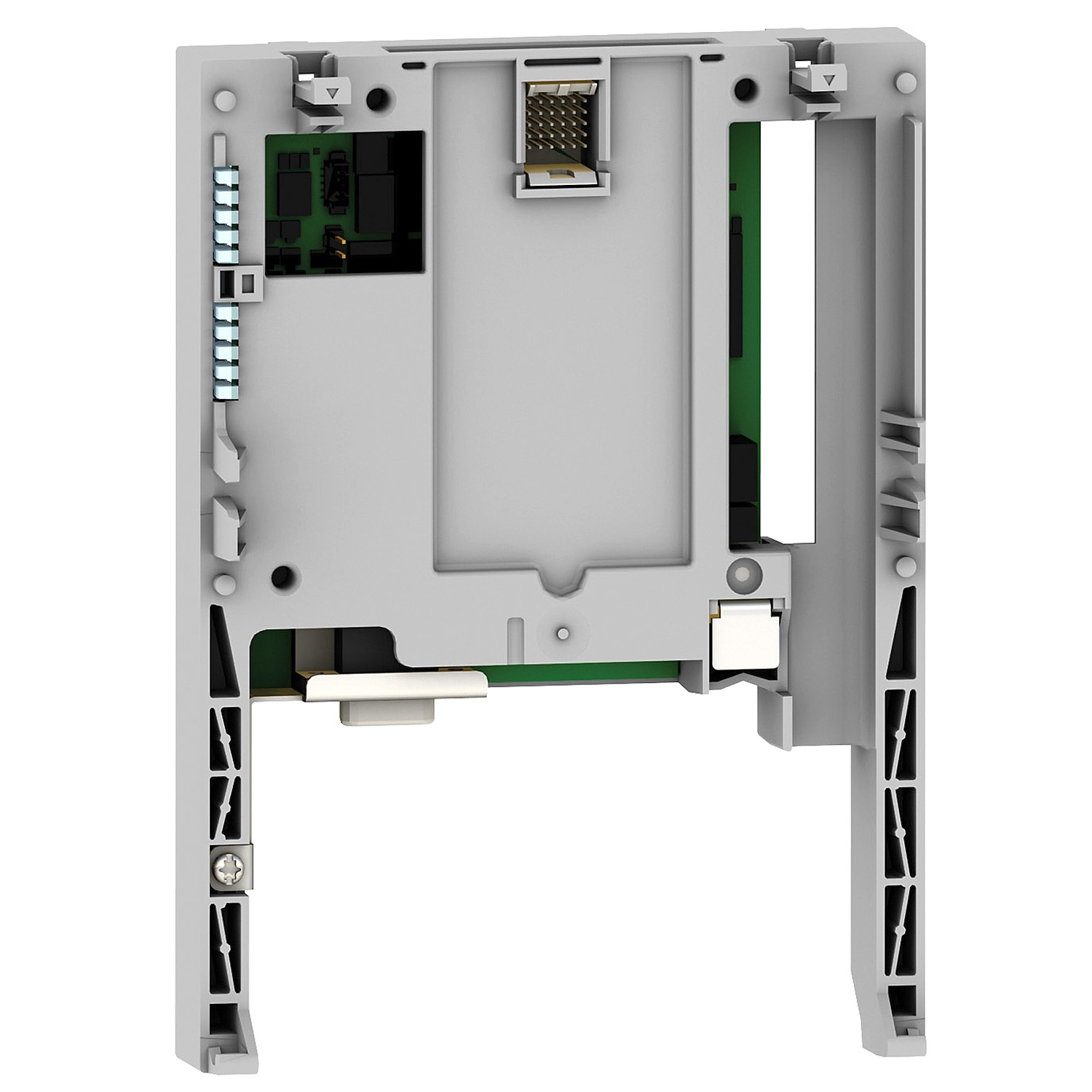

Picture of Modbus ASCII communication card - 4800/9600/19200 bps
SKU:

VW3A3303

Modbus ASCII communication card - 4800/9600/19200 bps

$1,288.80 INC GST
Available for Shipping : 06-Mar-2025
Modbus ASCII communication card - 4800/9600/19200 bps
Be the first to review this product
Manufacturer: Telemecanique
Catalogue
User guide
Instruction sheet
Product Page Link
Product Data Sheet
This Modbus/Uni-Telway communication card enables integration of variable speed drive in your process control network. It is equipped with a 9-way female SUB-D connector. It is compatible with Altivar 61 and Altivar 71.

Products specifications

Attribute name Attribute value
Main
Transmission rate 9600 bps, 4800 bps, 19200 bps
Range compatibility Altivar 71, Altivar 61Q, Altivar 61, Altivar 71Q
Communication port protocol Modbus RTU, Modbus ASCII, Uni-Telway
Connector type 9-way female SUB-D connector
Type of polarization no polarization impedances, two 4.7 kOhm polarization resistors
Product or component type communication card
Physical interface 2-wire RS 485 for Uni-Telway, 4-wire RS485 for Modbus, 2-wire RS 485 for Modbus
Complementary
Display type graphic display terminal for reference received, graphic display terminal for control word received, 1 LED for RUN (status), 1 LED for ERR (fault)
Number of addresses 1-247 for Modbus, 1-147 for Uni-Telway
Communication service read holding registers (03) for Modbus, read error counters (A2h) for Uni-Telway, read device identification (43) for Modbus, protocol version (30h) for Uni-Telway, mirror (FAh) for Uni-Telway, I/O profile for Modbus, diagnostics (08) for Modbus, communication monitoring can be inhibited, fixed, communication monitoring for Modbus, identification of the card for Uni-Telway, write word (14h) for Uni-Telway, write single register (06) for Modbus, write object (37h) for Uni-Telway, write multiple registers (16) for Modbus, reset counters (A4h) for Uni-Telway, read/write multiple registers (23) for Modbus, read word (04h) for Uni-Telway, read object (36h) for Uni-Telway, read input registers (04) for Modbus, CiA 402 profile for Modbus
Net weight 0.3 kg
Data format 8 bits, odd parity, 1 stop for Uni-Telway, 8 bits, odd, even or no parity, 1 stop for Modbus RTU, 8 bits, no parity, 2 stop for Modbus RTU, 7 bits, odd or even parity, 1 or 2 stop for Modbus RTU, 7 bits, odd or even parity, 1 or 2 stop for Modbus ASCII
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.2 cm
Package 1 Width 17.0 cm
Package 1 Length 23.5 cm
Package 1 Weight 287.0 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 2.52 kg
