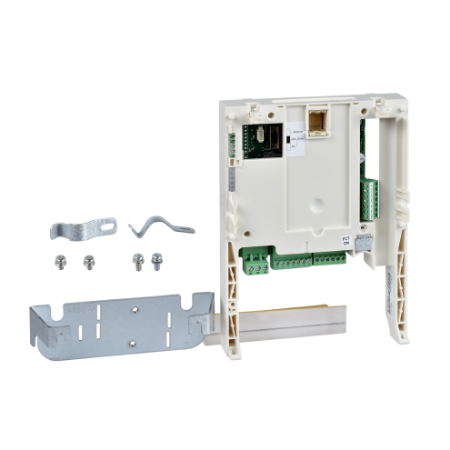

Picture of logic I/O card, Altivar
SKU:

VW3A3201

logic I/O card, Altivar

$366.64 INC GST
Availability: Please contact our sales team on 1300 724 622.
logic I/O card, Altivar
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
User guide
Product environmental
Product Page Link
Product Data Sheet
This logic I/O card enables your drive to meet the needs of more complex or extensive applications. It comprises four logic inputs, one input for PTC probe and three logic outputs. It is compatible with Altivar 61 and Altivar 71.

Products specifications

Attribute name Attribute value
Main
Supply internal supply, 24 V DC (21-27 V) , <0.2 A for overload and short-circuit protection, internal supply for reference potentiometer, 10.5 V DC (10-11 V) , <0.01 A, impedance: 1-10 kOhm for overload and short-circuit protection
Discrete input type (LI7...LI10) programmable, compatible with level 1 PLC, impedance: 3.5 kOhm, sampling time: 1.5-2.5 ms
Range compatibility Altivar 61Q, Altivar 71, Altivar 61, Altivar 71Q, Altivar Lift
Discrete input number 4
Discrete output logic (LO1, LO2) positive,  (LO1, LO2) negative
Discrete output number 5
Product or component type logic I/O card
Discrete output type (LO1, LO2) assignable logic, sampling time: 1.5-2.5 ms, compatible with level 1 PLC,  (R3A, R3B, R3C) configurable relay logic
Discrete input logic positive (LI7...LI10), <= 5 V (state 0), >= 11 V (state 1), negative (LI7...LI10), >= 16 V (state 0), <= 10 V (state 1)
Complementary
Electrical connection terminal, 1.5 mm² / AWG 16, 0.25 N.m
PTC probe input TH1+, TH1- for 6 PTC probe, impedance: <= 1.5 Ohm, TH1+, TH1- short circuit protection, impedance: < 0.05 Ohm, TH1+, TH1- reset resistance, impedance: 1.8 Ohm, TH1+, TH1- trip resistance, impedance: 3 kOhm
Minimum switching current 3 mA at 24 V DC for configurable relay logic
Maximum output current 0.2 A, assignable logic
Discrete output voltage 24 V DC (voltage limits: 12...30 V) assignable logic
Discrete input voltage 24 V DC (voltage limits: <= 30 V) for programmable
Electrical durability 100000 cycles for configurable relay logic
Net weight 0.3 kg
Maximum switching current configurable relay logic 5 A at 30 V DC on resistive load, cos phi = 1 , configurable relay logic 5 A at 250 V AC on resistive load, cos phi = 1 , configurable relay logic 2 A at 30 V DC on inductive load, cos phi = 0.4 and L/R = 7 ms, configurable relay logic 2 A at 250 V AC on inductive load, cos phi = 0.4 and L/R = 7 ms
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 17.000 cm
Package 1 Length 23.000 cm
Package 1 Weight 357.000 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.980 kg
