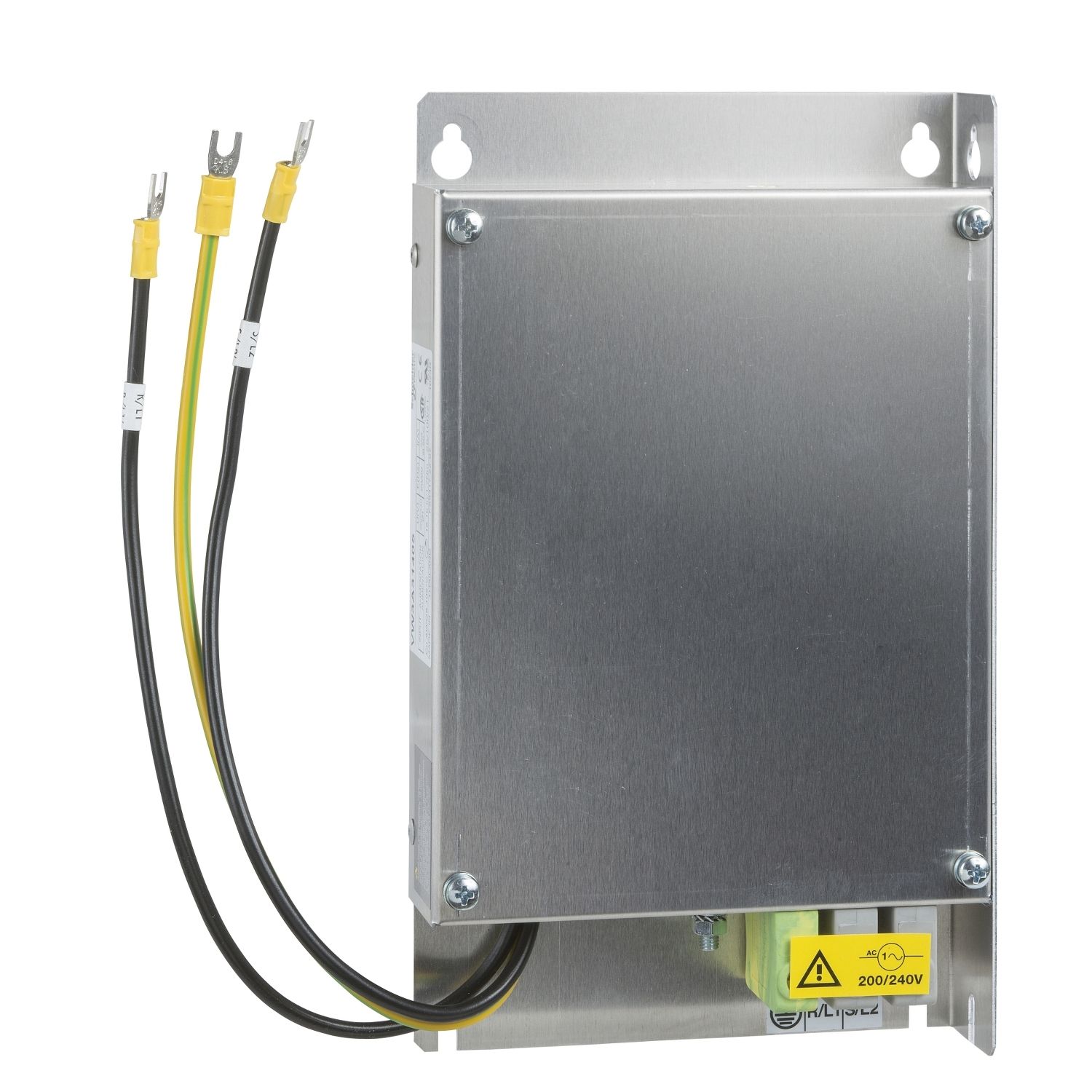

Picture of Altivar 31, Additionnal EMC filter, S7 M2, 1-phase supply, 22 A
SKU:

VW3A31405

Altivar 31, Additionnal EMC filter, S7 M2, 1-phase supply, 22 A

$516.23 INC GST
Available for Shipping : 09-Feb-2025
Product Selector
Altivar 31, Additionnal EMC filter, S7 M2, 1-phase supply, 22 A
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Thermal losses 7.5 W for ATV31CU22M2
Range compatibility Altivar Machine ATV320, Altivar 31C, Altivar 312 Solar, Lexium 05, Altivar 312
[In] rated current 22 A
Product specific application radio interference input filter
Network number of phases single phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV320...W/ATV320...WS motor: 2.2 kW, 200...240 V single phase, variable speed drive ATV320...C motor: 2.2 kW, 200...240 V single phase, LXM05CD28M2, LXM05BD28M2, LXM05BD28F1, LXM05AD28M2, LXM05AD28F1, ATV31CU22M2, ATV312HU22M2
Range of product Altivar
Complementary
Network rated voltage 200-240 V
Earth leakage current 80 mA 50 Hz
Net weight 1.13 kg
Tolerance 10 %
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating
IP degree of protection IP41 (upper part), IP20
Relative humidity 0-93 % conforming to IEC 68-2-3
Ambient air temperature for storage -25-70 °C
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27
Ambient air temperature for operation -10-50 °C
Standards EN 133200
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.200 cm
Package 1 Width 23.000 cm
Package 1 Length 27.700 cm
Package 1 Weight 959.000 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 7.466 kg
