Picture of Altivar 31, Additionnal EMC input filter, 3-phase supply, 15 A
SKU:

VW3A31404

Altivar 31, Additionnal EMC input filter, 3-phase supply, 15 A

$420.41 INC GST
Available for Shipping : 10-Apr-2025
Product Selector
Altivar 31, Additionnal EMC input filter, 3-phase supply, 15 A
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet

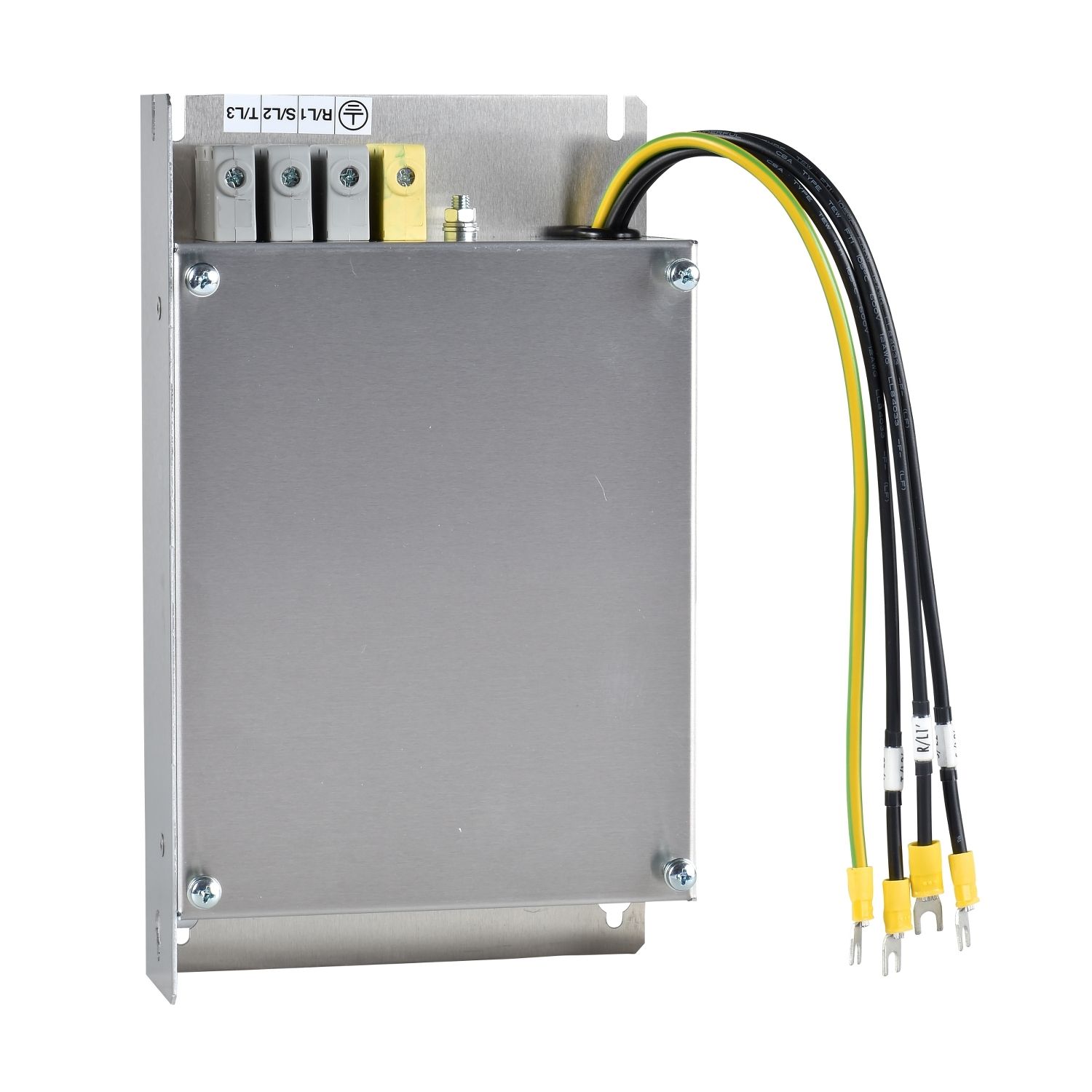

This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 15A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2 or C3. Its protection index is IP20. It weighs 1kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.

Products specifications

Attribute name Attribute value
Main
Thermal losses 9.9 W for ATV31HU11M3X, 3.3 W for ATV21HU22M3X, 1.6 W for ATV21HU15M3X, 0.9 W for ATV21HU22N4, 0.47 W for ATV21H075M3X, 0.45 W for ATV21HU15N4, 0.13 W for ATV21H075N4
Range compatibility Altivar 212, Lexium 05, Altivar Machine ATV320, Altivar 312 Solar, Altivar 312, Lexium 23 Plus, Altivar 31C
[In] rated current 15 A
Product specific application radio interference input filter
Network number of phases three phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV320...W/ATV320...WS motor: 1.5 kW, 380...500 V three phase, variable speed drive ATV320...W/ATV320...WS motor: 1.1 kW, 380...500 V three phase, variable speed drive ATV320...W/ATV320...WS motor: 0.75 kW, 380...500 V three phase, variable speed drive ATV320...W/ATV320...WS motor: 0.55 kW, 380...500 V three phase, variable speed drive ATV320...W/ATV320...WS motor: 0.37 kW, 380...500 V three phase, variable speed drive ATV320...C motor: 2.2 kW, 200...240 V three phase, variable speed drive ATV320...C motor: 1.5 kW, 200...240 V three phase, variable speed drive ATV320...C motor: 1.1 kW, 200...240 V three phase, variable speed drive ATV320...C motor: 1.5 kW, 380...500 V three phase, variable speed drive ATV320...C motor: 1.1 kW, 380...500 V three phase, variable speed drive ATV320...C motor: 0.75 kW, 380...500 V three phase, variable speed drive ATV320...C motor: 0.55 kW, 380...500 V three phase, variable speed drive ATV320...C motor: 0.37 kW, 380...500 V three phase, ATV312HU15N4, ATV312HU11N4, ATV312H075N4, ATV312H055N4, ATV312H037N4, ATV312HU22M3, ATV312HU15M3, ATV312HU11M3, LXM05CD14N4, LXM05BD17M3X, LXM05BD14N4, LXM05AD17M3X, LXM05AD14N4, ATV31CU15N4, ATV31CU11N4, ATV31C075N4, ATV31C055N4, ATV31C037N4, ATV212HU22N4, ATV212HU22M3X, ATV212HU15N4, ATV212HU15M3X, ATV212H075N4, ATV212H075M3X, servo drive LXM23 motor: 3 kW, servo drive LXM23 motor: 2 kW, servo drive LXM23 motor: 1.5 kW, servo drive LXM23 motor: 1 kW, servo drive LXM23 motor: 0.75 kW
Range of product Altivar
Complementary
Electrical connection terminal 10 mm² AWG 6
Compatibility code LXM23
Tightening torque 1.8 N.m
Network rated voltage 380-500 V, 200-240 V
Earth leakage current 6.7 mA at 230 V 60 Hz, 13.8 mA at 480 V 60 Hz, 15 mA at 200...480 V 50 Hz
Net weight 1 kg
Tolerance 10 %
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without derating, <= 1000 m without current derating
IP degree of protection IP41 (upper part), IP20
Relative humidity 0-93 % conforming to IEC 68-2-3
Ambient air temperature for storage -25-70 °C
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation -10-50 °C
Standards IEC 61800-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.200 cm
Package 1 Width 18.700 cm
Package 1 Length 24.200 cm
Package 1 Weight 930.000 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 103.000 kg
