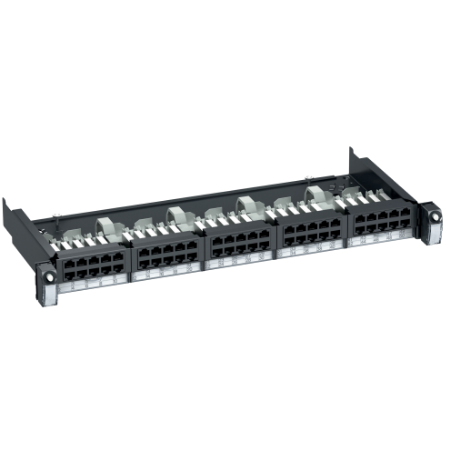

Picture of Actassi 19-C Telecom Panel Sliding 19" 1U, 50 port
SKU:

VDIG141501

Actassi 19-C Telecom Panel Sliding 19" 1U, 50 port

$508.80 EXCL GST
Available for Shipping : 23-Jan-2025

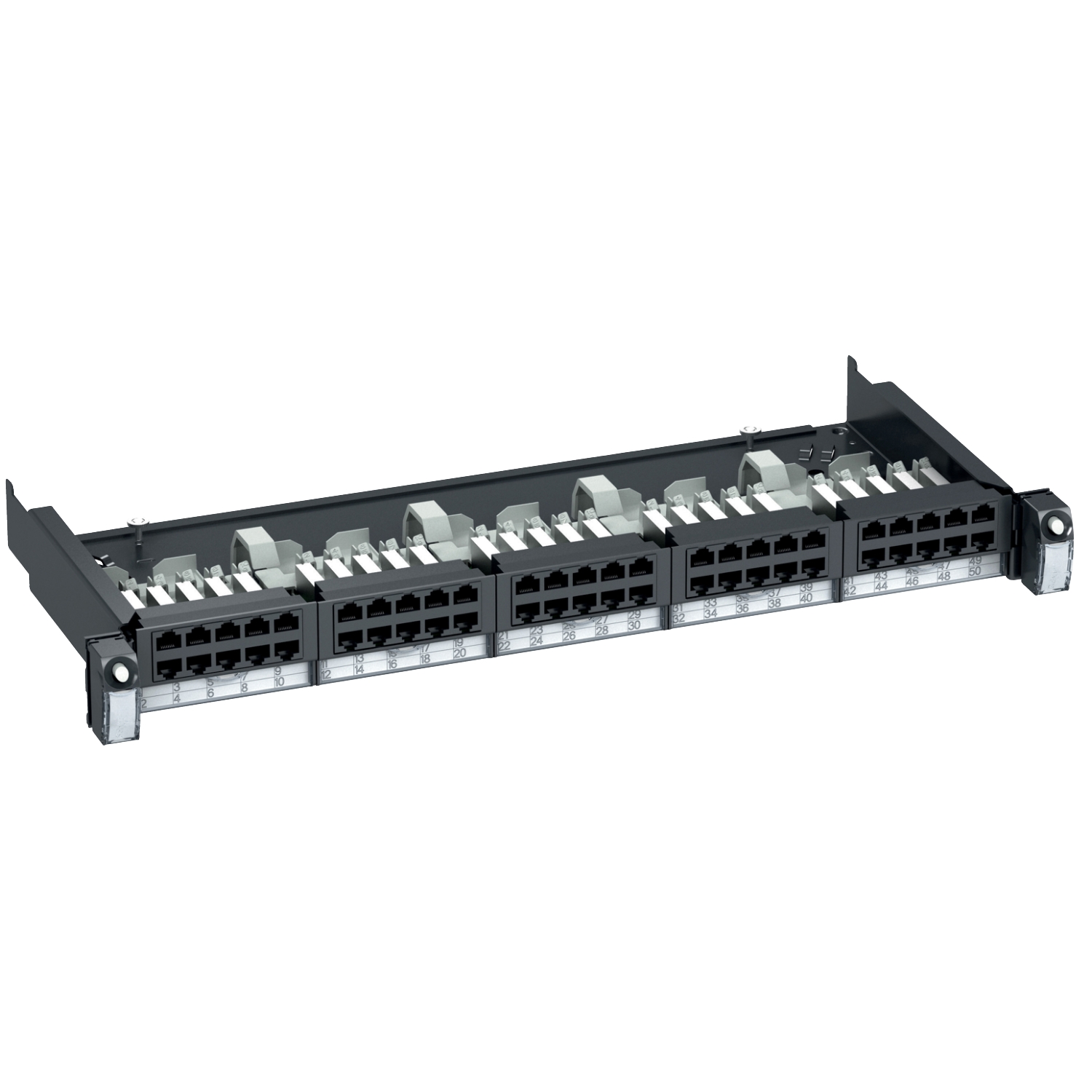

Actassi 19-C Telecom Panel Sliding 19" 1U, 50 port
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
Product environmental
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This 19 inch rack can support 50 Telecom connector in 1U height. It is equipped with one quick fix function on both sides to allow a simple fixation into the rack. It has also a sliding function to have access to Telecom IDC termination by the front of the panel. Telecom connection connectors can be terminated inside the rack. Labels are provided to identify each ports and are protected by transparent label holders. 2 dedicated labels are provided on each side to identify the panel inside the rack. Labels are provided and protected by transparent label holders. Advanced rear cable management is included to fix each cable in a easy and safe operation. It provides 2 earthing connection points for both shielded cables and for the rack at the rear.

Products specifications

Attribute name Attribute value
Main
Provided equipment label holder 4 , quick fix 19" mounting 2 , rear cable manager 1
Colour dark grey
Range Actassi
Product or component type 19” telecom panel
Complementary
Depth 230 mm
Width 490 mm
Connections - terminals LSA punch down blocks on PCB
Number of rack unit 1U
Number of port 50 port in 2 horizontal rows
Net weight 2.8 kg
Material PC (polycarbonate) plastic part, PA (polyamide) 6 plastic part, PA66 GF20 plastic part, DC01 metal sheet 1.2 mm
Targeted region Europe, Asia Pacific.
Height 45 mm
Environment
Standards NF C 20-150, IEC 60297
Ambient air temperature for operation -10-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.000 cm
Package 1 Width 27.000 cm
Package 1 Length 55.000 cm
Package 1 Weight 2.717 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 17.140 kg
Unit Type of Package 3 3
Number of Units in Package 3 24
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 80.560 kg
