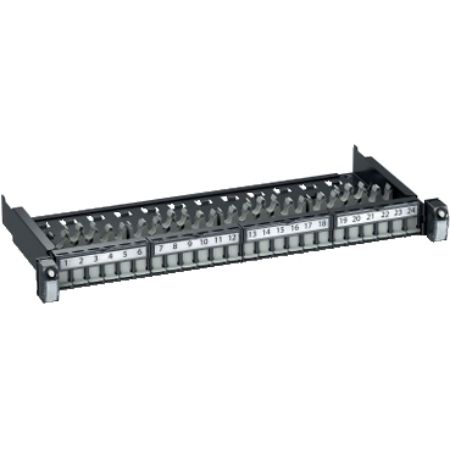

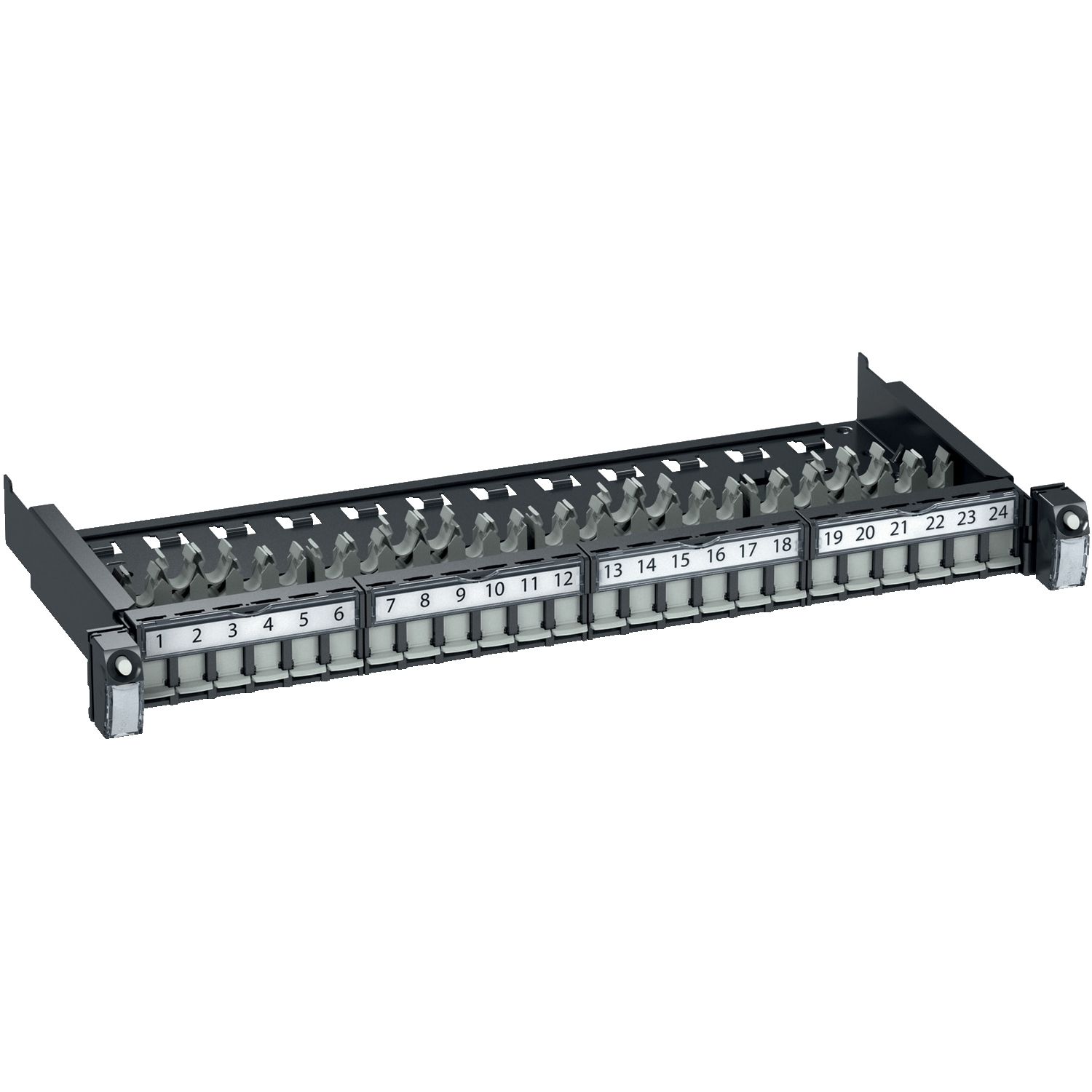

Picture of Actassi 19-C Patch Panel Sliding Evo 19" 1U 24pt S-OneDPM FTP/STP Empty
SKU:

VDIG111241F

Actassi 19-C Patch Panel Sliding Evo 19" 1U 24pt S-OneDPM FTP/STP Empty

$183.60 INC GST
Available for Shipping : 21-Jan-2025
Actassi 19-C Patch Panel Sliding Evo 19" 1U 24pt S-OneDPM FTP/STP Empty
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Product environmental
Brochure
Catalogue
Product Page Link
Product Data Sheet
This empty sliding 19 inch copper panels contain a front configuration for 24 S-One DPM shielded connectors in 1U height. It is equipped with one Quick Fix function on both sides to allow a simple, quick fixing position and sliding feature. Plus pre-equipped with 24 light grey shutters, 4 label holders and 1 rear cable organizer. The panel is in metal material with thickness 1.2mm and dark grey RAL 7016. It provides simple clicking connectors for mounting and automatic earthing with the pre-eqipped bus bar. The panel dimensions- Height 45mm, Width 490mm, Depth 230mm.

Products specifications

Attribute name Attribute value
Main
Provided equipment 1 rear cable organizer, 1 connector release tool, 2 quick fix 19" mountings, 4 label holders
Colour dark grey (RAL 7016)
Additional information automatic grounding
Device presentation empty
Range Actassi
Product or component type empty sliding 19" data panel
Complementary
Depth 230 mm
Width 490 mm
Communication network category 6<sub>A</sub>, 6, 5e
Number of rack unit 1U
Number of port 24 port of FTP/STP
Net weight 2.7 kg
Material PA66 GF20 plastic part, PA6 plastic part, DC01 metal sheet 1.2 mm
Targeted region Europe, Asia Pacific.
Variant evolution
Height 45 mm
Type of footprint S-One DPM
Environment
Standards NF C 20-150, IEC 60297
Ambient air temperature for operation -10-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.800 cm
Package 1 Width 27.000 cm
Package 1 Length 55.000 cm
Package 1 Weight 2.157 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 13.559 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 119.442 kg
