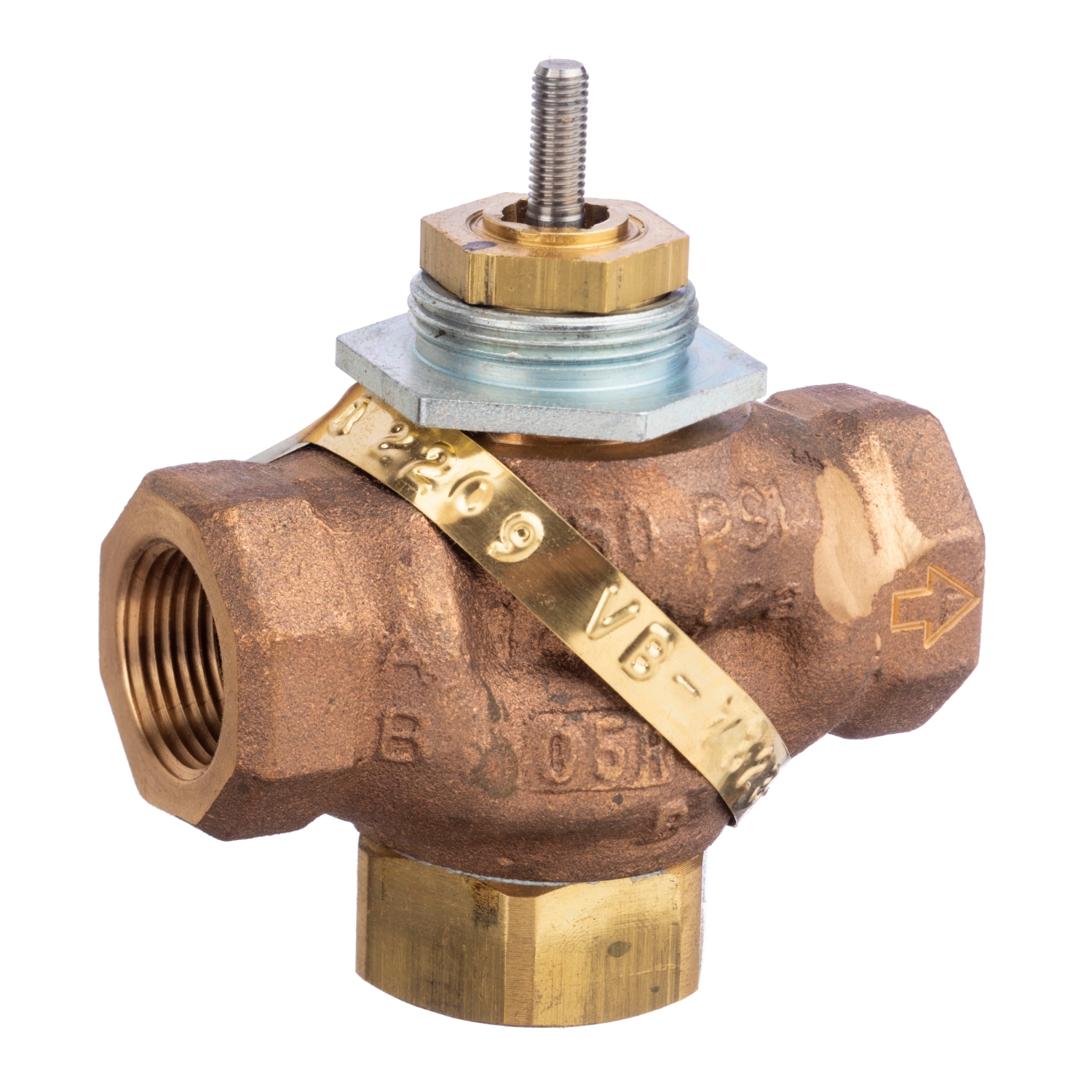

Picture of VB: 3/4 in, 3W Div, Globe, NPT, UO, BR, 7.5 cv, Venta, No Steam
SKU:

VB-7323-0-4-06

VB: 3/4 in, 3W Div, Globe, NPT, UO, BR, 7.5 cv, Venta, No Steam

$674.06 INC GST
Available for Shipping : 21-Jan-2025
VB: 3/4 in, 3W Div, Globe, NPT, UO, BR, 7.5 cv, Venta, No Steam
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Product Page Link
Product Data Sheet
VB: 3/4 in, 3W Div, Globe, NPT, UO, BR, 7.5 cv, Venta, No Steam

Products specifications

Attribute name Attribute value
Main
Seating seal material Port B:metal to metal, Port A:metal to metal
Seat leakage Port A: Class III (0.1 %)
Operating fluid temperature -7-138 °C
Product or component type valve
Targeted region North America.
Body material bronze
Seat material Port B: bronze, Port A: bronze
Valve product range Venta
Pressure allowable static 400 psig up to 150 °F decreasing to 321 psig at 281 °F
Valve type globe
Packing material spring-loaded PTFE/EPDM
Valve connection type NPT
Flow characteristic linear
Medium compatibility Water, Glycol 60 %, Glycol 50 %, Glycol 30 %, Glycol 25 %
Trim material brass
Stroke length 7/16 in
Stem material stainless steel 316
Control valve rangeability 100:1
Plug material brass
Valve product series VB-7300
Pipe size 20 mm
Flow coefficient 6.49 kvs, 7.5 cv
Stem flow action Stem up flow B to AB
Valve configuration 3-Way Diverting
Stem movement linear
Pressure fluid max delta P normal life 35 psi
Pressure class ANSI class 250
Body size 20 mm (3/4 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.6 cm
Package 1 Width 8.5 cm
Package 1 Length 7.6 cm
Package 1 Weight 0.816 kg
