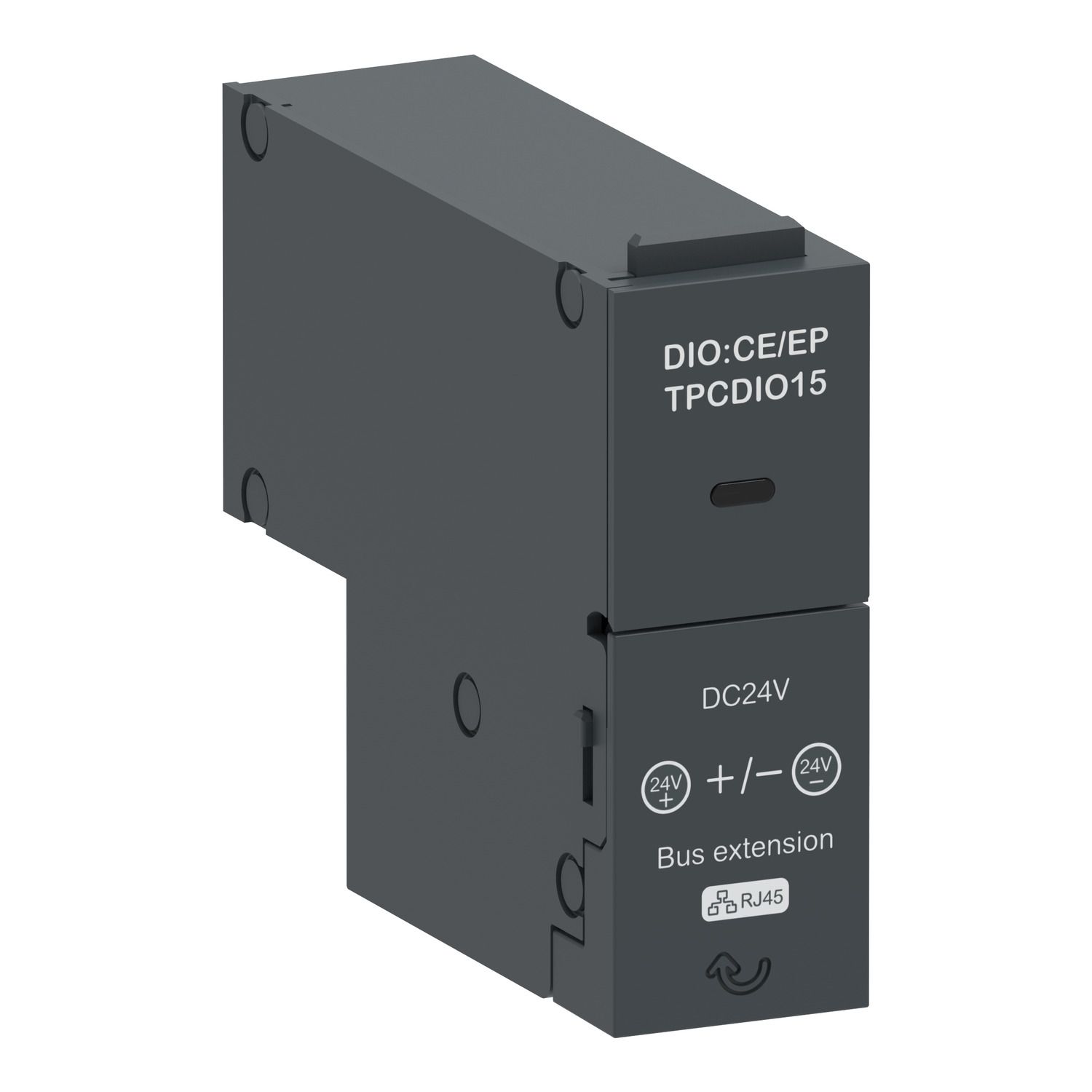

Picture of function module, TransferPacT, bus extension and 24V DC auxiliary supply
SKU:

TPCDIO15

function module, TransferPacT, bus extension and 24V DC auxiliary supply

Old price: $171.16 INC GST
$136.93 INC GST
Available for Shipping : 12-Jan-2026
function module, TransferPacT, bus extension and 24V DC auxiliary supply
  • CAN extension for external HMI
  • DC 24V for modules
  • Simple add-on module that can be installed any time
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
Declaration of conformity
User guide
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
TPCDIO15 is a module as signalling accessory. The siginal function is for external power input and CAN extension. This CAN extension can provide a RJ45 port to connect external HMI. The external power(24VDC) is for controller when both source lost or Genset start delay or keep power for communication.

Products specifications

Attribute name Attribute value
Main
Device application signalling
Product or component type I/O module
Range of product TransferPacT
Complementary
[Ui] rated insulation voltage 30 V DC
Depth 69 mm
Width 20 mm
Mounting position left-bottom
Mounting mode plug-in
Accessory / separate part category signalling accessory
Auxiliary connection terminal screw clamp terminal 0.05-2.6 mm²
Input current 1 A 24 V DC +/- 20 %
Tightening torque 0.6 N.m +/- 0.1 N.m
Auxiliary contact composition without
Height 56.5 mm
Signalling function output voltage (24 V), CAN extension (connect to external HMI)
Environment
IP degree of protection IP20
Pollution degree 3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 5.700 cm
Package 1 Length 6.900 cm
Package 1 Weight 140.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.300 kg
