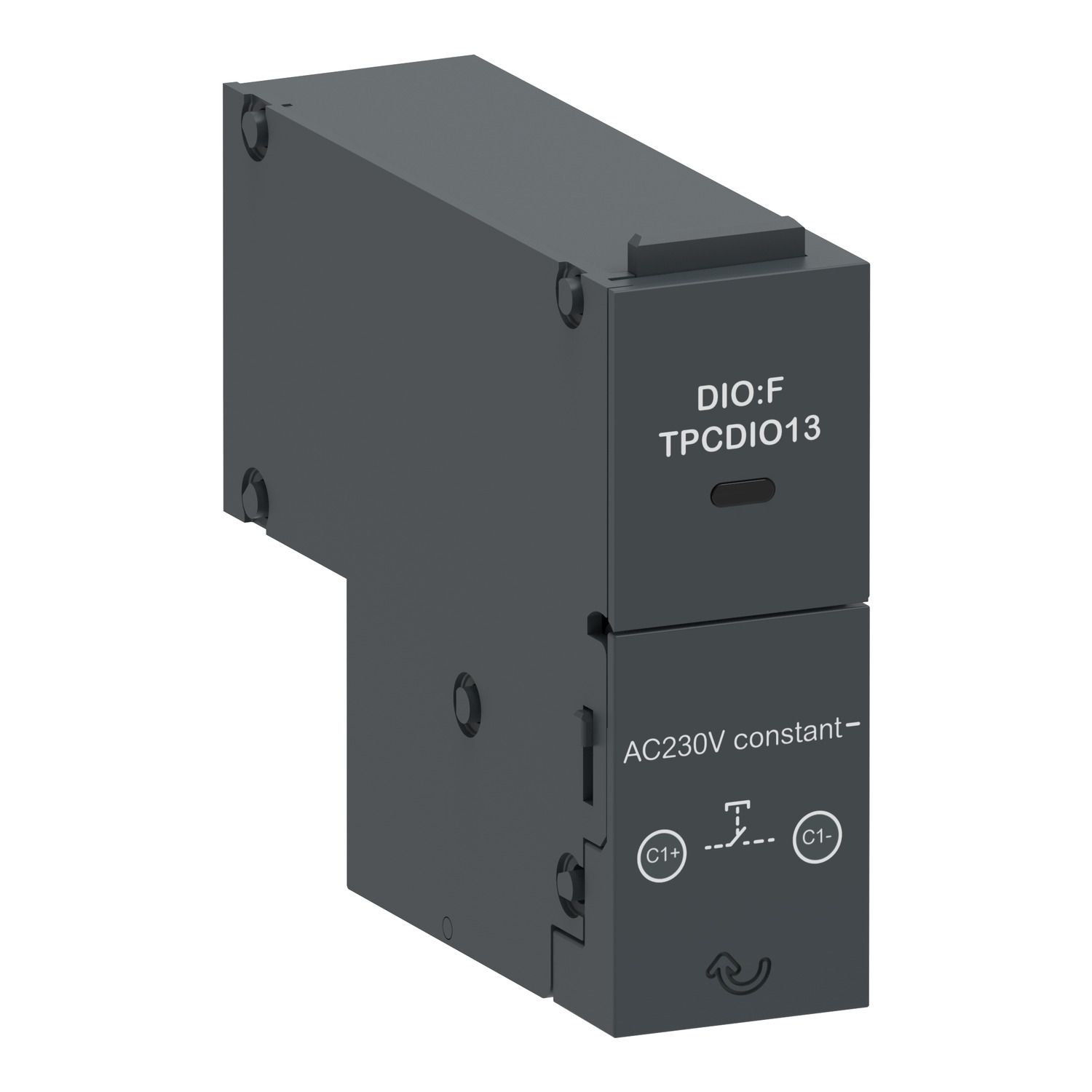

Picture of function module, TransferPacT, fire protection, 230V AC constant, input signal
SKU:

TPCDIO13

function module, TransferPacT, fire protection, 230V AC constant, input signal

Old price: $136.84 INC GST
$109.47 INC GST
Available for Shipping : 17-Dec-2025
function module, TransferPacT, fire protection, 230V AC constant, input signal
  • Transfer ATSE to off position when there is fire emergency and protect power continuity for crtical loads4
  • simple add-on module that can be installed any time
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 17-Dec-2025
Environmental Disclosure
Instruction sheet
User guide
Circularity Profile
Declaration of conformity
Product Page Link
Product Data Sheet
TPCDIO13 is input module as signalling accessory. It is provided 230VAC @50/60Hz with maximum input current 10mA,constant signal for fire protection The fire protection signal can transfer ATSE to off position when there is fire emergency and protect power continuity for crtical loads as well.

Products specifications

Attribute name Attribute value
Main
Device application signalling
Product or component type I/O module
Range of product TransferPacT
Complementary
[Ui] rated insulation voltage 300 V AC
Depth 69 mm
Width 20 mm
Mounting position left-bottom
Mounting mode plug-in
Accessory / separate part category signalling accessory
Net weight 40 g
Auxiliary connection terminal screw clamp terminal 0.05-2.6 mm²
Input current 10 mA 230 V AC +/- 20 %
Tightening torque 0.6 N.m +/- 0.1 N.m
Auxiliary contact composition 1 NO
Height 56.5 mm
Signalling function fire protection (transfer to off position)
Environment
IP degree of protection IP20
Pollution degree 3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.400 cm
Package 1 Width 10.500 cm
Package 1 Length 10.700 cm
Package 1 Weight 86.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 1.996 kg
