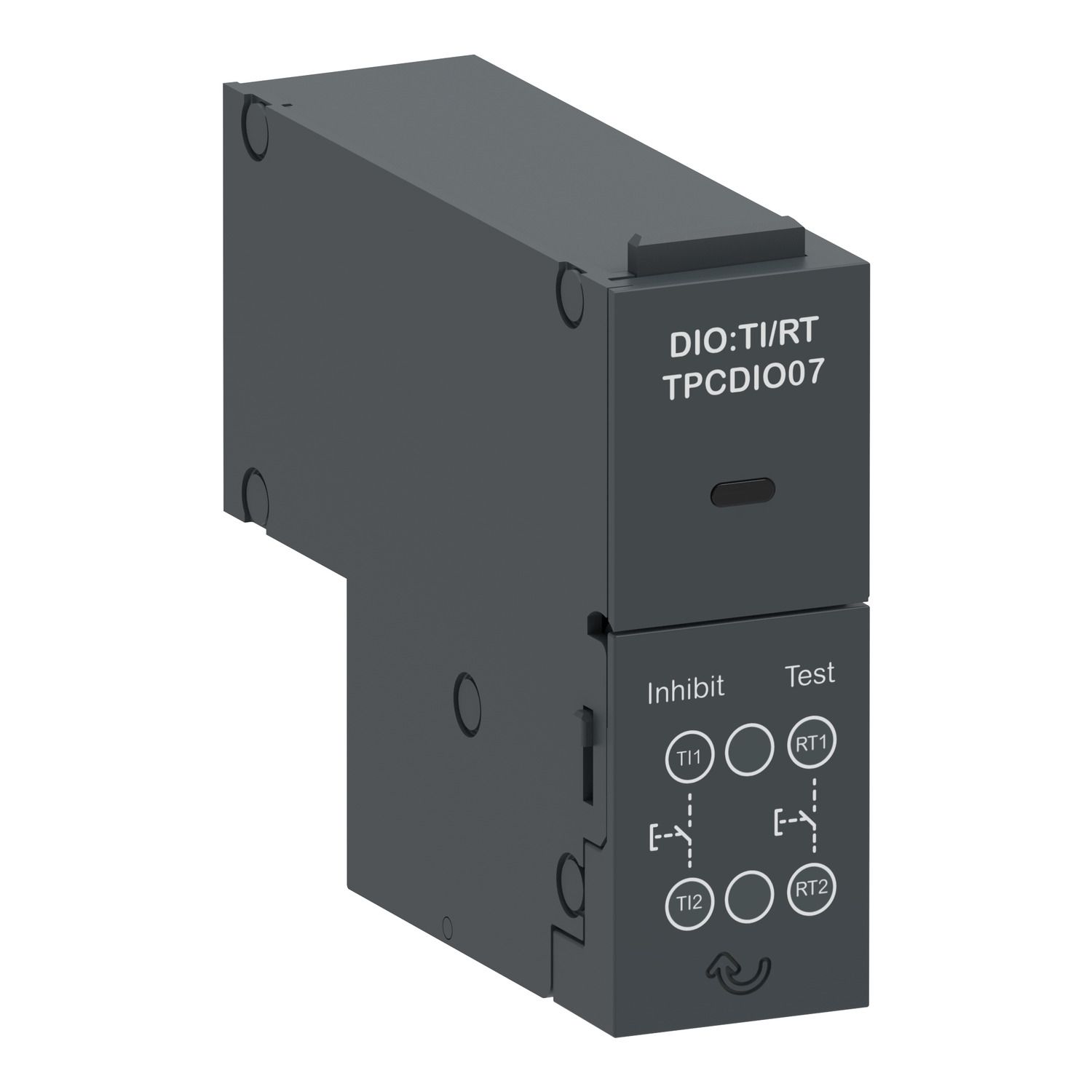

Picture of function module, TransferPacT, transfer inhibit and remote testing, input signal
SKU:

TPCDIO07

function module, TransferPacT, transfer inhibit and remote testing, input signal

Old price: $171.16 INC GST
$136.93 INC GST
Available for Shipping : 17-Dec-2025
function module, TransferPacT, transfer inhibit and remote testing, input signal
  • Transfer inhibit function
  • Remote testing for ATSE transfer process
  • Simple add-on module that can be installed any time
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 17-Dec-2025
Environmental Disclosure
User guide
Declaration of conformity
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
TPCDIO07 is input module as signalling accessory. This functional module has 2 dry contact input for transfer inhibit + Remote testing. The transfer inhibit signal can inhibit transfer. It also can be tailored by user to lock the controller or cooperation with different ATSE. The remote testing signal can start test procedure.

Products specifications

Attribute name Attribute value
Main
Device application signalling
Product or component type Dry contact, I/O module
Range of product TransferPacT
Complementary
[Ui] rated insulation voltage 30 V DC
Depth 69 mm
Width 20 mm
Mounting position left-bottom
Mounting mode plug-in
Accessory / separate part category signalling accessory
Net weight 40 g
Input current 5 mA
Auxiliary connection terminal screw clamp terminal 0.05-2.6 mm²
Tightening torque 0.6 N.m +/- 0.1 N.m
Auxiliary contact composition 2 NO
Height 56.5 mm
Signalling function remote testing, transfer inhibit
Environment
IP degree of protection IP20
Pollution degree 3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 10.600 cm
Package 1 Length 10.600 cm
Package 1 Weight 90.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.160 kg
