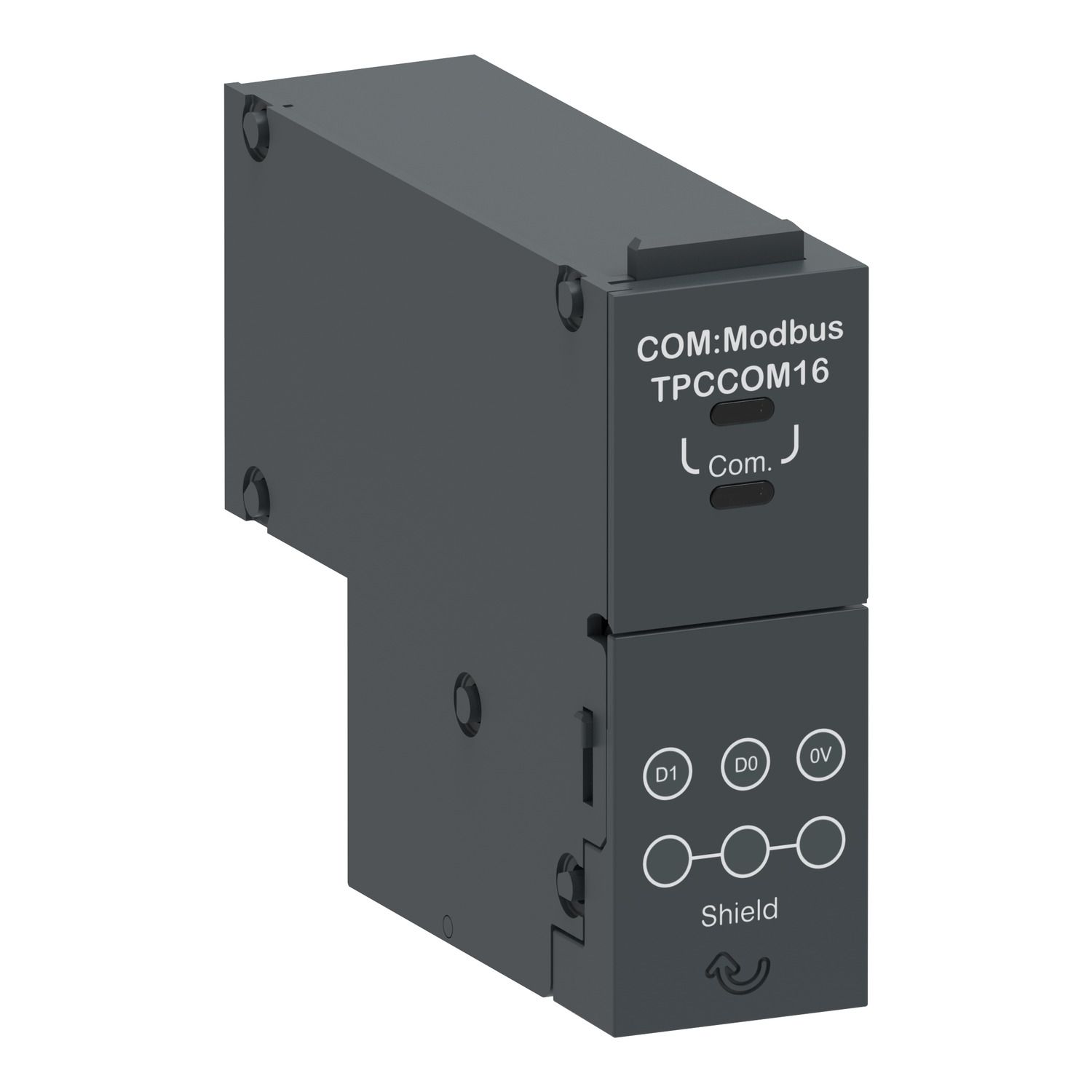

Picture of function module, TransferPacT, modbus RTU(serial Port), plug-in
SKU:

TPCCOM16

function module, TransferPacT, modbus RTU(serial Port), plug-in

Old price: $228.25 INC GST
$182.60 INC GST
Available for Shipping : 17-Dec-2025
function module, TransferPacT, modbus RTU(serial Port), plug-in
  • Communication
  • Simple add-on module that can be installed any time
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 17-Dec-2025
Environmental Disclosure
User guide
Declaration of conformity
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
TPCCOM16 is output module used for communication accessory. The physical interface is RS485 with communication port RJ45,which is supported by modbus. It can provided 2 indicators for communication status and installation. This module provide status, analog parameters, event logs, equipment settings & configurations over embedded webpage and open protocol. The designed terminals are screwed with shielded twisted pair to fix. Its appearance is 20mm(width)x56.5mm(height)x69mm(depth).

Products specifications

Attribute name Attribute value
Main
Device application communication
Bus type Modbus
Product or component type Modbus RS485 communication module
Range of product TransferPacT
Complementary
[Ui] rated insulation voltage 30 V DC
Depth 69 mm
Width 20 mm
Mounting position in square
Type of cable shielded twisted pair 1.5-1.5 mm²
Physical interface RS485
Mounting mode plug-in
Function available Modbus communication module
Accessory / separate part category communication accessories
Communication network type Modbus, Modbus RTU even parity, at 19200 bauds, Modbus, Modbus RTU even parity, at 9600 bauds, Modbus, Modbus RTU even parity, at 4800 bauds
Net weight 40 g
Localisation on device front face
Tightening torque 0.6 N.m +/- 0.1 N.m
Height 56.5 mm
Connections - terminals screw-clamp terminals
Addressing 0...248
Environment
IP degree of protection IP20
Pollution degree 3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.650 cm
Package 1 Width 6.900 cm
Package 1 Length 2.000 cm
Package 1 Weight 92.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 2.100 kg
