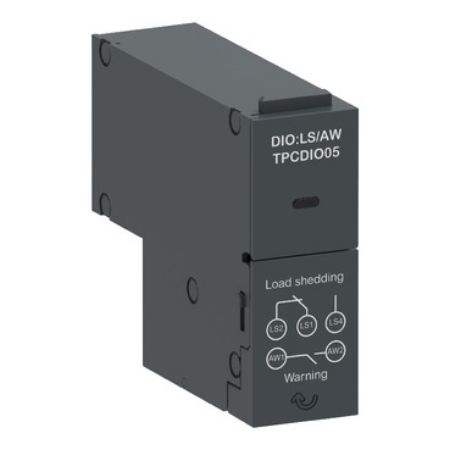

Picture of function module, TransferPacT, load shedding and availability warning, output signal
SKU:

TPCDIO05

function module, TransferPacT, load shedding and availability warning, output signal

Old price: $171.16 INC GST
$136.93 INC GST
Available for Shipping : 17-Dec-2025
function module, TransferPacT, load shedding and availability warning, output signal
  • Loadshedding for non-critical loads
  • Status output when both power off or ATSE not in AUTO mode
  • Simple add-on module that can be installed any time
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 17-Dec-2025
Environmental Disclosure
User guide
Instruction sheet
Circularity Profile
Declaration of conformity
Product Page Link
Product Data Sheet
TPCDIO05 is output module as signalling accessory. This functional module is auxiliary contact for load shedding and status output. The rated operational current(Ie) is 5A @250VAC/30VDC. The load shedding signal can shed some non-critical loads when ATSE is on Alternate source. A “status” dry contact will activate the signal when transfer switch is not in auto or power is lost on two sources. The signal shall disappear when transfer switch returns to Auto or power is available.

Products specifications

Attribute name Attribute value
Main
Device application signalling
Product or component type I/O module
Range of product TransferPacT
Complementary
[Ui] rated insulation voltage 300 V AC
Depth 69 mm
Width 20 mm
Mounting position left-bottom
[Ie] rated operational current 5 A at 30 V DC, 5 A at 250 V AC
Mounting mode plug-in
Accessory / separate part category signalling accessory
Net weight 40 g
Auxiliary connection terminal screw clamp terminal 0.05-2.6 mm²
Tightening torque 0.6 N.m +/- 0.1 N.m
Auxiliary contact composition 2 NO + 1 NC
Height 56.5 mm
Signalling function output status, load-shedding indication
Environment
IP degree of protection IP20
Pollution degree 3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.5 cm
Package 1 Width 10.5 cm
Package 1 Length 11 cm
Package 1 Weight 110 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 2.38 kg
