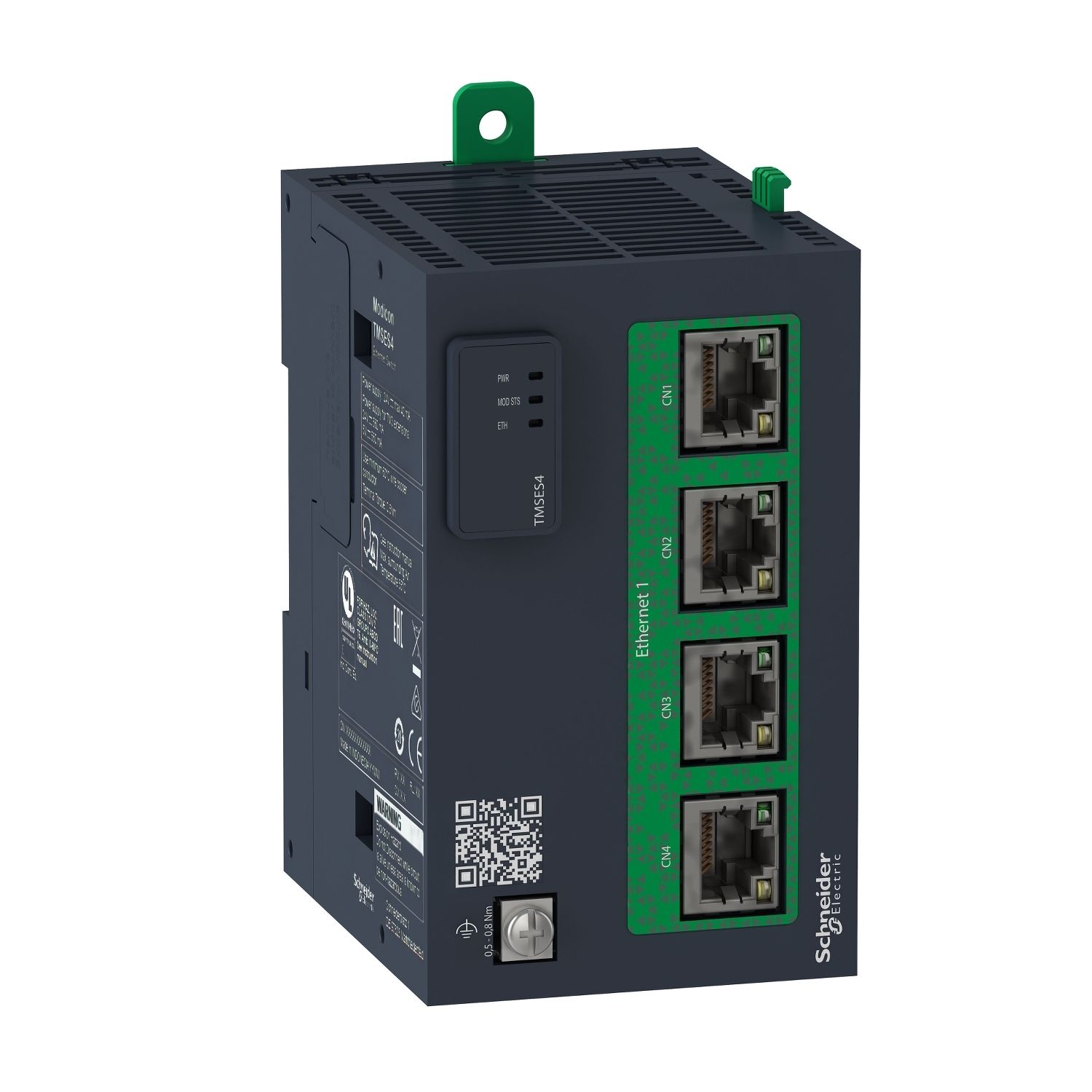

Picture of smart communication module, Modicon M262, Ethernet, 4 RJ45
SKU:

TMSES4

smart communication module, Modicon M262, Ethernet, 4 RJ45

Old price: $992.20 INC GST
$942.59 INC GST
Available for Shipping : 20-Jan-2026
Product Selector
smart communication module, Modicon M262, Ethernet, 4 RJ45
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 20-Jan-2026
User guide
Circularity Profile
Declaration of conformity
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
This smart communication module for Modicon M262 motion controllers is designed to provide 4 additional Ethernet accesses to the controllers. TMSES4 benefits from cloud apps, analytics, allows connection to other Schneider/third-party cloud platforms with MQTT/HTTP protocols, JSON, TLS encryption. It embeds 4 Ethernet based networks (Ethernet/IP adapter, DHCP client, IEC VAR ACCESS, Modbus TCP server, SNMP, FTP client/server, SQL client, Web server. Modicon M262 are logic/motion controllers with embedded cloud connectivity, figuring cybersecurity capabilities, supporting monitoring, analytics and predictive maintenance. TMS4 smart communication module figures self speed adaptation (10, 100, 1000mbps), Half or full duplex service, and autocrossing (MDIO). It is possible to connect up to three Ethernet smart communication modules on a motion controller, the power supply is embedded on the communication bus. It measures 60mm width, 88mm depth, and 100mm height. It weighs 0.403kg. This controller is designed for machinery requiring integrated IIoT connectivity or encrypted communication. Certified with CE, cULus HazLoc, RCM, EAC, Achilles L2, EU RO Mutual, Conform to UL 61010-1/-2-201, CSAC22.2 No. 61010-1/-2-201, ANSI/ISA 12-12-01, EN 61131-2. This smart communication module is compatible with Modicon M262 logic/motion controllers. It is configured by EcoStruxure Machine Expert software. TMSES4 smart communication module installs on 35mm DIN rail with Clip-on locks. Modicon M262 logic/motion controllers are the IIoT-ready controllers for performance machines. Modicon M262 logic/motion controllers embed Industrial Internet of Things (IIoT) protocols and encryption to provide direct cloud connectivity & digital services.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon M262
Product or component type smart communication module
Complementary
Web services web server
Communication service TLS, SNTP, MQTT, DNS client, OPC UA server, web server, send and receive email from the controller based on TCP/UDP library, SQL client, FTP client/server, SNMP client/server, Modbus TCP server, IEC VAR ACCESS, DHCP client, Ethernet/IP adapter
Height 100 mm
Services autocrossing (MDIO), half or full duplex, self speed adaptation (10-100-1000 Mbits)
Depth 88.3 mm
Number of module per PLC 1 maximum per motion controller, 1 maximum per logic controller
Width 60 mm
Range compatibility Modicon M262
Local signalling 1 LED for ETH, 1 LED for MOD STS, 1 LED (green) for PWR
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Communication port protocol Ethernet
Current consumption 200 mA at 24 V
Port Ethernet 10/100/1000 BASE-TX - 4 port(s) RJ45
Environment
Resistance to fast transients 1 kV (transistor output) conforming to IEC 61000-4-4, 1 kV (input) conforming to IEC 61000-4-4, 1 kV (serial link) conforming to IEC 61000-4-4, 1 kV (Ethernet line) conforming to IEC 61000-4-4, 2 kV (power lines) conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV on air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2
IP degree of protection IP20
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage -40-85 °C
Pollution degree 2
Standards -, IEC 61131-2, ANSI/ISA 12-12-01, CSA C22.2 No 213, CSA C22.2 No 61010-2-201,  CSA C22.2 No 61010-1, UL 61010-2-201, UL 61010-1
Ambient air temperature for operation -20-50 °C vertical installation, -20-60 °C horizontal installation
Resistance to electromagnetic fields 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Resistance to conducted disturbances 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-4
Electromagnetic emission radiated emissions - test level: 47 dBµV/m A at 230-1000 MHz conforming to IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to IEC 55011, radiated emissions - test level: 40 dBµV/m A at 30-230 kHz conforming to IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to IEC 55011
Operating altitude 0...2000 m
Vibration resistance 1 gn at 8.4-200 Hz on panel mounting, 3.5 mm at 2-8.4 Hz on panel mounting, 1 gn at 8.4-200 Hz on symmetrical rail, 3.5 mm at 2-8.4 Hz on symmetrical rail
Shock resistance 15 gn for 11 ms
Storage altitude 0-3000 m
Product certifications Achilles, EAC (pending), RCM, cULus, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.4 cm
Package 1 Width 11.8 cm
Package 1 Length 16.9 cm
Package 1 Weight 522.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.9 kg
