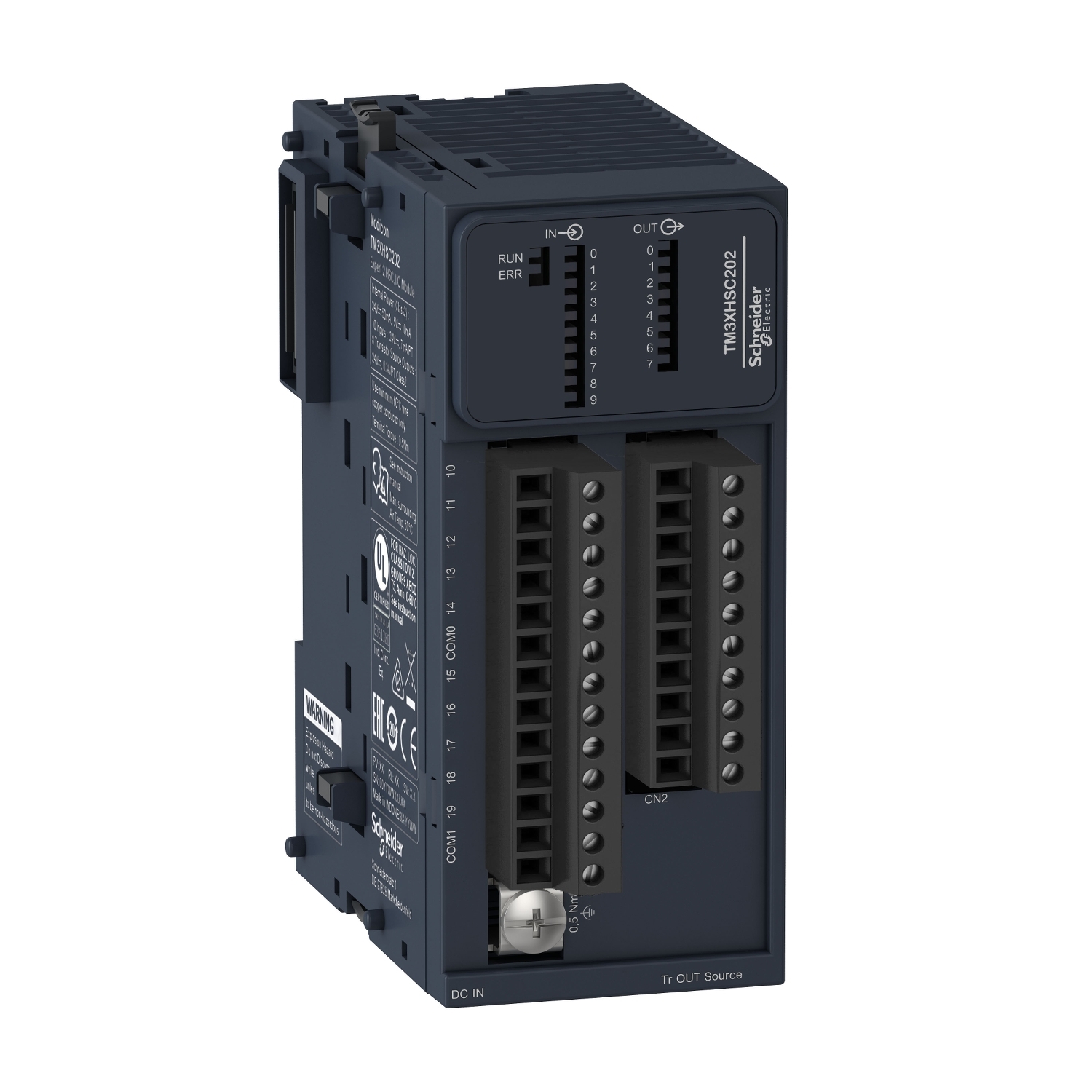

Picture of counter module, Modicon TM3, high speed, 2 channels HSC, 10 inputs, 8 outputs, screw
SKU:

TM3XHSC202

counter module, Modicon TM3, high speed, 2 channels HSC, 10 inputs, 8 outputs, screw

$678.81 INC GST
Available for Shipping : 13-Jan-2026
Product Selector
counter module, Modicon TM3, high speed, 2 channels HSC, 10 inputs, 8 outputs, screw
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 13-Jan-2026
Circularity Profile
Catalog
User guide
Declaration of conformity
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of Modicon TM3, a range of expansion I/O modules for Modicon plcs. This counter module provides 10 fast inputs and 8 fast outputs. It is a high-speed counter with reflex output management, no event management. It is used to count the pulses generated by a sensor or to process signals from an incremental encoder. Its counting frequency is 200kHz. It works via a 24VDC external power supply. It is furnished with a removable screw terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply. It is an IP20-rated product. Its dimensions are 39mm wide, 85mm deep and 90mm high. It weighs 0.150kg It is designed to accept high-speed pulse-type input signals for counting and to provide high-speed pulse-type output signals. This product is certified by CSA, cULus, IACS E10, RCM, CE, UKCA and EAC. This module is compatible with Modicon M262 motion/logic controller and is configurable with EcoStruxure machine expert software. It is delivered in 1 package (PCE type). It is mounted on a symmetrical DIN rail. Or with a specific kit for plate or panel mounting. The specially developed Modicon TM3 I/O system enables flexible and customizable expansion of the I/O terminals in all the controllers. From design and development to commissioning and maintenance, EcoStruxure Machine Expert is a complete machine-building solution.

Products specifications

Attribute name Attribute value
Main
Number of output channels 8
Discrete I/O number 18
Number of input channels 10
Range of product Modicon TM3
[Us] rated supply voltage 24 V DC by external supply (- 15...20 %)
Range compatibility Modicon M262
Product or component type module hight speed counting
Complementary
Electrical circuit type latch input, standard input
Discrete input logic sink or source
Event management Thresholds < 10 µs, No event
Discrete output current 300 mA for fast output (Q0...Q7)
Counting frequency 200 kHz
Output voltage 24 V DC for transistor output
Discrete output logic source
Height 90 mm
Reset automatic reset
Depth 85 mm
Width 39 mm
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Counting mode Max 8 simple counting function, 2 main expert function (main counting function, frequency meter, period meter)
Local signalling 1 LED for ERR, 1 LED for RUN, 1 LED for I/O
Output protection type against overload and short-circuits
Current consumption 50 mA at 24 V DC, 100 mA at 5 V DC
Output voltage limits 30 V DC
Net weight 150 g
Services period meter - functions available: Edge to Edge, Edge to Opposite, HSC main dual phase - functions available: Modulo/Free-large, HSC main single phase - functions available: One shot/Modulo/Event counting, HSC simple - functions available: One shot/Modulo
Discrete input voltage 24 V DC
Environment
Resistance to fast transients 1 kV for transistor output conforming to EN/IEC 61000-4-4, 1 kV for input conforming to EN/IEC 61000-4-4, 1 kV for serial link conforming to EN/IEC 61000-4-4, 1 kV for Ethernet line conforming to EN/IEC 61000-4-4, 2 kV for alimentation cable conforming to EN/IEC 61000-4-4
Resistance to electrostatic discharge 4 kV on contact conforming to EN/IEC 61000-4-2, 8 kV in air conforming to EN/IEC 61000-4-2
IP degree of protection IP20 with protective cover in place
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage -40-85 °C
Pollution degree 2
Standards EN/IEC 61010-2-201, UL 508, EN/IEC 61131-2:2007, CSA C22.2 No 213, UL 1604, ANSI/ISA 12-12-01, CSA C22.2 No 142
Ambient air temperature for operation -20-50 °C vertical installation, -20-60 °C horizontal installation
Resistance to electromagnetic fields 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
Resistance to conducted disturbances 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-4
Electromagnetic emission radiated emissions - test level: 47 dBµV/m class A at 230-1000 MHz conforming to EN/IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP at 150-1500 kHz conforming to EN/IEC 55011, radiated emissions - test level: 40 dBµV/m class A at 30-230 MHz conforming to EN/IEC 55011, conducted emissions - test level: 63 dBμV/m QP at 1.5-30 MHz conforming to EN/IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP at 10-150 kHz conforming to EN/IEC 55011
Operating altitude 0...2000 m
Vibration resistance 1 gn at 8.4-200 Hz on panel, 3.5 mm at 2-8.4 Hz on panel, 1 gn at 8.4-200 Hz on DIN rail, 3.5 mm at 2-8.4 Hz on DIN rail
Shock resistance 15 gn for 11 ms
Storage altitude 0-3000 m
Product certifications EAC, UKCA, CE, RCM, IACS E10, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.200 cm
Package 1 Width 10.400 cm
Package 1 Length 12.400 cm
Package 1 Weight 220.000 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.700 kg
