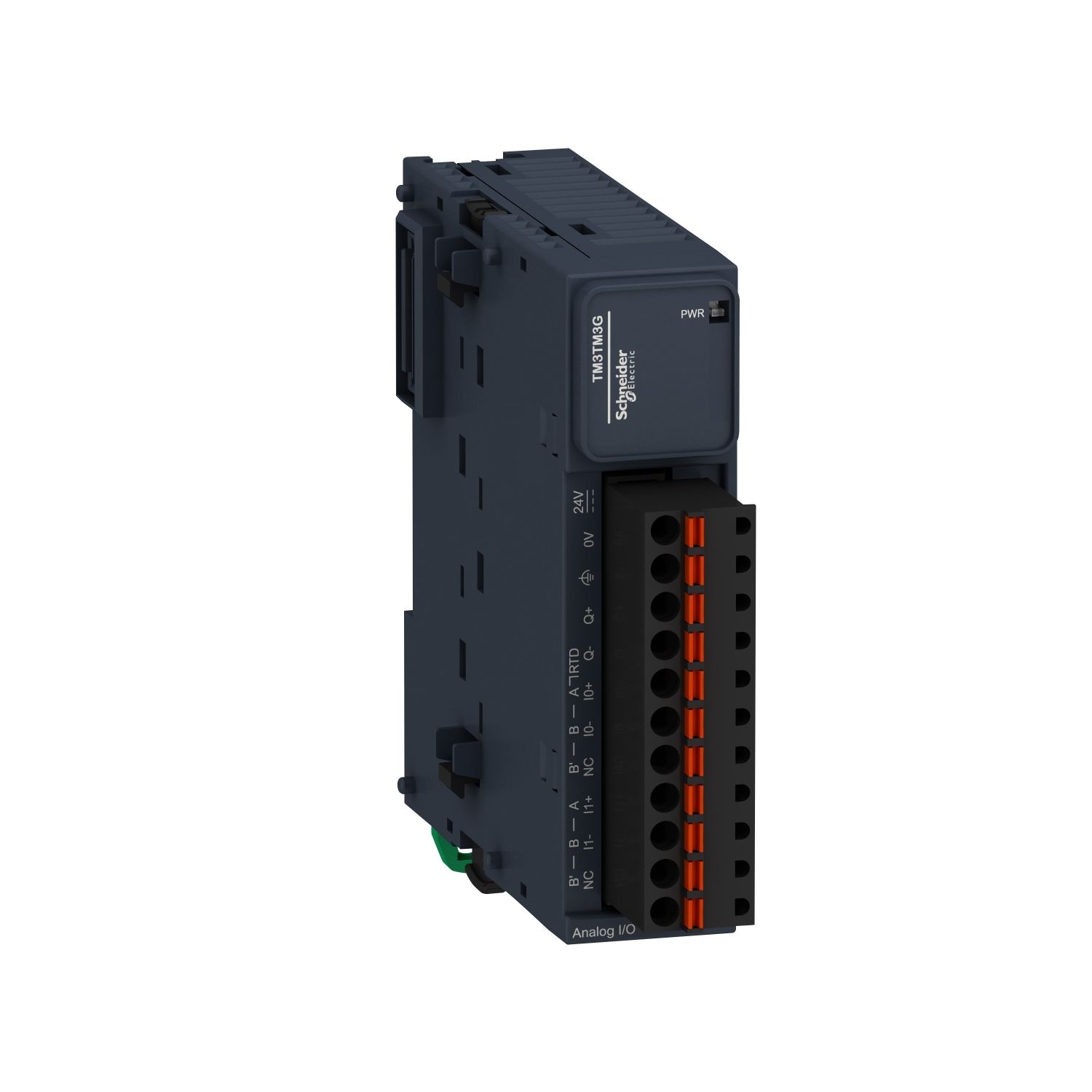

Picture of Modicon TM3, Input/output analog module, 2 or temperature inputs, 1 output (spring) 24 VDC
SKU:

TM3TM3G

Modicon TM3, Input/output analog module, 2 or temperature inputs, 1 output (spring) 24 VDC

$713.30 INC GST
Available for Shipping : 25-Mar-2026
Product Selector
Modicon TM3, Input/output analog module, 2 or temperature inputs, 1 output (spring) 24 VDC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 25-Mar-2026
Declaration of conformity
Circularity Profile
Environmental Disclosure
Catalog
User guide
CAD
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue I/O module provides 2 inputs, 1 output with 16bit, 15bit + sign input resolution. It is an I/O module with a rated supply voltage of 24V DC, a current consumption of 60mA, 55mA at 5V DC via bus connector, 55mA, 80mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC, output and supply at 1500V AC and output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with 5.08mm pitch adjustment for inputs, outputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.1kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Products specifications

Attribute name Attribute value
Main
Analogue output number 1
Range of product Modicon TM3
Analogue input type Pt 1000 temperature probe - 200...600 °C, Pt 100 temperature probe - 200...850 °C, Ni 100/Ni 1000 temperature probe - 60...180 °C,  thermocouple 0...2315 °C with thermocouple C,  thermocouple - 200...800 °C with thermocouple E,  thermocouple - 200...1300 °C with thermocouple N,  thermocouple - 200...400 °C with thermocouple T,  thermocouple 0...1820 °C with thermocouple B,  thermocouple 0...1760 °C with thermocouple S,  thermocouple 0...1760 °C with thermocouple R,  thermocouple - 200...1300 °C with thermocouple K,  thermocouple - 200...1000 °C with thermocouple J, voltage - 10...10 V, voltage 0...10 V, current 0...20 mA, current 4...20 mA
Range compatibility Modicon M262, Modicon M251, Modicon M241, Modicon M221
Analogue input number 2
Product or component type input/output analog module
Analogue output type voltage: - 10...10 V, voltage: 0...10 V, current: 0...20 mA, current: 4...20 mA
Complementary
Insulation between output and internal logic at 500 V AC, between output and supply at 1500 V AC, between input and internal logic at 500 V AC, between input and supply at 1500 V AC
Surge withstand 0.5 kV I/O differential mode conforming to IEC 61000-4-5, 1 kV I/O common mode conforming to IEC 61000-4-5, 0.5 kV power supply differential mode conforming to IEC 61000-4-5, 1 kV power supply common mode conforming to IEC 61000-4-5
Load impedance ohmic 300 Ohm current, 1 kOhm voltage
Supply voltage limits 20.4-28.8 V
Temperature drift +/- 0.006 %FS/°C
Conversion time 10 ms + 10 ms per channel + 1 controller cycle time for analogue input voltage/current, 100 ms + 100 ms per channel + 1 controller cycle time for analogue input temperature probe, 100 ms + 100 ms per channel + 1 controller cycle time for analogue input thermocouple
Marking CE
Permissible continuous overload 40 mA, analogue input type: current, 13 V, analogue input type: voltage
Type of cable twisted shielded pairs cable <30 m for input/output circuit
Load type resistive
Height 90 mm
Electrical connection 11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm adjustment for inputs, outputs and supply
Repeat accuracy +/- 0.4 %FS for output, +/-0.5 %FS for input
Sampling duration 100 ms, analogue input type: temperature probe, 100 ms, analogue input type: thermocouple, 100 ms, analogue input type: voltage/current, 10 ms, analogue input type: voltage/current
[Us] rated supply voltage 24 V DC
Depth 70 mm
Width 23.6 mm
Cross talk <= 1 LSB
Local signalling 1 LED (green) for PWR
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Output ripple 20 mV
Stabilisation time 1 ms
Analogue output resolution 12 bits
Current consumption 80 mA at 24 V DC via external supply full load, 60 mA at 5 V DC via bus connector full load, 55 mA at 5 V DC via bus connector no load, 55 mA at 24 V DC via external supply no load
Absolute accuracy error +/- 0.1 % of full scale at 25 °C for analogue output voltage/current, +/- 0.1 % of full scale at 25 °C for thermocouple N 0...1300 °C, +/- 0.1 % of full scale at 25 °C for thermocouple T 0...400 °C, +/- 0.1 % of full scale at 25 °C for thermocouple E 0...800 °C, +/- 0.1 % of full scale at 25 °C for thermocouple J 0...1000 °C, +/- 0.1 % of full scale at 25 °C for thermocouple K 0...1300 °C, +/- 0.1 % of full scale at 25 °C for thermocouple B 300...1820 °C, +/- 0.1 % of full scale at 25 °C for thermocouple R, S 200...1760 °C, +/- 0.1 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe, +/- 0.1 % of full scale at 25 °C for thermocouple C 0...2315 °C, +/- 0.1 % of full scale at 25 °C for analogue input voltage/current, +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C, +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C, +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C, +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C, +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C, +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C
Net weight 0.1 kg
Analogue input resolution 15 bits + sign, 16 bits
LSB value 3.91 µA 4...20 mA current, 4.88 µA 0...20 mA current, 4.88 mV - 10...10 V voltage, 2.44 mV 0...10 V voltage, 0.1 °Cthermocouple, 0.1 °Ctemperature probe, 0.244 µA 4...20 mAcurrent, 0.30 µA 0...20 mAcurrent, 0.30 mV - 10...10 Vvoltage, 0.15 mV 0...10 Vvoltage
Non-linearity +/- 0.1 %FS, analogue input type: analog input, +/- 0.01 %FS, analogue output type: analog output
Input impedance >= 1 MOhm temperature probe, >= 1 MOhm thermocouple, >= 1 MOhm voltage, <= 50 Ohm current
Environment
Resistance to fast transients 1 kV (I/O) conforming to IEC 61000-4-4
IP degree of protection IP20
Resistance to electrostatic discharge 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage -25-70 °C
Resistance to magnetic fields 30 A/m conforming to IEC 61000-4-8
Pollution degree 2
Ambient air temperature for operation -10-35 °C vertical installation, -10-55 °C horizontal installation
Immunity to microbreaks 10 ms
Resistance to electromagnetic fields 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Resistance to conducted disturbances 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Electromagnetic emission radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011
Operating altitude 0...2000 m
Vibration resistance 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on DIN rail
Shock resistance 15 gn for 11 ms
Storage altitude 0-3000 m
Standards IEC 61131-2
Product certifications cULus HazLoc, cULus, EAC, RCM, UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.62 cm
Package 1 Width 10.92 cm
Package 1 Length 13.46 cm
Package 1 Weight 200 g
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 2.3 kg
Unit Type of Package 3 3
Number of Units in Package 3 144
Package 3 Height 75 cm
Package 3 Width 40 cm
Package 3 Length 80 cm
Package 3 Weight 27.88 kg
