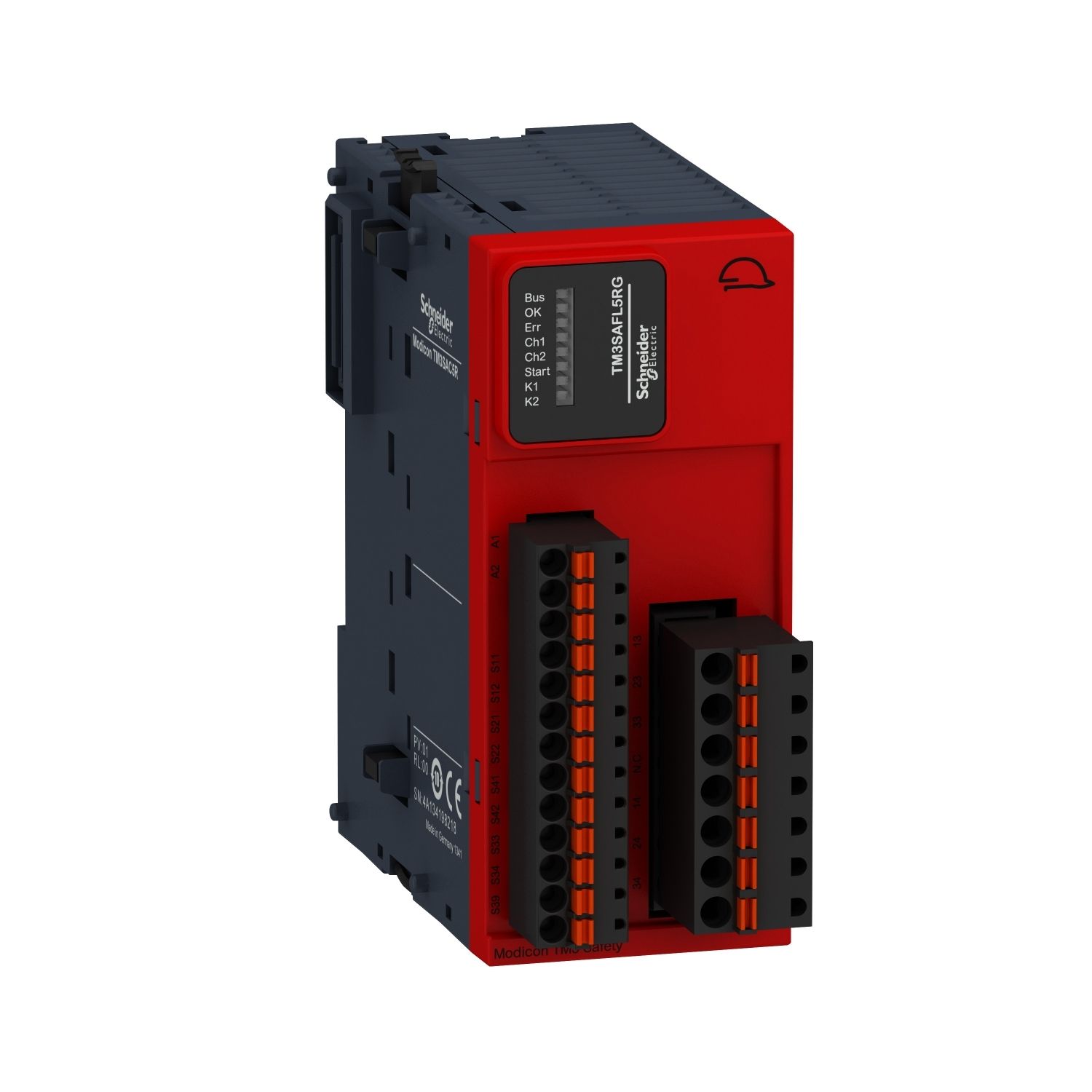

Picture of Modicon TM3, Safety module, 2 Function, Cat 3 PL d/SIL CL2 (spring) 24 VDC
SKU:

TM3SAFL5RG

Modicon TM3, Safety module, 2 Function, Cat 3 PL d/SIL CL2 (spring) 24 VDC

$756.25 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
Modicon TM3, Safety module, 2 Function, Cat 3 PL d/SIL CL2 (spring) 24 VDC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Instruction sheet
Catalog
User guide
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The safety module provides 3 normally opened contacts and unlimited synchronisation time between inputs. It is a safety module with a rated supply voltage of 24V DC, an external supply current consumption of 100mA at 24V DC on power supply and a power consumption 0.2W at 5V DC, 3.6W at 24V DC. The main functions of this module are emergency stop, movable guard, multiple emergency stop, proximity sensor and electro-sensitive protection equipment (ESPE) monitoring. It is furnished with spring terminal for electrical connection. It is an IP20 rated product. Its dimensions are 43.7mm (Width) x 73mm (Depth) x 94mm (Height). It weighs 0.19kg. It is suitable for emergency stop, switch and safety light curtain monitoring applications. This product is certified by RCM, CSA, UL, TÜV, ANSI Haz Loc Class 1 Division 2, EAC. It supports wall mount using attached fasteners. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Products specifications

Attribute name Attribute value
Main
Device short name TM3SAFL
Function of module monitoring of electro-sensitive protection equipment (ESPE) PNP/PNP, proximity sensor monitoring PNP/PNP, multiple emergency stop monitoring 2-channel wiring, monitoring of a movable guard, monitoring of a movable guard with 2 switches and automatic start, emergency stop monitoring 2-channel wiring
Safety module application for emergency stop, switch and safety light curtain monitoring
Range of product Modicon TM3 Safety
Safety level can reach SIL 2 conforming to IEC 61508: 2010, can reach SILCL 2 conforming to IEC 62061: 2005, can reach PL d/category 3 conforming to ISO 13849-2: 2012, can reach PL d/category 3 conforming to ISO 13849-1: 2008
Product or component type safety module
Complementary
Maximum response time on input open 40 ms
Input protection type internal, electronic
Safety reliability data type = A conforming to IEC 61508-1, HFT = 1 conforming to IEC 61508-1, SFF = 95 % conforming to IEC 61508-1, MTTFd = 85 years conforming to ISO 13849-1 60 operations/hour DC-13 24 V DC, <1 A, MTTFd = 500 years conforming to ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A, PFHd = 30E-9 1/h conforming to IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A, PFHd = 5E-9 1/h conforming to IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A, DC = 95 % conforming to ISO 13849-1
Maximum switching voltage 24 V utilisation category DC-13 (relay instantaneous opening), 230 V utilisation category AC-15 at 50 Hz (relay instantaneous opening)
[Us] rated supply voltage 24 V - 15...20 % DC
Associated fuse rating 6 A fast blow for relay output conforming to IEC 60947-5-1, 4 A gG or gL for relay output conforming to IEC 60947-5-1
Marking EFUP 10, TÜV, CE, EAC, CSA, UL, RCM
Electromagnetic compatibility radiated emission - test level: 47 dBµV/m class A (24 V) conforming to IEC 55011, radiated emission - test level: 40 dBµV/m class A (24 V) conforming to IEC 55011, conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to IEC 61000-4-4, magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2
Product compatibility safety light curtains conforming to EN/IEC 61496-1 (type 4)
Connections - terminals captive spring terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals, captive spring terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals, captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminals, captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals, captive spring terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34, captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34, captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34, captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34, captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34
Output thermal current 6 A per relay for relay output
Standards EN 50581:2012, IEC 61010-1:2010, IEC 60204-1:2009/A1, IEC 60204-1:2005, IEC 61131-2:2007, IEC 60947-5-1:2010, IEC 61508:2010, IEC 62061:2005, ISO 13849-2:2012, ISO 13849-1:2008
Height 94 mm
Breaking capacity 4 A 24 V 50 ms DC-13 relay output, 3600 VA inrush AC-15 B300 relay output, 360 VA holding AC-15 B300 relay output
Maximum cable distance between devices 30 m
Synchronisation time between inputs unlimited
Depth 73 mm
Number of safety circuits 3 NO for relay instantaneous opening
Width 43.7 mm
Electrical connection spring terminal
Local signalling 8 LEDs (green/red) for user
Mounting support wall mount using attached fasteners, top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715
[Ui] rated insulation voltage 300 V (pollution degree 2) conforming to IEC 60647-5-1
Output type relay instantaneous opening, 3 NO circuit(s), potential free
Current consumption 100 mA at 24 V DC external supply
Net weight 0.19 kg
[Uimp] rated impulse withstand voltage 4 kV overvoltage category III conforming to IEC 60647-5-1
[Ith] conventional free air thermal current 18 A
Minimum output current 10 mA for relay output
[Uc] control circuit voltage 24 V DC
Power consumption in W 3.6 W at 24 V DC, 0.2 W at 5 V DC
Output voltage 10 V relay output
Product certifications TÜV, CSA Haz Loc Class 1 Division 2 (pending), ANSI Haz Loc Class 1 Division 2 (pending), EAC, UL 61010-2-201, RCM, CSA 61010-2-201 (pending)
Environment
Resistance to fast transients 2 kV for I/O lines conforming to IEC 61000-4-4, 3 kV for power lines (DC) (DC) conforming to IEC 61000-4-4
Mechanical robustness bumps 6 ms 300 shocks (25 gn) conforming to IEC 60068-2-27
Resistance to electrostatic discharge 6 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
Surge withstand 1 kV power lines (DC) common mode conforming to IEC 61000-4-5 DC, 1 kV power lines (DC) differential mode conforming to IEC 61000-4-5 DC
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage -25-70 °C
Resistance to magnetic fields 30 A/m 50/60 Hz conforming to IEC 61000-4-8
IP degree of protection IP20 (terminals) conforming to IEC 60529
Pollution degree 2
Ambient air temperature for operation -10-55 °C horizontal installation
Resistance to electromagnetic fields 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Resistance to conducted disturbances 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Electromagnetic emission radiated emissions - test level: 57 dBµV/m class A ( 24 V DC) at 230-1000 Hz conforming to IEC 61131-3, radiated emissions - test level: 50 dBµV/m class A ( 24 V DC) at 30-230 Hz conforming to IEC 61131-3
Operating altitude 0...2000 m
Vibration resistance +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Storage altitude 0-3000 m
Standards IEC 60947-5-1, IEC 60947-1, ISO 13850, EN 1088/ISO 14119, IEC 60204-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 10.6 cm
Package 1 Length 12.5 cm
Package 1 Weight 262.0 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.272 kg
