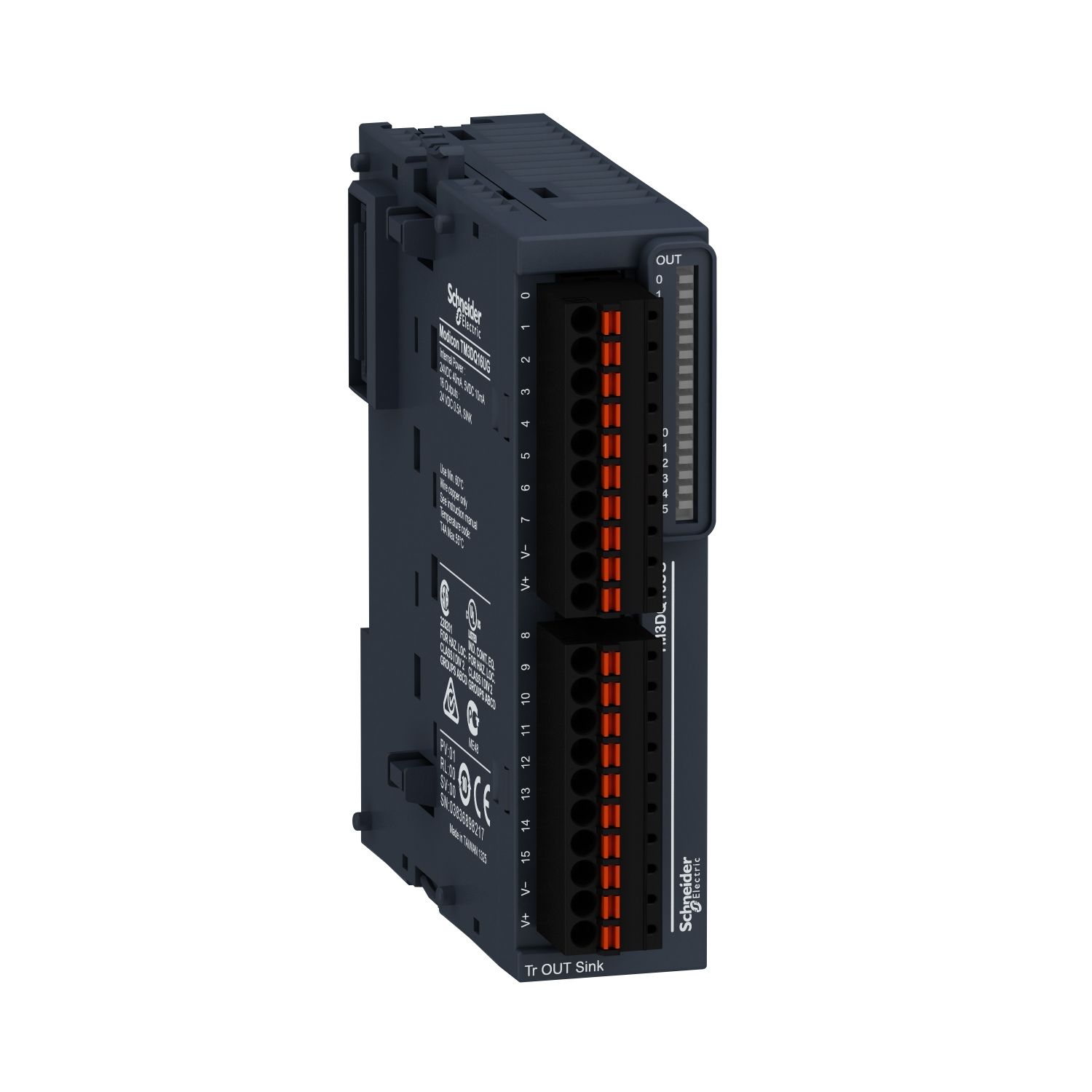

Picture of Modicon TM3, Discrete output module, 16 outputs transistor NPN (spring)
SKU:

TM3DQ16UG

Modicon TM3, Discrete output module, 16 outputs transistor NPN (spring)

$422.29 INC GST
Available for Shipping : 14-Apr-2026
Product Selector
Modicon TM3, Discrete output module, 16 outputs transistor NPN (spring)
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Apr-2026
Declaration of conformity
User guide
Circularity Profile
Environmental Disclosure
Catalog
CAD
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of Modicon TM3, a range of expansion I/O modules for Modicon plcs. This discrete output module provides 16 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24VDC and a current consumption of 20mA at 24VDC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic AC, non-insulated between outputs. It works via a 24VDC external power supply. It is furnished with removable screw terminal for electrical connection with pitch 3.81mm adjustment for outputs. It is an IP20-rated product. Its dimensions are 27.4mm wide, 84.6mm deep and 90mm high. It weighs 0.105kg. It is designed to operate or control a device connected to an output module and decisions sent by the PLC. This product is certified by CULus, CE, UKCA, RCM, EAC, and cULus HazLoc. This module is compatible with Modicon M262/M241/M251/M221 logic controllers and is configurable with EcoStruxure machine expert software. It is delivered in 1 package (PCE type). It is mounted on a symmetrical DIN rail. Or with a specific kit for plate or panel mounting. The specially developed Modicon TM3 I/O system enables flexible and customizable expansion of the I/O terminals in all the controllers. From design and development to commissioning and maintenance, EcoStruxure Machine Expert is a complete machine-building solution.

Products specifications

Attribute name Attribute value
Main
Discrete output voltage 24 V DC for transistor output
Discrete output current 300 mA for transistor output
Discrete output number 16
Discrete output logic negative logic (sink)
Range of product Modicon TM3
Discrete output type transistor
Range compatibility Modicon M262, Modicon M221, Modicon M251, Modicon M241
Product or component type discrete output module
Complementary
Insulation non-insulated between outputs, between output and internal logic at 500 V AC
Discrete I/O number 16
Marking CE
Height 90 mm
Maximum cable distance between devices unshielded cable: <30 m for transistor output
Electrical connection 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for outputs, 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs
Maximum leakage current 0.1 mA for transistor output
Depth 81.3 mm
Width 21.4 mm
Local signalling 1 LED per channel (green) for output status
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Current consumption 20 mA at 24 V DC via bus connector (at state on), 15 mA at 5 V DC via bus connector (at state on), 0 mA at 24 V DC via bus connector (at state off), 5 mA at 5 V DC via bus connector (at state off)
Maximum voltage drop <0.4 V
Net weight 0.76 kg
Response time 450 µs (turn-off), 450 µs (turn-on)
Environment
Resistance to fast transients 1 kV for I/O conforming to IEC 61000-4-4
Resistance to electrostatic discharge 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
IP degree of protection IP20 with protective cover in place
Surge withstand 1 kV I/O common mode conforming to IEC 61000-4-5 DC
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage -25-70 °C
Resistance to magnetic fields 30 A/m 50/60 Hz conforming to IEC 61000-4-8
Pollution degree 2
Ambient air temperature for operation -10-55 °C horizontal installation, -10-35 °C vertical installation
Resistance to electromagnetic fields 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Resistance to conducted disturbances 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Electromagnetic emission radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011
Operating altitude 0...2000 m
Vibration resistance 3 gn at 8.4-150 Hz on panel, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on DIN rail
Shock resistance 15 gn for 11 ms
Storage altitude 0-3000 m
Standards IEC 61131-2
Product certifications cULus HazLoc, EAC, RCM, UKCA, CE, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 10.500 cm
Package 1 Length 12.500 cm
Package 1 Weight 200.000 g
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.240 kg
Unit Type of Package 3 3
Number of Units in Package 3 288
Package 3 Height 80.000 cm
Package 3 Width 105.000 cm
Package 3 Length 125.000 cm
Package 3 Weight 85.480 kg
