Picture of bus coupler module, Modicon TM3, distributed IO, optimized, Serial Line interface, IP20
SKU:

TM3BCSL

bus coupler module, Modicon TM3, distributed IO, optimized, Serial Line interface, IP20

Old price: $418.55 INC GST
$397.62 INC GST
Available for Shipping : 13-Jan-2026
Product Selector
bus coupler module, Modicon TM3, distributed IO, optimized, Serial Line interface, IP20
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 13-Jan-2026
Environmental Disclosure
Catalog
User guide
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet

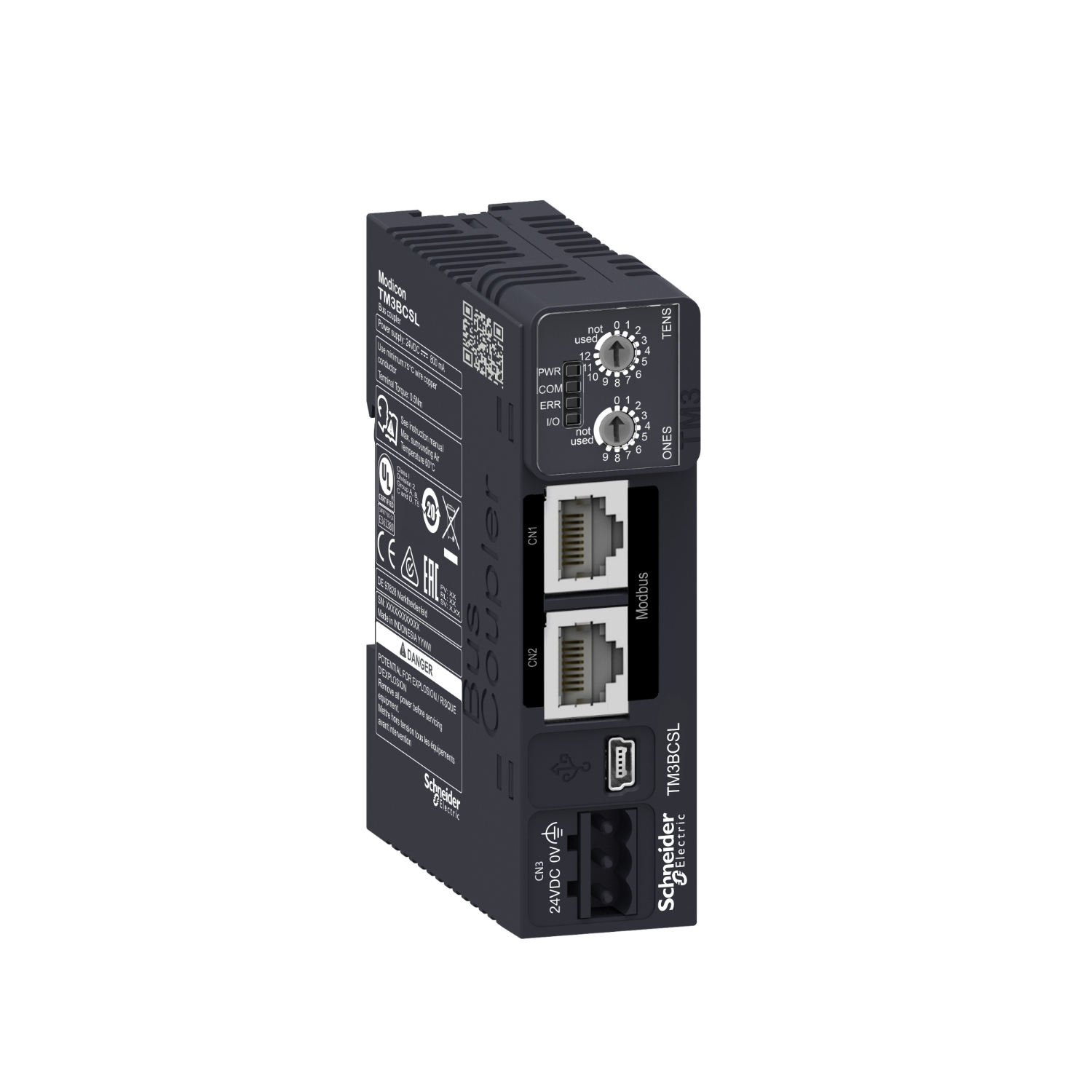

This product is part of Modicon TM3, a range of expansion I/O modules for Modicon plcs. This is a bus coupler for the Modbus serial link. It has 2 isolated RJ45s to connect to the Serial line bus. It allows plc to manage the distribution of up to 448 digital I/O and 112 analog I/O through a Modbus serial line. The data exchange rate is from 1.2kbits/s up to 112.2 kbits/s. It works via a 24VDC external power supply. It is an IP20-rated product. It measures 27mm wide 96.5mm high and 70mm deep. It weighs 0.100kg. It is a device designed to manage serial line communication when using expansion modules with a controller in a distributed architecture. It is certified by ce, cULus, EAC, RCM, UKCA, and EU RO Mutual Recognition. This module is compatible with Modicon M262/M241/M251/M221 logic controllers and is configurable with EcoStruxure machine expert software. It is delivered in 1 package (PCE type). It is mounted on a symmetrical DIN rail. Or with a specific kit for plate or panel mounting. The specially developed Modicon TM3 I/O system enables flexible and customizable expansion of the I/O terminals in all the controllers. From design and development to commissioning and maintenance, EcoStruxure Machine Expert is a complete machine-building solution.

Products specifications

Attribute name Attribute value
Main
Product compatibility motion controller, logic controller
Range of product Modicon TM3
Product specific application bus coupler module
Product or component type I/O distributed module
Complementary
Topology daisy chain
Fixing mode by screws (mounting plate), by clipping locks (rail)
Exchange mode half duplex
Communication service Modbus slave device profile
Height 96.5 mm
Depth 70 mm
Transmission rate 1.2...115.2 kbit/s
Width 27 mm
Local signalling 1 LED green/red for I/O status, 1 LED green/red for ERR (Error), 1 LED green/red for COM (Run), 1 LED green/red for PWR (System Status)
Communication port protocol Modbus serial
Current consumption 0.8 A at 24 V DC internal supply maximum 7 expansion modules
Net weight 0.10 kg
Web services web server, USB
Connector type USB device port Mini-B, RJ45 2 serial link daisy chain isolated
Standards UL/CSA 61010-2-201, UL/CSA 61010-1, IEC 61131-2
Communication network type Modbus
Product certifications EU-RO MR, UKCA, RCM, EAC, cULus, CE
Environment
Relative humidity 10-95 % non-condensing
Ambient air temperature for storage -25-70 °C
IP degree of protection IP20 conforming to IEC/EN 61010-2-201
Pollution degree 2
Ambient air temperature for operation -10-60 °C
Operating altitude 0...2000 m
Vibration resistance 3M4 on 35 x 15 mm symmetrical DIN rail
Storage altitude 0-3000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.6 cm
Package 1 Width 10.7 cm
Package 1 Length 12.7 cm
Package 1 Weight 167.0 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.68 kg
