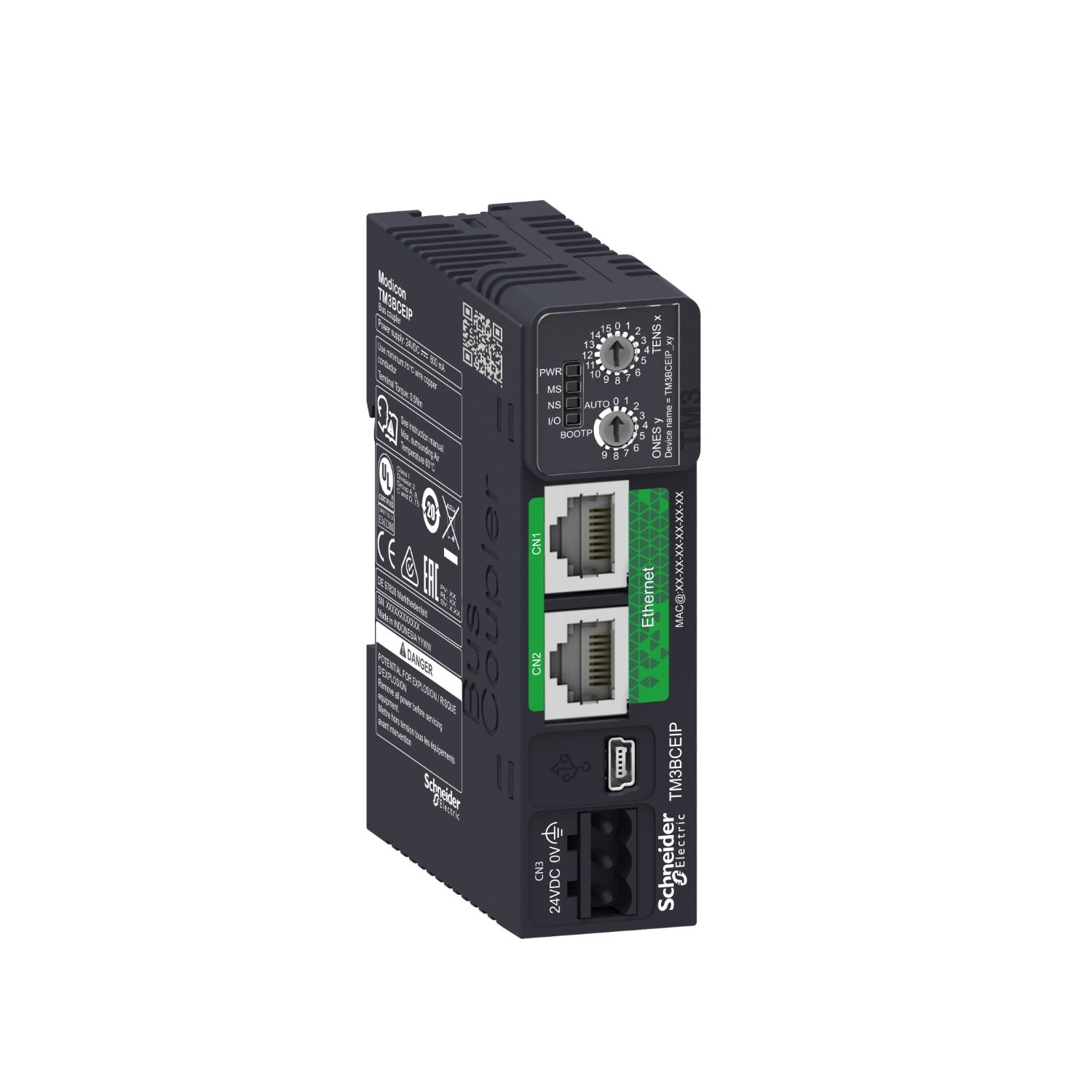

Picture of distributed IO module, Modicon TM3, IP20 optimized bus coupler, Ethernet interface
SKU:

TM3BCEIP

distributed IO module, Modicon TM3, IP20 optimized bus coupler, Ethernet interface

Old price: $478.50 INC GST
$454.58 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
distributed IO module, Modicon TM3, IP20 optimized bus coupler, Ethernet interface
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Instruction sheet
Environmental Disclosure
Declaration of conformity
Catalog
User guide
Circularity Profile
Product Page Link
Product Data Sheet
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The I/O distributed module supports daisy chain topology. It offers half duplex, full duplex and auto negotiation exchange mode with 10/100Mbps data transmission rate. This processor provides web services like web server, ethernet and web server, USB. It features 1 LED for PWR (system status), 1 LED for MS (module status), 1 LED for NS (network status) and 1 LED for I/O status signaling. It is an IP20 rated product. Its dimensions are 27mm (width) x 70mm (depth) x 96.5mm (height). It weighs 0.10kg. It is suitable for bus coupler module. It is compatible with logic controller and motion controller. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. Boost the performance of controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241, M251 and M262 logic controllers.

Products specifications

Attribute name Attribute value
Main
Product compatibility motion controller, logic controller
Range of product Modicon TM3
Product specific application bus coupler module
Product or component type I/O distributed module
Complementary
Topology daisy chain
Fixing mode by screws (mounting plate), by clipping locks (rail)
Exchange mode half duplex, full duplex, autonegotiation
Communication service FTP server, address conflict detection, BOOTP, DHCP client, web server, SNMP, RSTP (Ring topology support), Modbus TCP/IP server, Ethernet/IP adapter
Height 96.5 mm
Depth 70 mm
Transmission rate 10/100 Mbit/s
Width 27 mm
Port Ethernet 10/100BASE-T
Local signalling 1 LED green/red for I/O status, 1 LED green/red for NS (Network Status), 1 LED green/red for MS (Module Status), 1 LED green/red for PWR (System Status)
Communication port protocol Ethernet IP/Modbus TCP
Current consumption 0.8 A at 24 V DC internal supply maximum 7 expansion modules
Net weight 0.10 kg
Web services web server, USB, web server, Ethernet
Connector type USB device port Mini-B, RJ45 2 Ethernet daisy chain isolated
Standards UL/CSA 61010-2-201, UL/CSA 61010-1, IEC 61131-2
Communication network type IPv4 (internet protocol), Modbus TCP, Ethernet IP
Product certifications EU-RO MR, UKCA, RCM, EAC, cULus, CE
Environment
Relative humidity 10-95 % non-condensing
Ambient air temperature for storage -25-70 °C
IP degree of protection IP20 conforming to IEC/EN 61010-2-201
Pollution degree 2
Ambient air temperature for operation -10-60 °C
Operating altitude 0...2000 m
Vibration resistance 3M4 on 35 x 15 mm symmetrical DIN rail
Storage altitude 0-3000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.400 cm
Package 1 Width 10.400 cm
Package 1 Length 12.500 cm
Package 1 Weight 178.000 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.840 kg
