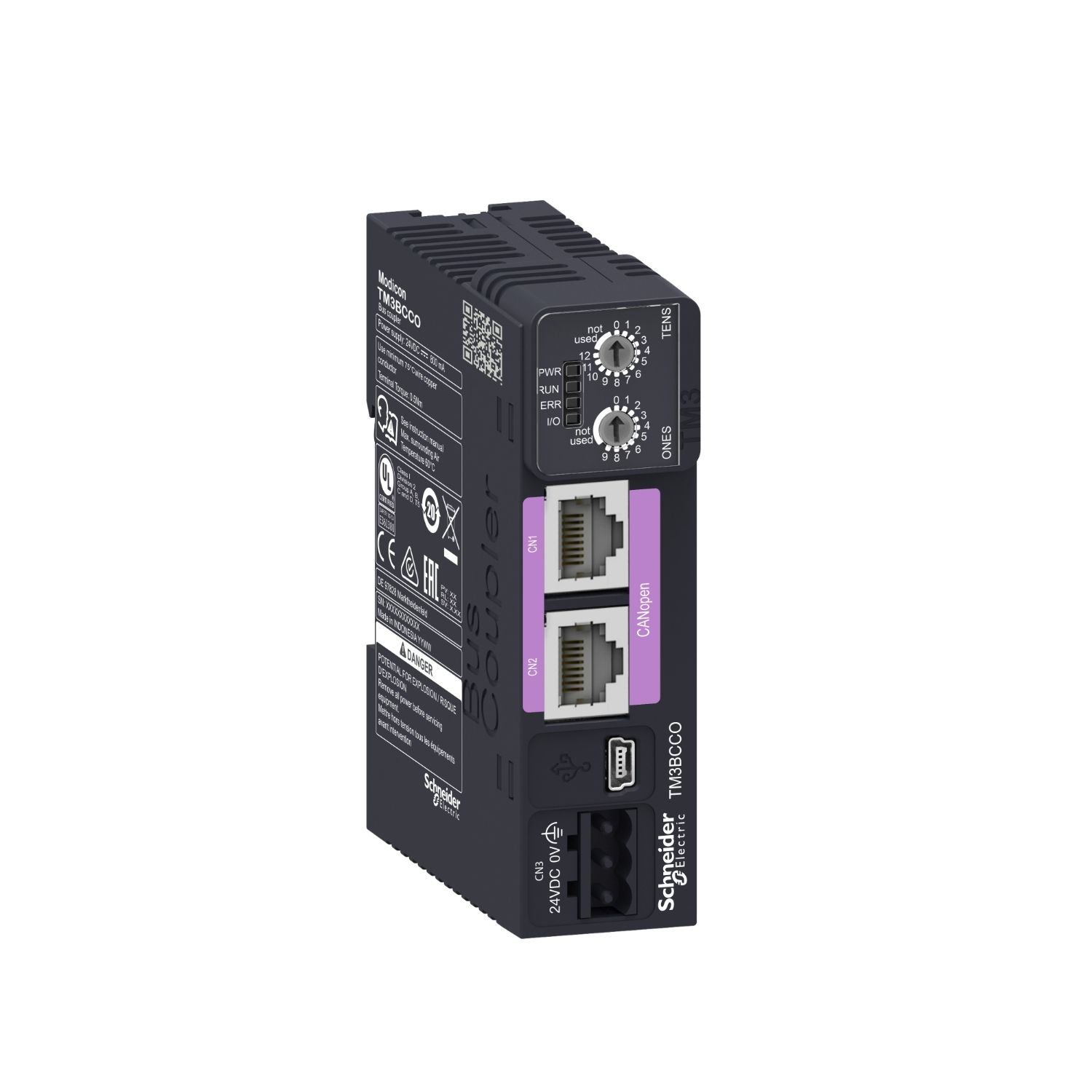

Picture of bus coupler module, Modicon TM3, distributed IO, optimized, CANopen interface, IP20
SKU:

TM3BCCO

bus coupler module, Modicon TM3, distributed IO, optimized, CANopen interface, IP20

Old price: $443.85 INC GST
$421.66 INC GST
Available for Shipping : 19-Jan-2026
Product Selector
bus coupler module, Modicon TM3, distributed IO, optimized, CANopen interface, IP20
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Jan-2026
User guide
Environmental Disclosure
Instruction sheet
Catalog
Circularity Profile
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Product compatibility motion controller, logic controller
Range of product Modicon TM3
Product specific application bus coupler module
Product or component type I/O distributed module
Complementary
Topology daisy chain
Fixing mode by screws (mounting plate), by clipping locks (rail)
Communication service CANopen slave device profile
Height 96.5 mm
Depth 70 mm
Transmission rate 20 kbit/s...1 Mbit/s
Width 27 mm
Local signalling 1 LED green/red for I/O status, 1 LED green/red for ERR (Error), 1 LED green/red for RUN (Run), 1 LED green/red for PWR (System Status)
Communication port protocol CANopen
Current consumption 0.8 A at 24 V DC internal supply maximum 7 expansion modules
Net weight 0.10 kg
Web services web server, USB
Connector type USB device port Mini-B, RJ45 2 CANopen daisy chain isolated
Standards UL/CSA 61010-2-201, UL/CSA 61010-1, IEC 61131-2
Communication network type CANopen
Product certifications EU-RO MR, UKCA, RCM, EAC, cULus, CE
Environment
Relative humidity 10-95 % non-condensing
Ambient air temperature for storage -25-70 °C
IP degree of protection IP20 conforming to IEC/EN 61010-2-201
Pollution degree 2
Ambient air temperature for operation -10-60 °C
Operating altitude 0...2000 m
Vibration resistance 3M4 on 35 x 15 mm symmetrical DIN rail
Storage altitude 0-3000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 10.500 cm
Package 1 Length 12.500 cm
Package 1 Weight 168.000 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.748 kg
