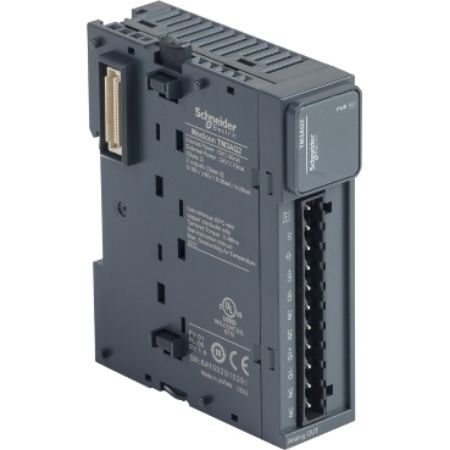

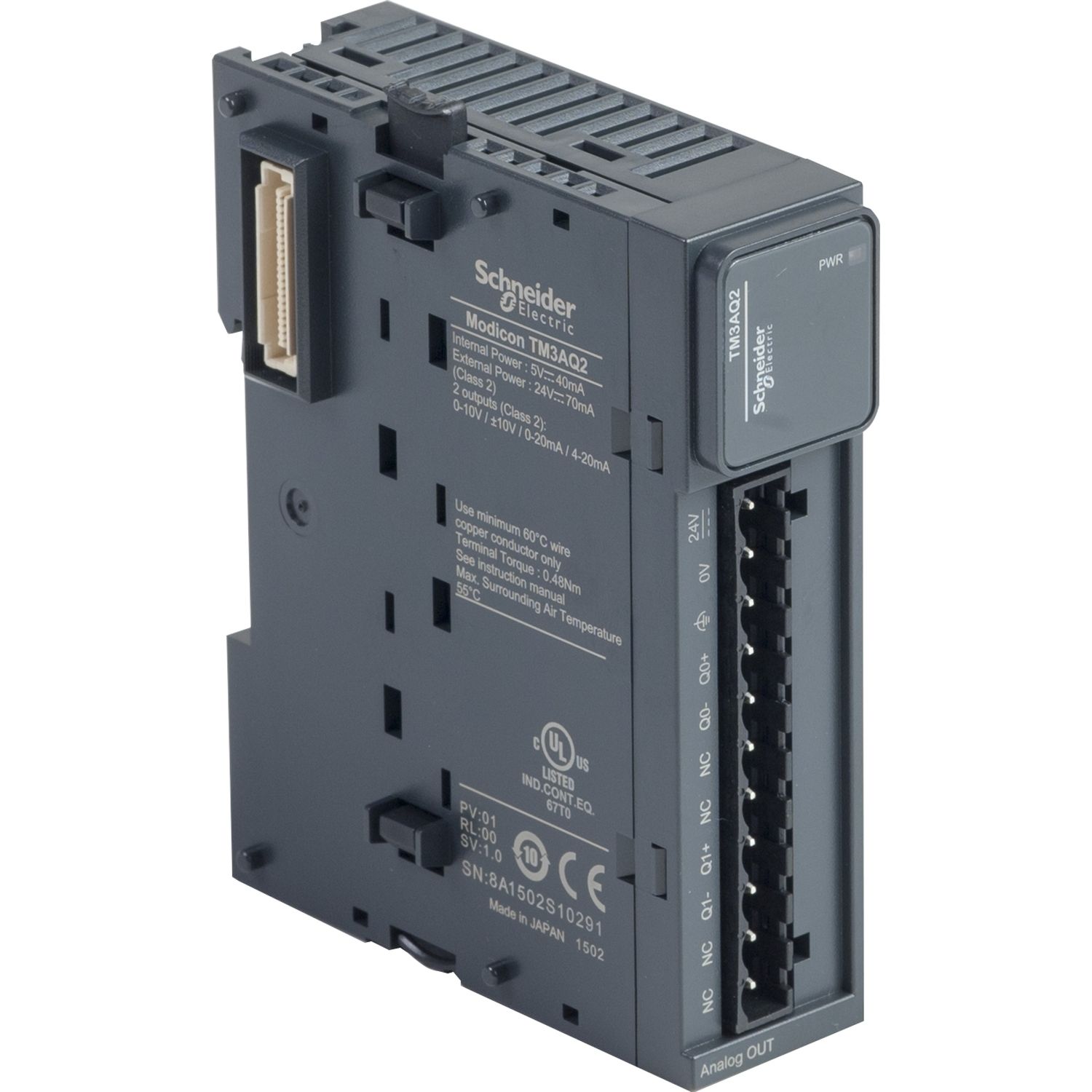

Picture of Modicon TM3, Analog output module, 2 outputs (screw) 24 VDC
SKU:

TM3AQ2

Modicon TM3, Analog output module, 2 outputs (screw) 24 VDC

$503.96 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
Modicon TM3, Analog output module, 2 outputs (screw) 24 VDC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Declaration of conformity
Environmental Disclosure
Circularity Profile
Catalog
CAD
User guide
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue output module provides 2 outputs with 11bit + sign and 12bit resolution. It is an output module with a rated supply voltage of 24V DC and a current consumption of 70mA at 24V DC via external supply full load. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for outputs. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Products specifications

Attribute name Attribute value
Main
Analogue output number 2
Range of product Modicon TM3
Range compatibility Modicon M262, Modicon M251, Modicon M241, Modicon M221
Product or component type analog output module
Analogue output type voltage: - 10...10 V, voltage: 0...10 V, current: 0...20 mA, current: 4...20 mA
Complementary
Insulation between output and internal logic at 500 V AC, between output and supply at 1500 V AC
Surge withstand 1 kV output common mode conforming to IEC 61000-4-5, 0.5 kV power supply differential mode conforming to IEC 61000-4-5, 1 kV power supply common mode conforming to IEC 61000-4-5
Load impedance ohmic 300 Ohm current, 1 kOhm voltage
Supply voltage limits 20.4-28.8 V
Temperature drift +/- 0.006 %FS/°C
Conversion time 1 ms + 1 ms per channel + 1 controller cycle time
Marking CE
Type of cable twisted shielded pairs cable <30 m for output circuit
Load type resistive
Height 90 mm
Electrical connection 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs and supply
Repeat accuracy +/- 0.4 %FS
[Us] rated supply voltage 24 V DC
Depth 70 mm
Width 23.6 mm
Cross talk <= 1 LSB
Local signalling 1 LED (green) for PWR
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Output ripple 20 mV
Stabilisation time 1 ms
Analogue output resolution 12 bits, 11 bits + sign
Current consumption 70 mA at 24 V DC via external supply full load, 30 mA at 24 V DC via external supply no load, 35 mA at 5 V DC via bus connector no load, 40 mA at 5 V DC via bus connector full load
Absolute accuracy error +/- 1 % of full scale, +/- 0.1 % of full scale at 25 °C
Net weight 0.115 kg
LSB value 3.91 µA 4...20 mAcurrent, 4.88 µA 0...20 mAcurrent, 4.88 mV - 10...10 Vvoltage, 2.44 mV 0...10 Vvoltage
Non-linearity +/- 0.01 %FS
Environment
Resistance to fast transients 1 kV (I/O) conforming to IEC 61000-4-4
IP degree of protection IP20
Resistance to electrostatic discharge 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage -25-70 °C
Resistance to magnetic fields 30 A/m conforming to IEC 61000-4-8
Pollution degree 2
Ambient air temperature for operation -10-35 °C vertical installation, -10-55 °C horizontal installation
Immunity to microbreaks 10 ms
Resistance to electromagnetic fields 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Resistance to conducted disturbances 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Electromagnetic emission radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011
Operating altitude 0...2000 m
Vibration resistance 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on DIN rail
Shock resistance 15 gn for 11 ms
Storage altitude 0-3000 m
Standards IEC 61131-2
Product certifications cULus HazLoc, cULus, EAC, RCM, UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.566 cm
Package 1 Width 10.629 cm
Package 1 Length 12.698 cm
Package 1 Weight 220.0 g
Unit Type of Package 2 2
Number of Units in Package 2 42
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 10.32 kg
Unit Type of Package 3 3
Number of Units in Package 3 336
Package 3 Height 75 cm
Package 3 Width 120 cm
Package 3 Length 80 cm
Package 3 Weight 94 kg
