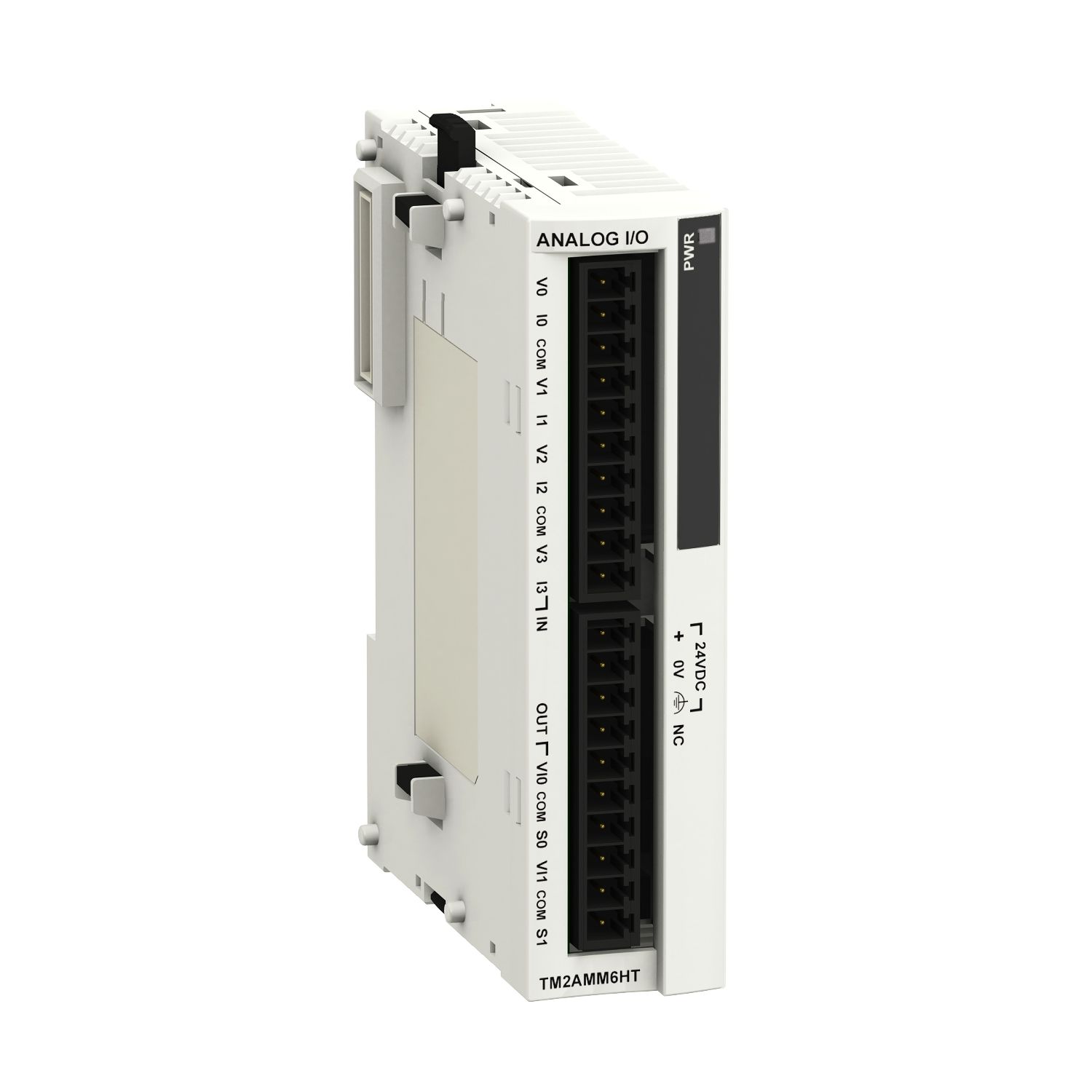

Picture of I/O expansion module, Modicon M238 logic controller, Twido, 4 inputs voltage/current high level, 2 output, wear part
SKU:

TM2AMM6HT

I/O expansion module, Modicon M238 logic controller, Twido, 4 inputs voltage/current high level, 2 output, wear part

$1,551.00 INC GST
Available for Shipping : 26-Jan-2026
Product Selector
I/O expansion module, Modicon M238 logic controller, Twido, 4 inputs voltage/current high level, 2 output, wear part
  • Wear part I/O module Modicon M238 logic controller for Twido
  • Original Schneider Electric wear part
  • High quality construction
  • Higher efficiency
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 26-Jan-2026
Circularity Profile
Instruction sheet
User guide
Catalog
CAD
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Analogue input type voltage 0...10 V non differential,  current 4...20 mA non differential
Cross talk <= 2 LSB
Analogue output number 2
Analogue input number 4
Input level high level
Product or component type I/O expansion module
Analogue output type voltage: 0...10 V, current: 4...20 mA
Range of product Modicon M238 logic controller
Complementary
Repeat accuracy +/-0.5 %FS for input, +/- 1 %FS for output
Sampling duration 16 ms
[Us] rated supply voltage 24 V DC
Conversion time 20 ms + 1 controller cycle time
Range compatibility Advantys OTB, Twido
Temperature coefficient +/-0.015 %FS/°C, analogue input type: 4...20 mA, analogue output type: 4...20 mA, +/-0.015 %FS/°C, analogue input type: 0...10 V, analogue output type: 0...10 V, +/- 0.02 %FS/°C, analogue output type: 4...20 mA, +/- 0.02 %FS/°C, analogue output type: 0...10 V
Output ripple <= 1 LSB
Load impedance ohmic <= 300 Ohm current, >= 2000 Ohm voltage
Stabilisation time 20 ms
Supply voltage limits 19.2-30 V
Analogue output resolution 12 bits
Type of cable shielded cable
Net weight 0.085 kg
Acquisition period 16 ms per channel + 1 controller cycle time
Analogue input resolution 12 bits
Current consumption 80 mA at 24 V DC external, 60 mA at 5 V DC internal
Permissible continuous overload 13 V, analogue input type: voltage, 40 mA, analogue input type: current
Supply external supply
Total error +/-1 %FS, analogue input type: voltage, analogue output type: voltage, +/-1 %FS, analogue input type: current, analogue output type: current, +/- 1.5 %FS, analogue output type: voltage, +/- 1.5 %FS, analogue output type: current
Non-linearity +/- 0.5 %FS, analogue output type: voltage, +/- 0.5 %FS, analogue output type: current, +/- 0.4 %FS, analogue input type: voltage, +/- 0.4 %FS, analogue input type: current
Load type resistive
Measurement error +/- 0.9 % of full scale 4...20 mA at 25 °C, +/- 0.9 % of full scale 0...10 V at 25 °C, +/- 0.5 % of full scale 4...20 mA at 25 °C, +/- 0.5 % of full scale 0...10 V at 25 °C
Input impedance <= 250 MOhm current, >= 1 Ohm voltage
Output error +/- 1 %FS
Insulation between channel and internal logic photocoupler
Electrical connection 1 removable screw terminal block
LSB value 4 µA current current, 2.5 mV voltage voltage
Environment
Dielectric strength 800 V between the I/O and internal logic, 800 V between I/O channel, 1500 V between the I/O and the external supply circuit
Depth 70 mm
Width 23.5 mm
Height 90 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.446 cm
Package 1 Width 10.434 cm
Package 1 Length 12.419 cm
Package 1 Weight 170.5 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.107 kg
