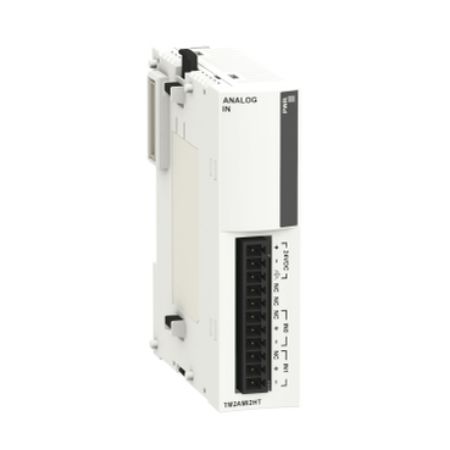

Picture of I/O expansion module, Modicon M238 logic controller, Twido, 2 inputs voltage/current high level, non differential, wear part
SKU:

TM2AMI2HT

I/O expansion module, Modicon M238 logic controller, Twido, 2 inputs voltage/current high level, non differential, wear part

$1,313.82 INC GST
Available for Shipping : 26-Jan-2026
Product Selector
I/O expansion module, Modicon M238 logic controller, Twido, 2 inputs voltage/current high level, non differential, wear part
  • Wear part I/O module Modicon M238 logic controller for Twido
  • Original Schneider Electric wear part
  • High quality construction
  • Higher efficiency
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 26-Jan-2026
Circularity Profile
Instruction sheet
Catalog
CAD
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Analogue input type voltage 0...10 V non differential,  current 4...20 mA non differential
Cross talk <= 2 LSB
Analogue input number 2
Input level high level
Product or component type I/O expansion module
Range of product Modicon M238 logic controller
Complementary
Repeat accuracy +/-0.5 %FS
Sampling duration 10 ms
[Us] rated supply voltage 24 V DC
Range compatibility Advantys OTB, Twido
Temperature coefficient +/-0.006 %FS/°C
Supply voltage limits 20.4-28.8 V
Type of cable shielded cable
Net weight 0.085 kg
Acquisition period 10 ms per channel + 1 controller cycle time
Analogue input resolution 12 bits
Current consumption 40 mA at 24 V DC external, 50 mA at 5 V DC internal
Permissible continuous overload 13 V, analogue input type: voltage, 40 mA, analogue input type: current
Supply external supply
Total error +/-1 %FS
Non-linearity +/- 0.2 %FS
Measurement error +/- 0.2 % of full scale at 25 °C
Input impedance 10 Ohm current, >= 1 MOhm voltage
Insulation between channel and internal logic photocoupler
Electrical connection 1 removable screw terminal block
LSB value 4.8 µA current current, 2.5 mV voltage voltage
Environment
Dielectric strength 500 V between the I/O and internal logic, 500 V between the I/O and the external supply circuit
Depth 70 mm
Width 23.5 mm
Height 90 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 10.5 cm
Package 1 Length 13.0 cm
Package 1 Weight 197.0 g
