SKU:

TM171PFE03

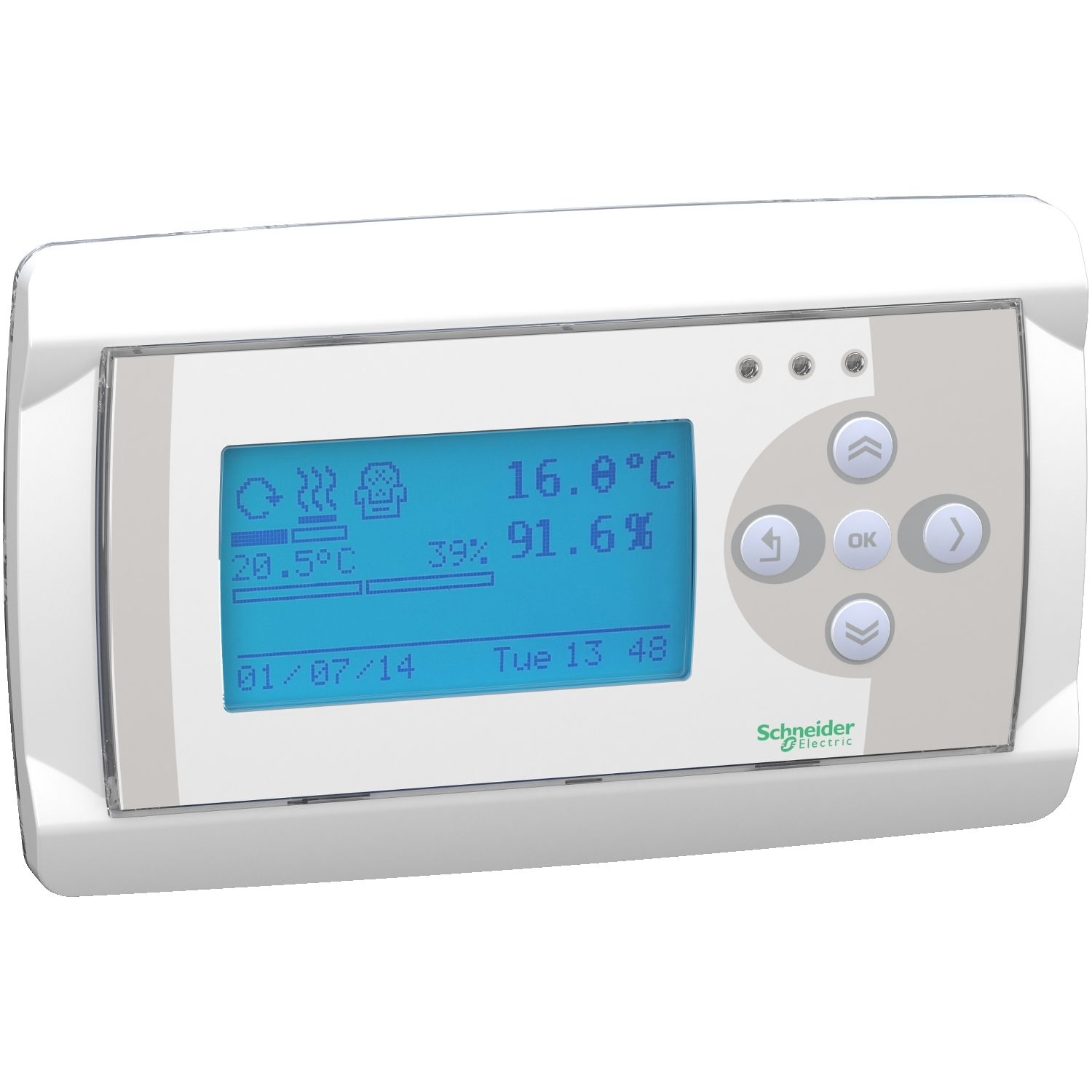

Modicon M171 Performance Flush 3 I/Os, Modbus SL/TCP & BACnet MSTP and IP

$696.96 INC GST

Qty:

Available for Shipping : 27-Jan-2026

Modicon M171 Performance Flush 3 I/Os, Modbus SL/TCP & BACnet MSTP and IP

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 27-Jan-2026

Brochure

User guide

Catalog

Instruction sheet

Product Page Link

Product Data Sheet

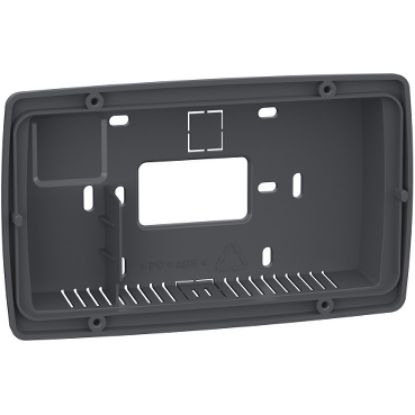

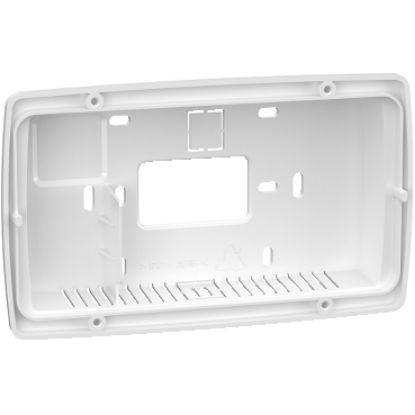

This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 3 configurable analog inputs, and a display. This programmable controller embeds 3 communication ports for RS485 link,CAN expansion bus, Modbus TCP/BACnet IP. It is a programmable logic controller for HVAC and Pumping applications, equiped with a LCD display. Inputs are analog (1x built-in NTC, 1x NTC or digital input, and 1x 4-20mA or 0-10V). It embeds one RS485 port, one CAN expansion bus port, and one RJ45 port for Modbus TCP, BACnet IP, MS/TP. It measure 72mm wide, 60.5mm deep, 110mm high, and weighs 0.190kg. This controller is designed for HVAC solutions. It is certified by CE, cURus, CSA, RCM and EAC. It is compatible with a plastic white/grey wall support. It is sold in a 1-piece package. It is designed for flush mounting with a wall bracket accessory. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute name	Attribute value
Main
Number of inputs/outputs	3
Range of product	Modicon M171/M172
Product specific application	HVAC and pumping solution
Analogue input number	1 analog input NTC, 1 analog input NTC (on board)
Product or component type	programmable controllers
Variant	programmable
Complementary
Input/output number	3 analog input(s)
[Us] rated supply voltage	48 V DC, 24 V ±10% AC
Display type	without display
Height	110 mm
Depth	60.5 mm
Overvoltage category	II
Analogue input type	NTC temperature probe - 40...150 °C - resolution: 0.1 °C, voltage 0...10 V, NTC temperature probe - 50...110 °C - resolution: 0.1 °C (extended), current 4...20 mA, voltage 0...5 V (ratiometric)
Realtime clock	without clock at -20-65 °C
Width	72 mm
Local signalling	without
Number of port	1, 1 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP), 1 Ethernet - RJ45 (Modbus TCP and BACnet IP with webserver), 1 CAN port - screw terminal block
Net weight	0.19 kg
Mounting support	panel mounting with accessory, DIN rail
Power consumption in W	15 W at 20...38 V DC, 24 VA at 24 V AC
Environment
IP degree of protection	IP20
Relative humidity	10-90 % non-condensing
Ambient air temperature for storage	-20-85 °C
Ambient air temperature for operation	-20-65 °C conforming to UL 60730-1
Pollution degree	2
Standards	EN/IEC 60730
Product certifications	EAC, CE, cURus, RCM, CSA
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	13.000 cm
Package 1 Width	9.100 cm
Package 1 Length	18.500 cm
Package 1 Weight	308.000 g
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	2.129 kg
