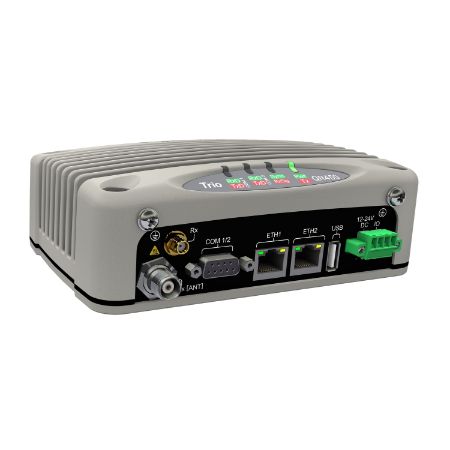

Picture of Remote radio, Trio Licensed Radios, H band, half duplex, ETSI
SKU:

TBURQR4HH-E00E2L00

Remote radio, Trio Licensed Radios, H band, half duplex, ETSI

Old price: $3,284.60 INC GST
$3,120.37 INC GST
Available for Shipping : 16-Dec-2025
Remote radio, Trio Licensed Radios, H band, half duplex, ETSI
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Radio power 40.0 dBm
Network frequency 450...518 MHz (H-Band)
Product or component type remote radio
Transmission rate 25.0 kHz at < = 120 kbit/s,  12.5 kHz at < = 60 kbit/s
Power range 4.4 W: receive, 52 W: transmit
Range of product Trio Licensed Radios
Complementary
Width 56.0 mm
Cybersecurity certificate based authentication, RADIUS based user authentication
Communication gateway Modbus gateway
Encryption protocol AES-GCM, AES 256
Ethernet service VLAN
Communication port protocol SSH, Telnet, HTTPS, HTTP, ICMP, SNMP v2, SNMP v1, SNMP v3, UDP (User Datagram Protocol), TCP (Transmission Control Protocol)
Function available diagnostic with Telnet/SSH, diagnostic via web server, remote configuration with Telnet/SSH, configuration via web server, QoS-based automatic RF speed Selection
Integrated connection type antenna, SMA socket, antenna, TNC socket, USB port, USB type A, 2 serial port, DE-9 RS232/RS485, 300...115200 bps, Ethernet port, 2 RJ45, 10/100 Mbps
Input voltage 10...30 V DC
Forward error correction dynamic truncated interleaved BCH encoding
Net weight 0.95 kg
Length 115.0 mm
Operating mode layer-3 IP router mode, layer-2 ethernet bridge mode
Channel access management token grant channel management
Exchange mode simplex, half duplex
Connector type power supply and digital input/output: 1.0 x screw terminal (4.0 poles)
Communication service time stamped events management, TCP/UDP serial server, SNMP client/server, NTP client/server, Robust Header Compression, Quality of Service (QoS), NAT router
Mounting support direct mounting, DIN rail
Modulation Technique 64-QAM, 16-QAM, O-QPSK
Height 164.0 mm
Environment
IP degree of protection IP51
Housing material die cast aluminium
Relative humidity 5-95 % 40 °C
Ambient air temperature for storage -40-85 °C
Standards CSA C22.2 No 213 Class I Division 2 Group D, CSA C22.2 No 213 Class I Division 2 Group C, CSA C22.2 No 213 Class I Division 2 Group B, CSA C22.2 No 213 Class I Division 2 Group A, IEC 60950, IEC 61850-3, IEEE 1613, AS/NZS 60950-1, AS/NZS 4295, RSS GEN, RSS 119, RSS 102, FCC CFR 47 part 2, FCC CFR 47 part 90, FCC CFR 47 part 15, EN 300 019-3, EN 300 019-2, EN 50383, EN 50385, EN 60950, ETSI EN 301 489, ETSI EN 302 561, ETSI EN 300 113
Ambient air temperature for operation -40-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.3 cm
Package 1 Width 16.1 cm
Package 1 Length 22.5 cm
Package 1 Weight 0.226 kg
