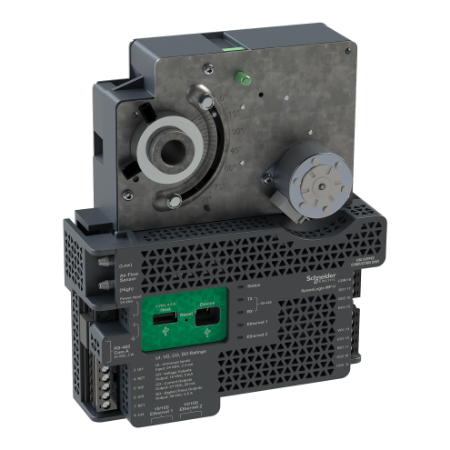

Picture of Controller, SpaceLogic IP, MP-V, BACnet/IP, 9 points, 4 universal inputs, 3 digital Triac outputs, 2 analog outputs
SKU:

SXWMPV9AX10001

Controller, SpaceLogic IP, MP-V, BACnet/IP, 9 points, 4 universal inputs, 3 digital Triac outputs, 2 analog outputs

$1,535.04 EXCL GST
Availability: Please contact our sales team on 1300 724 622.
Controller, SpaceLogic IP, MP-V, BACnet/IP, 9 points, 4 universal inputs, 3 digital Triac outputs, 2 analog outputs
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
CAD
Product environmental
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
SpaceLogic MP-V controller is a multi-purpose, fully programmable, IP based field controller dedicated for VAV applications. MP-V integrates a controller, a damper actuator, and an air flow sensor in a single compact package for ease of installation. The MP-V-9A has 4 universal inputs, 3 digital triac outputs and 2 analog outputs with integrated actuator & flow sensor. Its dimensions are 198 mm (7.8 in.) in height, 161 mm (6.3 in.) in width and 63 mm (2.5 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be installed directly over the damper shaft of the VAV box. Available spare parts are terminal blocks (SXWMPVCON10001), Adapter for damper shaft (AM-135), eCommission Bluetooth Adapter (SXWBTAECXX10001).

Products specifications

Attribute name Attribute value
Main
Maximum number of I/O expansion module 3
Number of port 1 , connector type: USB device port Mini-B, 1 , connector type: USB type A female, 2 , connector type: RJ45
IP degree of protection IP20
Device short name MP-V-9A
Device application variable air volume
Clock drift +/- 1 min/month
Width 161 mm
Input voltage -0.5...24 V DC for universal input
Output current 0.5 A max triac output, 0...20 mA analog output
Power consumption in VA 22 VA
Ambient air temperature for storage -40-70 °C
Mounting mode damper shaft mount
Memory type 128 MB RAM, 32 MB flash, 123 kB backup
Function available smart sensor input, programmable, integrated air flow sensor, integrated actuator
Topology Rapid Spanning Tree Protocol (RSTP), daisy chain, star
Height 198 mm
Depth 63 mm
Number of inputs 4 universal input
Product or component type field controller
Protection type internal fuse, MOV suppression
Number of outputs 2 analog output, 3 triac output
Torque value 6 lbf.in
Communication port support ETHERNET 10/100BASE-TX
[Us] rated supply voltage 24 V AC +/- 20 %
Network frequency 60 Hz, 50 Hz
Product certifications UL listed, cUL listed, CE, RCM
Complementary
Flame retardance UL94-5V
Backup time 7 days
Communication port protocol BACnet IP
Range compatibility SpaceLogic IP controller
Standards FCC part 15 Subpart B class B, EN 50491-5-2, EN 61000-6-3, UL 2043, EN 50491-3, EN 60730-2-11, EN 60730-1, EN 50491-5-3, EN 61000-6-2, ICES-003, UL 916
Output voltage 24 V AC for triac output, 0...10 V DC for analog output
Model MP-V-9A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.3 cm
Package 1 Width 19.4 cm
Package 1 Length 21.1 cm
Package 1 Weight 1.261 kg
