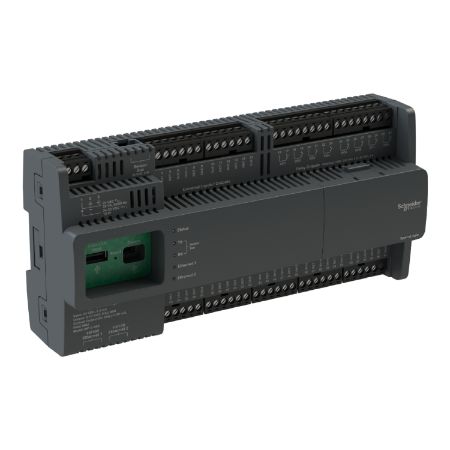

Picture of Controller, SpaceLogic IP, MP-C, BACnet/IP, 36 points, 8 universal input/output Type Uc, 8 Form A relay outputs, 20 universal input/output Type Ub
SKU:

SXWMPC36A10001

Controller, SpaceLogic IP, MP-C, BACnet/IP, 36 points, 8 universal input/output Type Uc, 8 Form A relay outputs, 20 universal input/output Type Ub

$6,737.95 INC GST
Available for Shipping : 20-Jan-2025
SpaceLogic IP Controller
  • Model: MP-C
  • Protocol: BACnet/IP
  • Total Points: 36
  • 8 Universal Inputs/Outputs (Type Uc)
  • 8 Form A Relay Outputs
  • 20 Universal Inputs/Outputs (Type Ub)
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Declaration of conformity
End of life manual
CAD
Instruction sheet
Product Page Link
Product Data Sheet

The SpaceLogic MP-C Controller (SXWMPC36A10001) is a versatile and programmable field controller. It is IP-based and designed for HVAC control in plant rooms. This controller supports a wide range of applications with its flexible I/O point configuration. It can work as a standalone BACnet/IP controller or as part of an EcoStruxure Building Management System (BMS). It integrates easily with SpaceLogic AS-P or AS-B servers or an Enterprise Server.

An optional display is available for convenient monitoring and control of inputs and outputs. The MP-C-36A model includes 20 Universal I/O Type Ub, 8 Universal I/O Type Uc, and 8 Form A Relay I/O points. It also supports SpaceLogic IP-IO Expansion Modules for additional capacity. The device measures 110 mm x 243 mm x 64 mm. It is UL 916 listed for energy management equipment in the U.S. and Canada.

The controller can be mounted on a DIN rail or any flat surface inside a cabinet. Spare parts, such as terminal blocks, DIN rail clips, and a Bluetooth adapter, are available for maintenance and extended functionality.

Products specifications

Attribute name Attribute value
Main
Maximum number of I/O expansion module 3
Number of port 1 , connector type: USB device port Mini-B, 1 , connector type: USB type A female, 2 , connector type: RJ45
IP degree of protection IP20
Device short name MP-C-36A
Device application air flow control, low voltage rooftop
Clock drift +/- 1 min/month
Width 234 mm
Input voltage -0.5...24 V DC for universal input
Power consumption in VA 33 VA
Ambient air temperature for storage -40-70 °C
Mounting mode panel-mounted, DIN rail mount
Memory type 128 MB RAM, 32 MB flash, 123 kB backup
Function available smart sensor input, programmable
Topology Rapid Spanning Tree Protocol (RSTP), daisy chain, star
Depth 64 mm
Input/output type 8 universal I/O, 20 universal I/O
Product or component type field controller
Protection type internal fuse, MOV suppression
Power consumption in W 18 W
Number of outputs 8 form A relay output
Communication port support ETHERNET 10/100BASE-TX
[Us] rated supply voltage 21...33 V DC, 24...30 V DC, 24 V AC +/- 20 %
Network frequency 60 Hz, 50 Hz
Product certifications UL listed, cUL listed, CE, RCM
Complementary
Flame retardance UL94-5V
Backup time 7 days
Communication port protocol BACnet IP
Range compatibility SpaceLogic IP controller
Standards FCC part 15 Subpart B class B, EN 50491-5-2, EN 61000-6-3, EN 50491-3, EN 60730-2-11, EN 60730-1, EN 50491-5-3, EN 61000-6-2, ICES-003, UL 916
Output voltage -0.5...24 V DC for universal output, 30 V DC,2 A for form A relay output, 250 V AC,2 A for form A relay output
Model MP-C-36A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 12.4 cm
Package 1 Length 23.8 cm
Package 1 Weight 611.0 g
