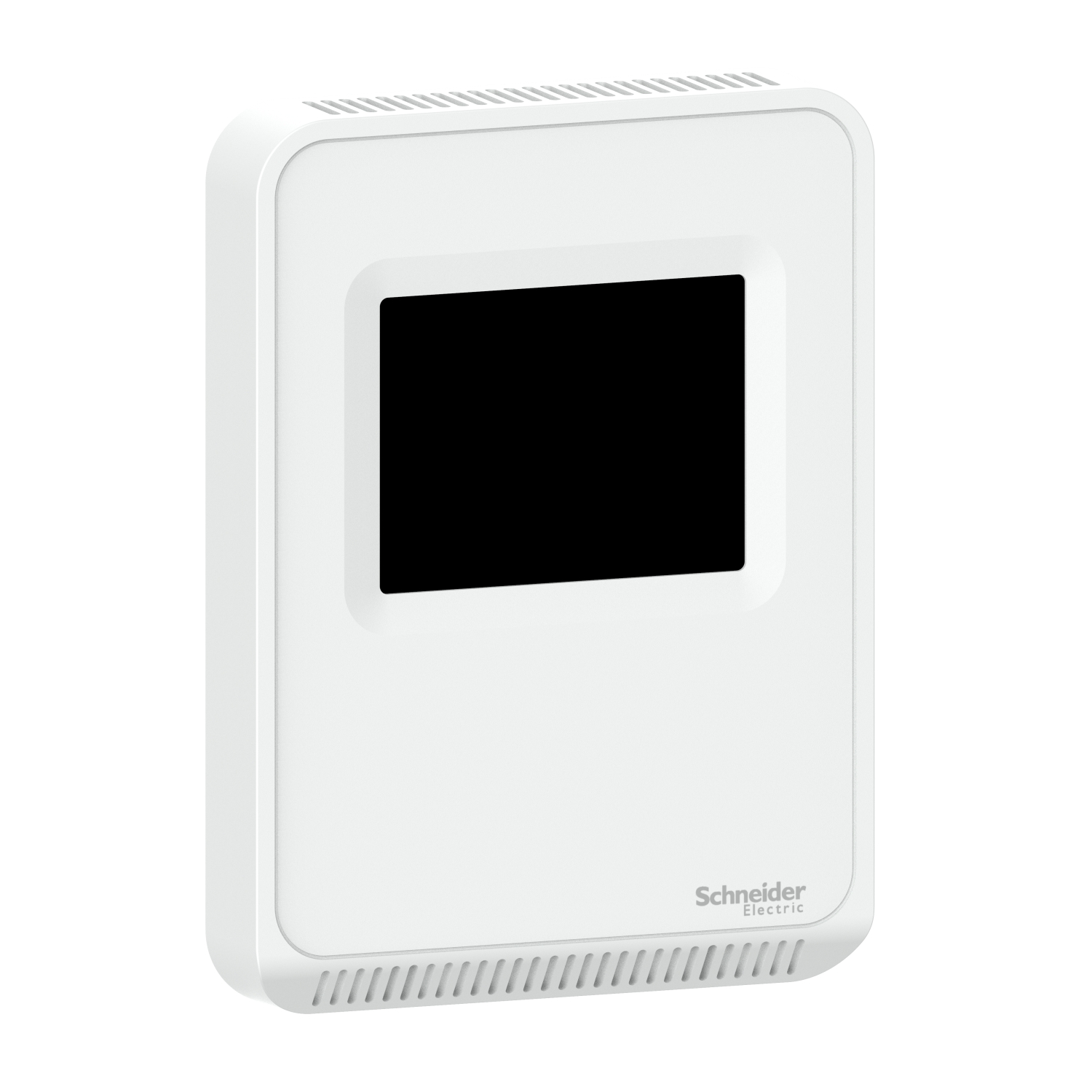

Picture of Cover Plate for Sensor Base for SmartX IP Controllers Color Touchscreen - Sensor Base not included
SKU:

SXWSCDXSELXX

Cover Plate for Sensor Base for SmartX IP Controllers Color Touchscreen - Sensor Base not included

$247.20 INC GST
Available for Shipping : 28-Jan-2025
Cover Plate for Sensor Base for SmartX IP Controllers Color Touchscreen - Sensor Base not included
  • Designed to fit the Sensor Base of SmartX IP Controllers.
  • Compatible with color touchscreen models.
  • Sensor Base is not included and must be purchased separately.
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalogue
Instruction sheet
Product environmental
End of life manual
User guide
Product Page Link
Product Data Sheet

SmartX sensors are a series of sensors designed for living spaces, intended to work with SmartX IP controllers and the EcoStruxure Building Operation software interface. These sensors are connected via an RJ-45 sensor bus that delivers both power and communication to the SmartX IP controller.

The SmartX living space sensors are modular in design, consisting of two components:

(i) The sensor base

(ii) The cover

There are four different SmartX communicating sensor base models, each compatible with any of the modular SmartX covers. The SXWSCDXSELXX touchscreen cover shows information such as the current time, temperature, humidity level (if available), CO2 concentration (if available), and the status of heating, cooling, and Eco modes.

Users can adjust several settings through the touchscreen, including temperature setpoint, overrides, temperature scale, fan speed, and modes for heating and cooling. It also allows control of building environment features such as blinds (open, closed, or adjusted) and their angle. Parameters like setpoint, overrides, display timeout, and display lockout can be configured via the EcoStruxure Building Operation software.

Products specifications

Attribute name Attribute value
Main
IP degree of protection IP20
Device application fan speed controller, temperature control, HVAC
Depth 20 mm
Colour white
Display type colour touchscreen
Width 85 mm
Display size 2.4 inch
Flame retardance UL94-V0
Device presentation cover plate
Range SpaceLogic
Location living space
Product name SmartX Living Space Sensor
Product or component type cover
Display resolution 320 x 240 pixels
Surface finish matt
Product certifications ICES-003, EAC, RCM, CE conforming to EN 61000-6-3
Standards FCC part 15 class B, UL 916
Ambient air temperature for operation 0-50 °C
Height 115 mm
[Us] rated supply voltage 24 V DC
Complementary
Material ABS (acrylonitrile butadiene-styrene) GF10 FR
Control type tactile
Function available light control, blind control, setpoint adjustment, override switches
Connections - terminals bus terminal (back)
Supply base
Range compatibility EcoStruxure Building Operation SmartX Living Space Sensor base unit, EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 48 cm
Package 1 Width 97 cm
Package 1 Length 140 cm
Package 1 Weight 79 g
