SKU:

SX-KLCS-W

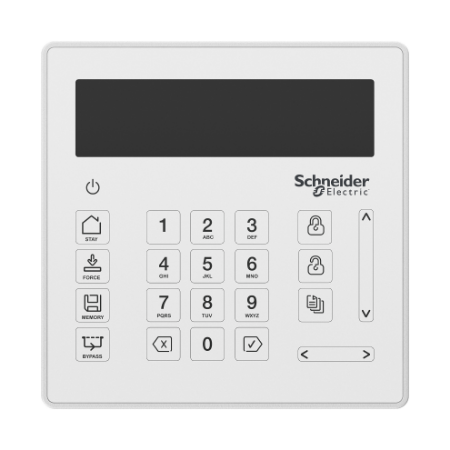

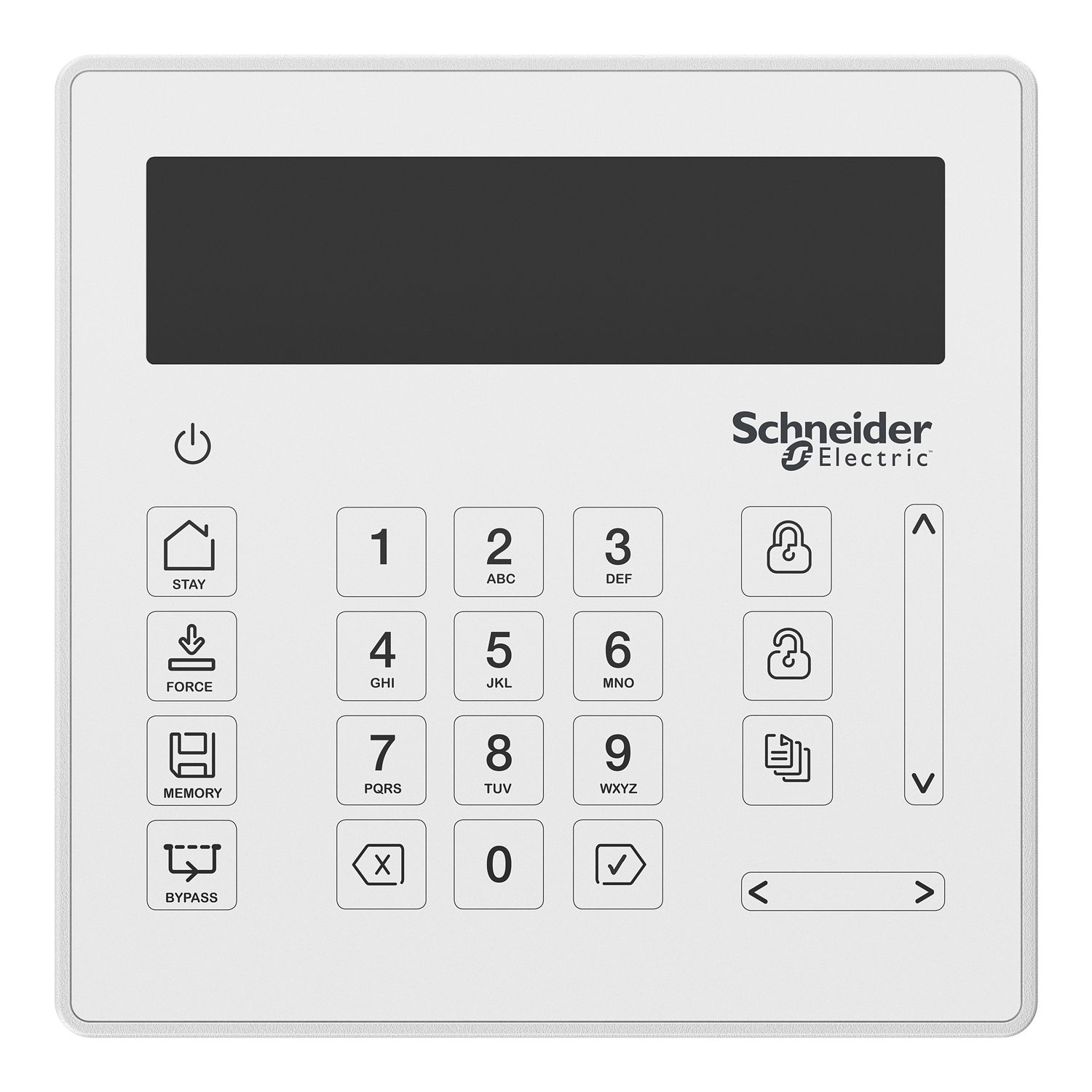

Security Expert touch sense LCD keypad, white

$1,348.80 INC GST

Qty:

Available for Shipping : 06-Feb-2025

Security Expert touch sense LCD keypad, white

Manufacturer: Schneider Electric

Declaration of conformity

Product Page Link

Product Data Sheet

Security Expert touch sense LCD keypad, white

Attribute name	Attribute value
Main
Device application	control
Control button type	4 for navigation touch button capacitive, 7 operation touch button capacitive, 12 numeric touch button capacitive
Range	EcoStruxure Security Expert
Product or component type	keypad
Colour tint	white
Product brand	Schneider Electric
Complementary
Device composition	set of resistors, keypad
Depth	18 mm
Width	125 mm
[Ue] rated operational voltage	11...14 V DC
[Ie] rated operational current	95 mA maximum, 60 mA in operation
Discrete input type	4 zone for duplex mode input, 2 zone for standard input
Local signalling	buzzer, green LED, disarmed front face, red LED, armed front face, LED, status front face
Net weight	318 g
Display type	backlit LCD: 2 lines of 16 characters
Discrete output type	1 open collector (50 mA), 4 configurable for signaling
Height	125 mm
Environment
Relative humidity	0-93 % non-condensing
Ambient air temperature for storage	-10-85 °C
Ambient air temperature for operation	0-49 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	15.8 cm
Package 1 Width	15.5 cm
Package 1 Length	3.8 cm
Package 1 Weight	250.0 g
